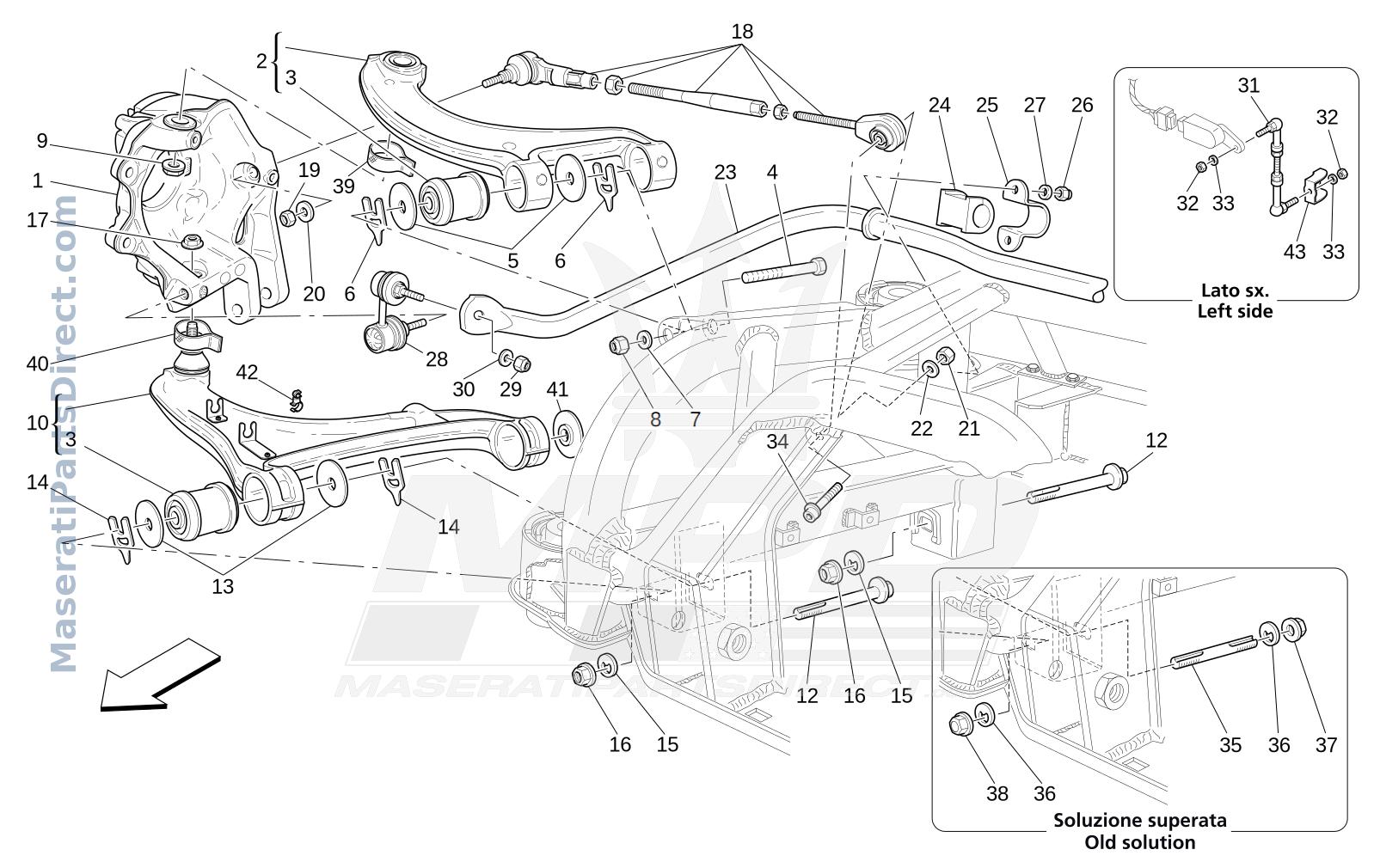

06.20 - 1 - REAR SUSPENSION

Select a part from the list to view details

Part Number:	-
Part Position:	-
Remarks:	-
Market:	-
Valid Assembly Range:	-
Valid Frame Range:	-
Valid Engine Range:	-
Valid Gearbox Range:	-
Includes:	-
Replaced By:	-
Camera Image:	-
PDF Link:	-
3D Model Link:	-

Select a part from the list to view dimensions

Length (cm):	-
Width (cm):	-
Height (cm):	-
Weight (kg):	-

Length (in):	-
Width (in):	-
Height (lbs):	-
Weight (lbm):	-

Select a part from the list to view fitment information

Parts List

Ref	Part Number	Description	Price
0	980139918	LH REAR SUSPENSION KIT	$2,886.07 Order
0	980139916	RH REAR SUSPENSION KIT	$2,890.53 Order
1	-	LH REAR HUB HOLDER ASSEMBLYCode is not available separately, order code complete suspension kit	$0.00 Order
1	-	RH REAR HUB HOLDER ASSEMBLYCode is not available separately, order code complete suspension kit	$0.00 Order
2	-	COMPLETE L.H. REAR UPPER LEVERCode is not available separately, order code complete suspension kit	$0.00 Order
2	-	COMPLETE R.H. REAR UPPER LEVERCode is not available separately, order code complete suspension kit	$0.00 Order
3	980139890	REAR SUSPENSION BUSHING KIT	$568.37 Order
4	15541334	SCREW	$20.76 Order
5	194444	WASHER	$11.15 Order
6	198043	SPACER	$16.17 Order
6	198044	SPACER	$15.89 Order
6	198045	SPACER	$16.45 Order
6	198046	SPACER	$10.14 Order
6	198047	SPACER	$10.14 Order
7	14496721	WASHER	$6.21 Order
8	102825	NUT	$11.52 Order
9	245240	NUT	$30.83 Order
10	-	COMPLETE L.H. FRONT REAR LEVERCode is not available separately, order code complete suspension kit	$0.00 Order
10	-	COMPLETE R.H. REAR LOWER LEVERCode is not available separately, order code complete suspension kit	$0.00 Order
12	260766	ECCENTRIC SCREW	$97.06 Order
13	194445	WASHER	$10.76 Order
14	198038	SPACER	$15.89 Order
14	198039	SPACER	$15.37 Order
14	198040	SPACER	$15.09 In Stock
14	198041	SPACER	$13.58 Order
14	198042	SPACER	$16.70 In Stock
14	295191	SPACER	$13.88 Order
15	240877	WASHER	$15.65 Order
16	203795	NUT	$12.41 In Stock
17	245240	NUT	$30.83 Order
17	247308	NUT FOR SUSPENSION LEVER ADJUSTING	$39.45 Order
18	276636	TIE-ROD FOR TOE-IN ADJUSTMENT	$966.07 Order
19	203657	NUT	$11.10 Order
20	12626224	WASHER	$7.65 Order
21	203657	NUT	$11.10 Order
22	12626224	WASHER	$7.65 Order
23	255211	REAR STABILIZER BAR	$525.53 Order
24	244021	BAR BUFFER	$50.83 Order
25	191221	PAD FASTENING PLATE	$88.01 Order
26	104030	NUT	$10.40 Order
27	14496524	WASHERD. 8.40-17 X1.6	$6.93 Order
28	259572	BALL TIE ROD	$156.46 $132.99 In Stock
28	259573	BALL TIE ROD	$147.07 Order
29	102742	NUT	$9.84 Order
30	12601474	WASHERD.10,50-21X 1,0	$6.21 Order
31	228958	TIE ROD FOR LIGHT ADJUSTING POTENTIOMETER	$149.38 Order
32	102741	NUT	$7.65 Order
33	14498824	WASHERD.6.4-16.3X1	$9.20 Order
34	205608	SCREW	$72.19 Order
35	204008	STUD	$149.40 Order
36	240877	WASHER	$15.65 Order
37	203795	NUT	$12.41 In Stock
38	204010	NUT	$21.48 Order
39	386600416	JOINT PROTECTION	$21.52 Order
40	386600416	JOINT PROTECTION	$21.52 Order
41	222203	SPACER	$52.60 Order
42	150738	CLIP	$11.52 Order
43	231274	BRACKET	$36.88 Order
