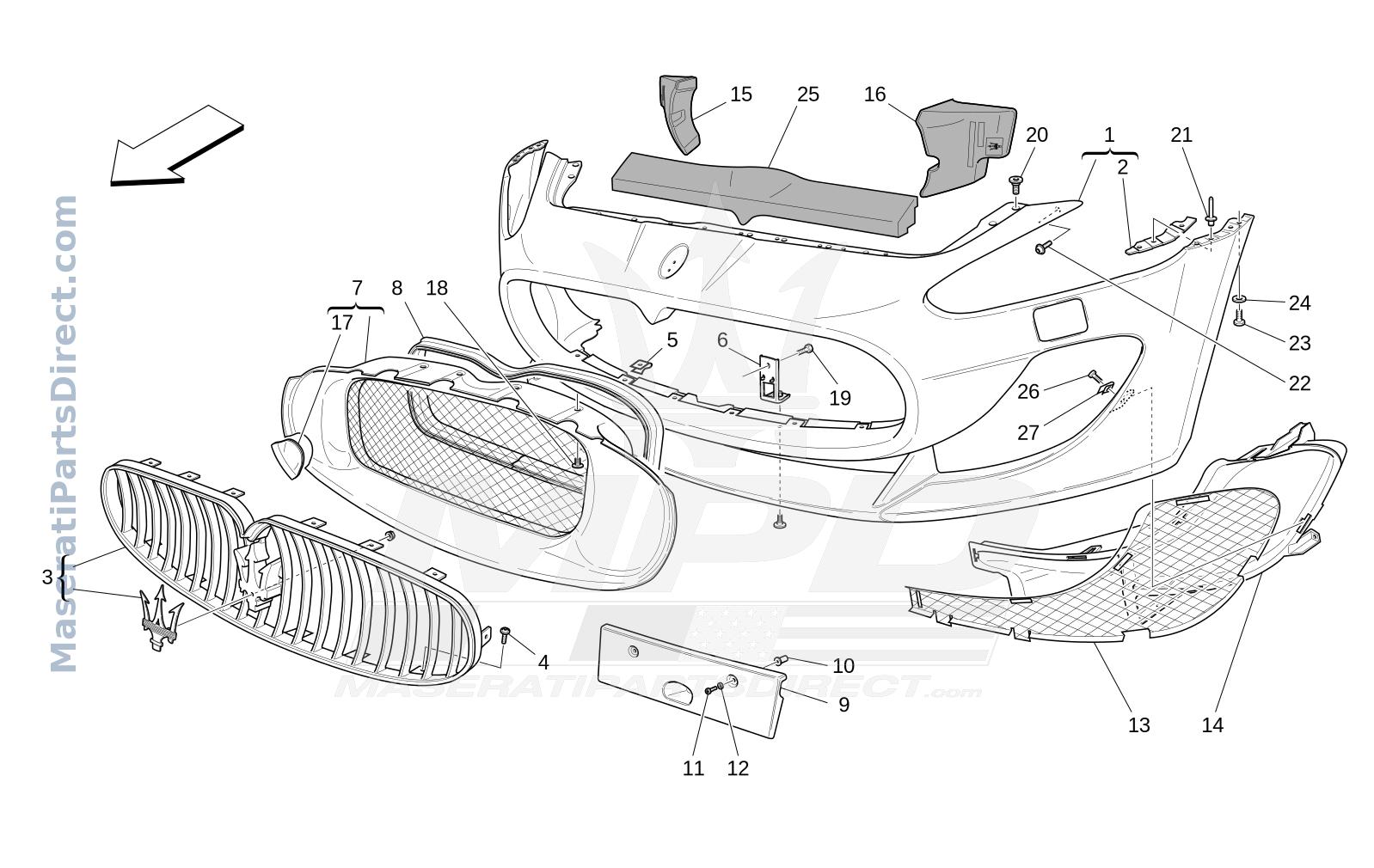

09.10 - 1 - FRONT BUMPER

Select a part from the list to view details

Select a part from the list to view dimensions

Select a part from the list to view fitment information

Parts List

Ref	Part Number	Description	Price
1	980145369	COMPLETE FRONT BUMPER	$5,379.87 Order
2	80252500	LH BRACKET	$291.37 Order
2	80252400	RH BRACKET	$291.37 Order
3	81131500	FRONT GRILLE ASSEMBLY	$1,091.26 Order
3	85110700	FRONT GRILLE ASSEMBLY	$1,371.42 Order
4	81145000	SCREWM 5	$87.40 Order
4	83093600	SCREWM 5	$23.90 Order
5	67278400	BRACKET	$9.73 Order
6	83534900	BRACKET	$125.96 Order
7	80305200	AIR DUCT	$930.07 Order
8	80059800	GASKET	$386.40 Order
9	84614200	FRONT LICENSE PLATE HOLDER	$109.14 Order
10	66412700	BUSHING	$11.55 Order
11	13274377	SCREWTCIC PZ M 5X 18	$8.00 Order
12	12637807	WASHERD 5.15-11X1	$8.28 Order
13	83534700	LH FRONT GRILL	$429.09 Order
13	83534800	RH FRONT GRILL	$392.38 Order
14	83615600	LH FRONT BRAKE AIR DUCT	$170.63 Order
14	83615500	RH FRONT BRAKE AIR DUCT	$178.33 Order
15	80305000	FRONT BUMPER RIGHT SIDE SHOCK ABSORBER	$83.97 Order
16	80305100	FRONT BUMPER LEFT SIDE SHOCK ABSORBER	$83.97 Order
17	80791400	TOW HOOK PLUG	$91.56 Order
18	51810310	SCREW	$11.72 Order
19	16286024	SCREWM 6X 16	$11.10 Order
20	51810310	SCREW	$11.72 Order
21	14642791	RIVET	$9.84 Order
22	69089100	SCREWM 5	$12.11 Order
23	10902524	SCREWTE M 6X 22	$6.21 Order
24	12643724	WASHERD 6,15-18X 1,5	$6.21 Order
25	80055900	UPPER CENTRAL FRONT BUMPER SHOCK ABSORBER	$92.28 Order
26	297883	SCREW	$11.85 Order
27	14372171	BRACKET	$7.65 Order
