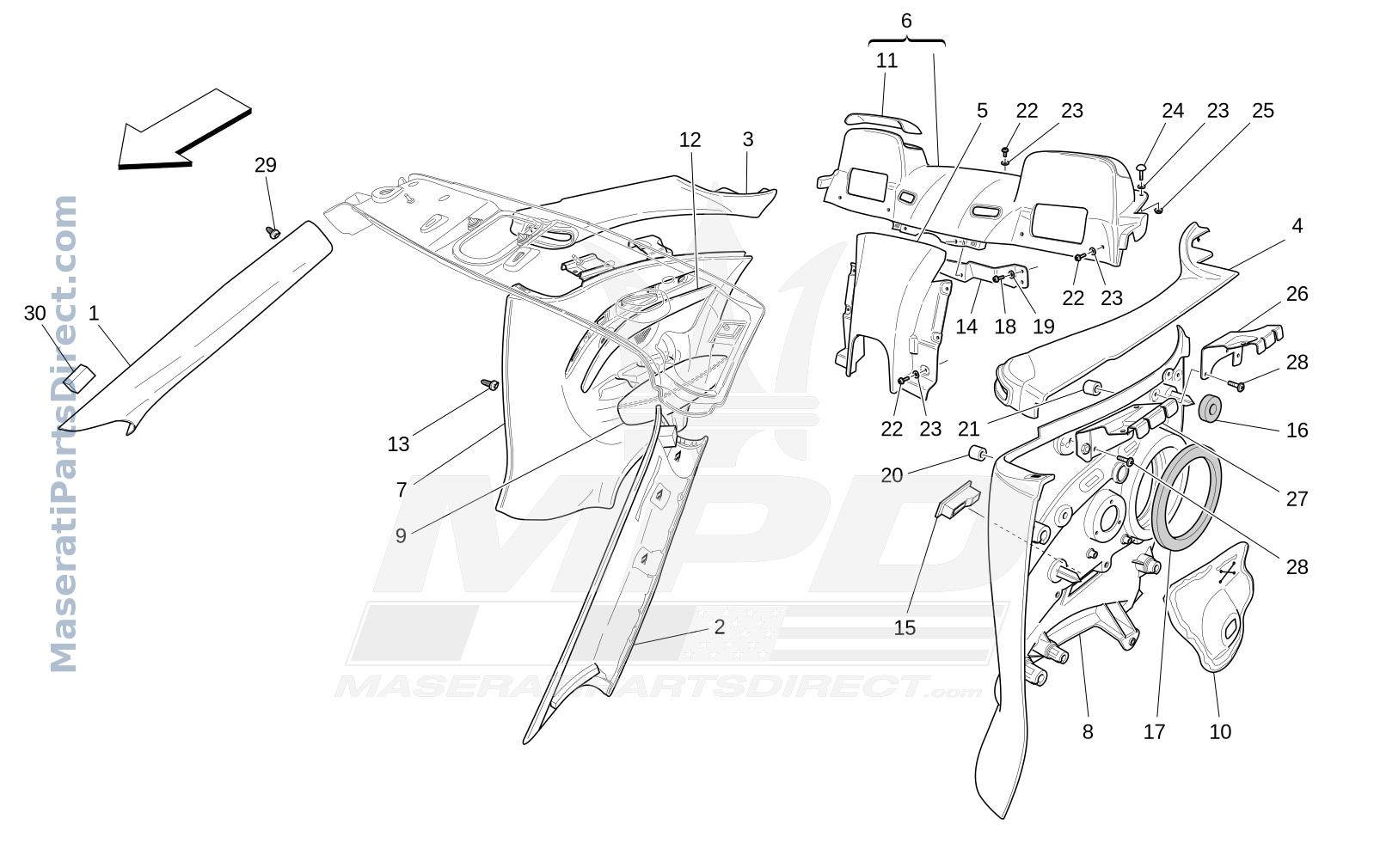

09.44 - 1 - PASSENGER COMPARTMENT B PILLAR TRIM PANELS AND SIDE PANELS

Select a part from the list to view details

Part Number:	-
Part Position:	-
Remarks:	-
Market:	-
Valid Assembly Range:	-
Valid Frame Range:	-
Valid Engine Range:	-
Valid Gearbox Range:	-
Includes:	-
Replaced By:	-
Camera Image:	-
PDF Link:	-
3D Model Link:	-

Select a part from the list to view dimensions

Length (cm):	-
Width (cm):	-
Height (cm):	-
Weight (kg):	-

Length (in):	-
Width (in):	-
Height (lbs):	-
Weight (lbm):	-

Select a part from the list to view fitment information

Parts List

Ref	Part Number	Description	Price
0	980139934	CARBALHO KIT	$6,669.06 Order
0	980139938	MOONWOOD KIT	$6,665.73 Order
1	815637..	COMPLETE R.H. FRONT POST COVERING	$0.00 Order
2	815638..	COMPLETE L.H. FRONT POST COVERING	$0.00 Order
3	custom	COMPLETE R.H. UPPER MOLDING	$0.00 Order
4	custom	COMPLETE L.H. UPPER MOLDING	$0.00 Order
5	custom	REAR CENTRAL COVER	$0.00 Order
6	814318..	COMPLETE SEAT BACK UPPER MOULDING	$0.00 Order
7	96954....	COMPLETE RH. REAR LATERAL COVERING	$0.00 Order
7	815689..	COMPLETE RH. REAR LATERAL COVERING	$0.00 Order
7	815689..	COMPLETE RH. REAR LATERAL COVERING	$0.00 Order
8	custom	COMPLETE LH. REAR LATERAL COVERING	$0.00 Order
8	815690..	COMPLETE LH. REAR LATERAL COVERING	$0.00 Order
9	687073..	LH ARM-REST	$0.00 Order
9	835006..	LH ARM-REST	$0.00 Order
9	687072..	RH ARM-REST	$0.00 Order
9	835008..	RH ARM-REST	$0.00 Order
10	82215200	REAR LH WATER SHIELD	$76.35 Order
10	82215300	REAR RH WATER SHIELD	$72.92 Order
11	816412..	COMPLETE ROPS COVER DOOR	$0.00 Order
12	815721..	COMPLETE L.H. REAR MOULDING	$0.00 Order
12	815717..	COMPLETE L.H. REAR MOULDING	$0.00 Order
12	815720..	COMPLETE R.H. REAR MOULDING	$0.00 Order
12	815716..	COMPLETE R.H. REAR MOULDING	$0.00 Order
12	815760..	LH REAR MOULDING	$0.00 Order
12	841654..	LH REAR MOULDING	$0.00 Order
12	815759..	RH REAR MOULDING	$0.00 Order
12	841653..	RH REAR MOULDING	$0.00 Order
13	980145155	PIN	$14.00 Order
14	81698700	BRACKET	$49.49 Order
15	248564	REAR DOME LIGHT	$27.09 Order
16	980145342	GASKET	$41.83 Order
17	980145343	GASKET	$44.69 Order
18	68176300	SCREWM5X12	$8.00 Order
19	13577701	WASHER	$9.20 Order
20	81570100	BUSHING	$82.32 Order
21	82350100	REAR BUSHING	$115.38 Order
22	68176400	SCREW	$11.52 Order
22	68176500	SCREW	$11.52 Order
23	13577701	WASHER	$9.20 Order
24	83123500	PAD	$17.78 Order
25	14059117	NUT	$10.14 Order
26	81570300	LH REAR BRACKET	$78.89 Order
26	81584800	RH REAR BRACKET	$78.89 Order
27	81570500	LH FRONT BRACKET	$78.89 Order
27	81570400	RH FRONT BRACKET	$78.89 Order
28	68176200	SCREW	$10.80 Order
29	80799100	PIN	$9.20 Order
30	67710400	SPACER	$11.55 Order
