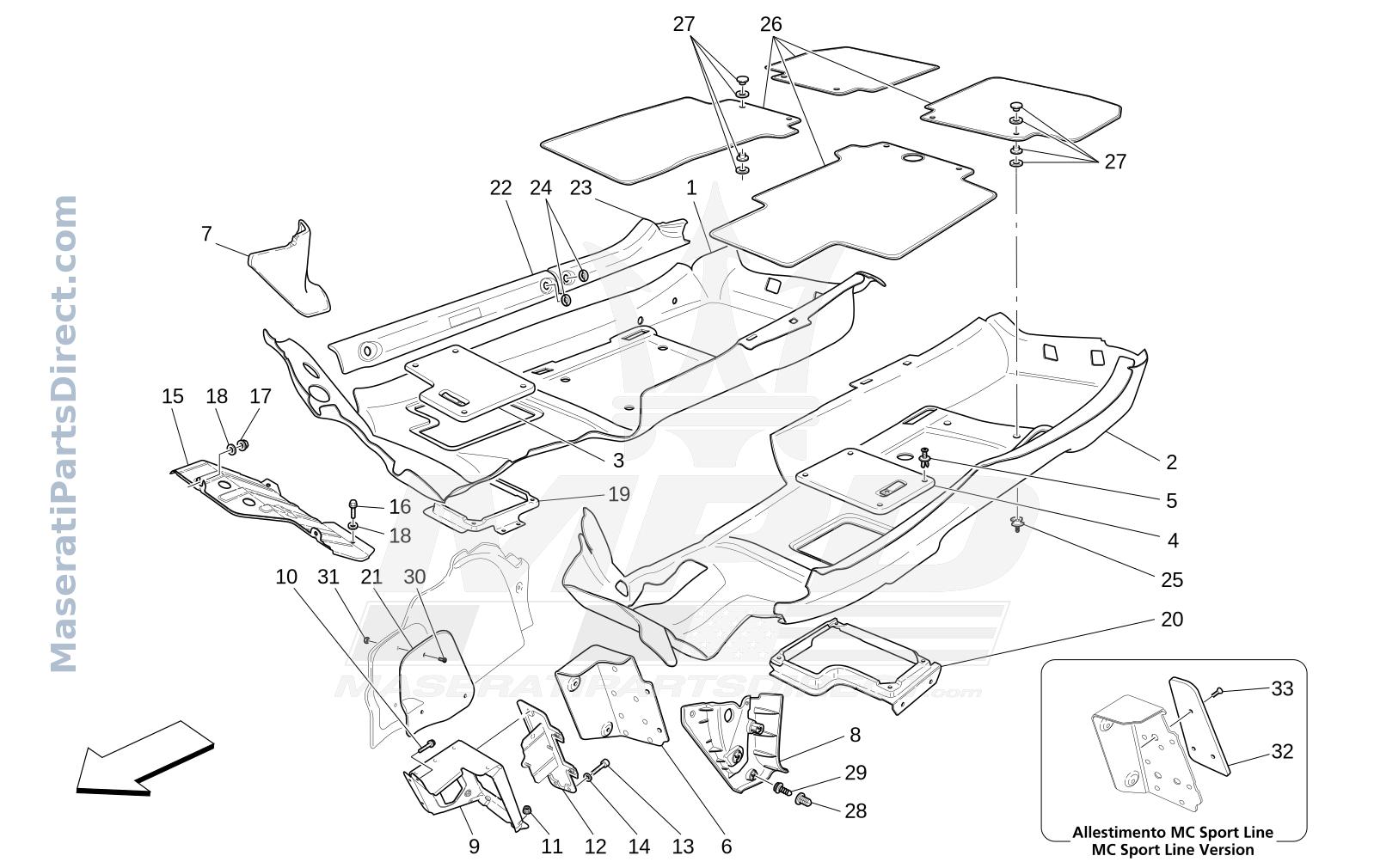

09.60 - 1 - PASSENGER COMPARTMENT MATS

Select a part from the list to view details

Select a part from the list to view dimensions

Select a part from the list to view fitment information

Parts List

Ref	Part Number	Description	Price
1	815733..	RH CARPET	$0.00 Order
2	815734..	LH CARPET	$0.00 Order
3	821720..	CONTROL UNIT INSPECTION DOOR	$0.00 Order
4	821717..	CONTROL UNIT INSPECTION DOOR	$0.00 Order
5	68808600	FASTENER BUTTON	$9.72 Order
6	custom	FOOT REST LINING	$0.00 Order
7	820607..	COMPLETE R.H. FRONT POST COVERING LOWER MOULDING	$0.00 Order
8	820606..	COMPLETE L.H. FRONT POST COVERING LOWER MOULDING	$0.00 Order
9	67076300	DRIVER SIDE FOOTREST	$77.55 Order
10	11625624	SCREW	$11.52 Order
11	14039614	NUTM 6	$5.13 Order
12	custom	DRIVER FOOTREST COVER	$0.00 Order
13	13026924	SCREW	$11.52 Order
14	13550201	WASHER	$11.55 Order
15	67267900	PASSENGER FOOTREST	$141.48 In Stock
16	11612424	SCREWTE M 6X16	$10.80 Order
17	14039614	NUTM 6	$5.13 Order
18	12643724	WASHERD 6,15-18X 1,5	$6.21 Order
19	82423600	RH BRACKET FOR INSPECTION SHIELD	$169.91 Order
20	82423700	LH BRACKET FOR INSPECTION SHIELD	$173.80 Order
21	67312200	PROTECTION PLATE	$854.79 Order
22	82133700	LH FRONT PADDING	$26.25 Order
22	82133800	RH FRONT PADDING	$26.25 Order
23	81736200	LH REAR PADDING	$77.81 Order
23	81736300	RH REAR PADDING	$77.81 Order
24	67640300	FASTENER BUTTON	$9.84 Order
25	67020900	BUTTON	$36.01 Order
26	custom	REMOVABLE CARPET KIT	$0.00 Order
27	980001999	REMOVABLE CARPET FIXING KIT	$78.35 Order
28	67874700	BUSHING	$9.20 Order
29	67874500	PIN	$8.28 In Stock
30	13297511	SCREW	$11.40 Order
31	12574011	NUT	$8.64 Order
32	82084000	DRIVER SIDE FOOTREST	$208.69 Order
33	14441324	SCREW	$9.20 Order
