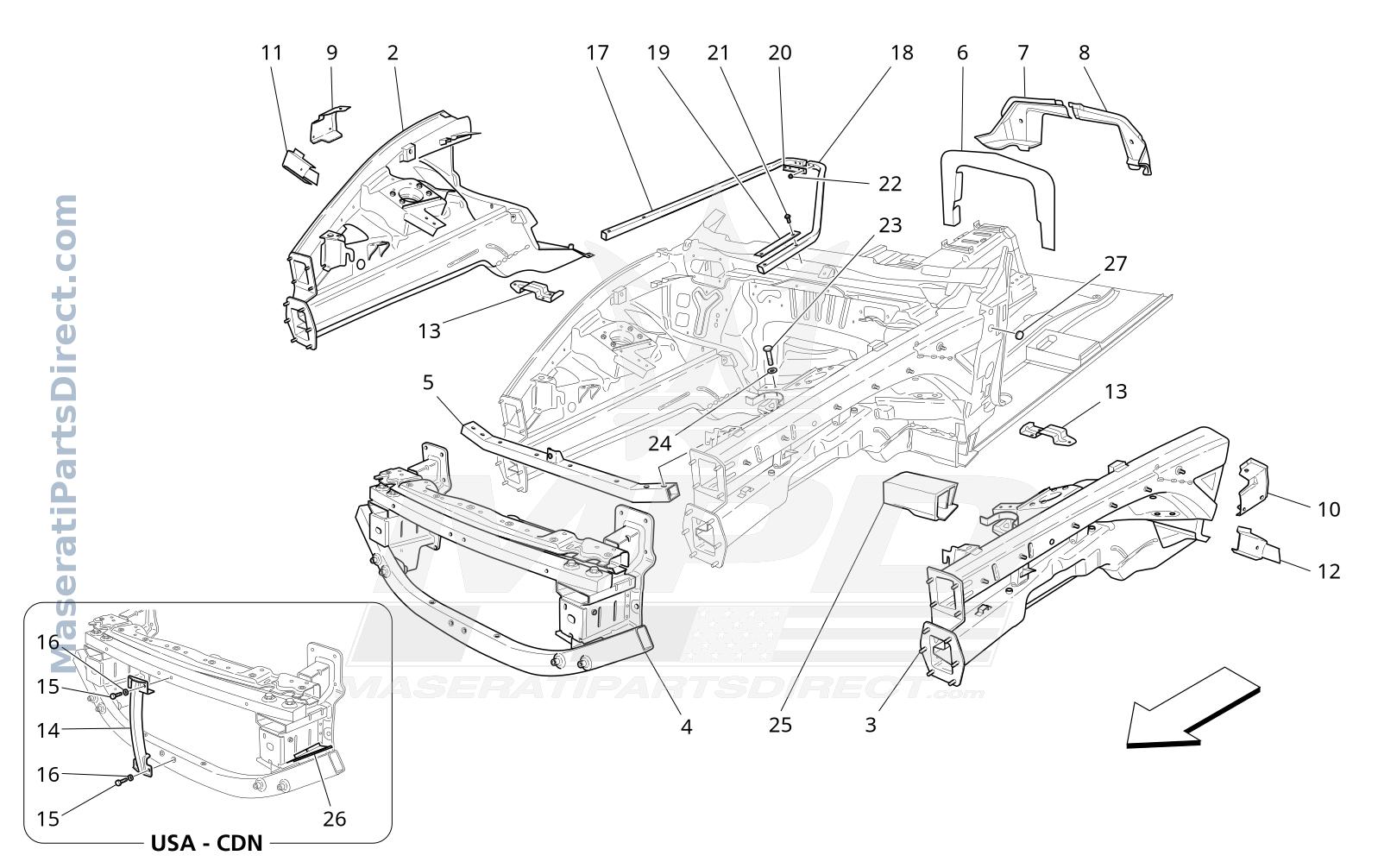

09.03 - 1 - FRONT STRUCTURAL FRAMES AND SHEET PANELS

Select a part from the list to view details

Select a part from the list to view dimensions

Select a part from the list to view fitment information

Parts List

Ref	Part Number	Description	Price
2	82702100	RH COMPLETE FRONT STRUT	$6,605.29 Order
3	82702200	LH COMPLETE FRONT STRUT	$6,605.29 Order
4	80001900	FRONT BUMPER CROSS MEMBER	$3,999.26 Order
5	82063000	CROSS MEMBER	$367.07 Order
6	66560000	CENTRAL CROSS MEMBER CARPET SHIELD	$169.42 Order
7	67300800	RH CROSS MEMBER	$306.27 Order
8	67300900	LH CROSS MEMBER	$302.81 Order
9	82639200	RH REINFORCEMENT STRUT	$2,838.53 Order
10	82216500	LH STRUT REINFORCEMENT	$2,838.53 Order
11	81799100	RH INSERT	$367.84 Order
12	81799000	LH INSERT	$420.00 Order
13	67989300	BRACKET	$87.75 Order
14	80423900	CROSS MEMBER CONNECTING ROD	$427.74 In Stock
15	16043524	SCREWTE M 8X 22	$3.85 Order
16	14496524	WASHERD. 8.40-17 X1.6	$6.93 Order
17	82063100	RH STRUT	$170.02 Order
18	82062900	LH STRUT	$196.66 Order
19	82122000	FRONT BRACKET	$47.20 Order
20	82122100	REAR BRACKET	$44.90 Order
21	14238621	SCREWTE M8X40	$11.52 Order
22	14059311	NUTM 8	$9.17 Order
23	11306934	SCREWTE M 10X1,25X 30	$10.40 Order
24	11190574	WASHERD.10.5-20X2.3	$8.64 Order
25	66828700	LH ANGLE BRACKET	$428.02 Order
25	66828600	RH ANGLE BRACKET	$428.02 Order
27	14507787	PLUG	$8.64 Order
