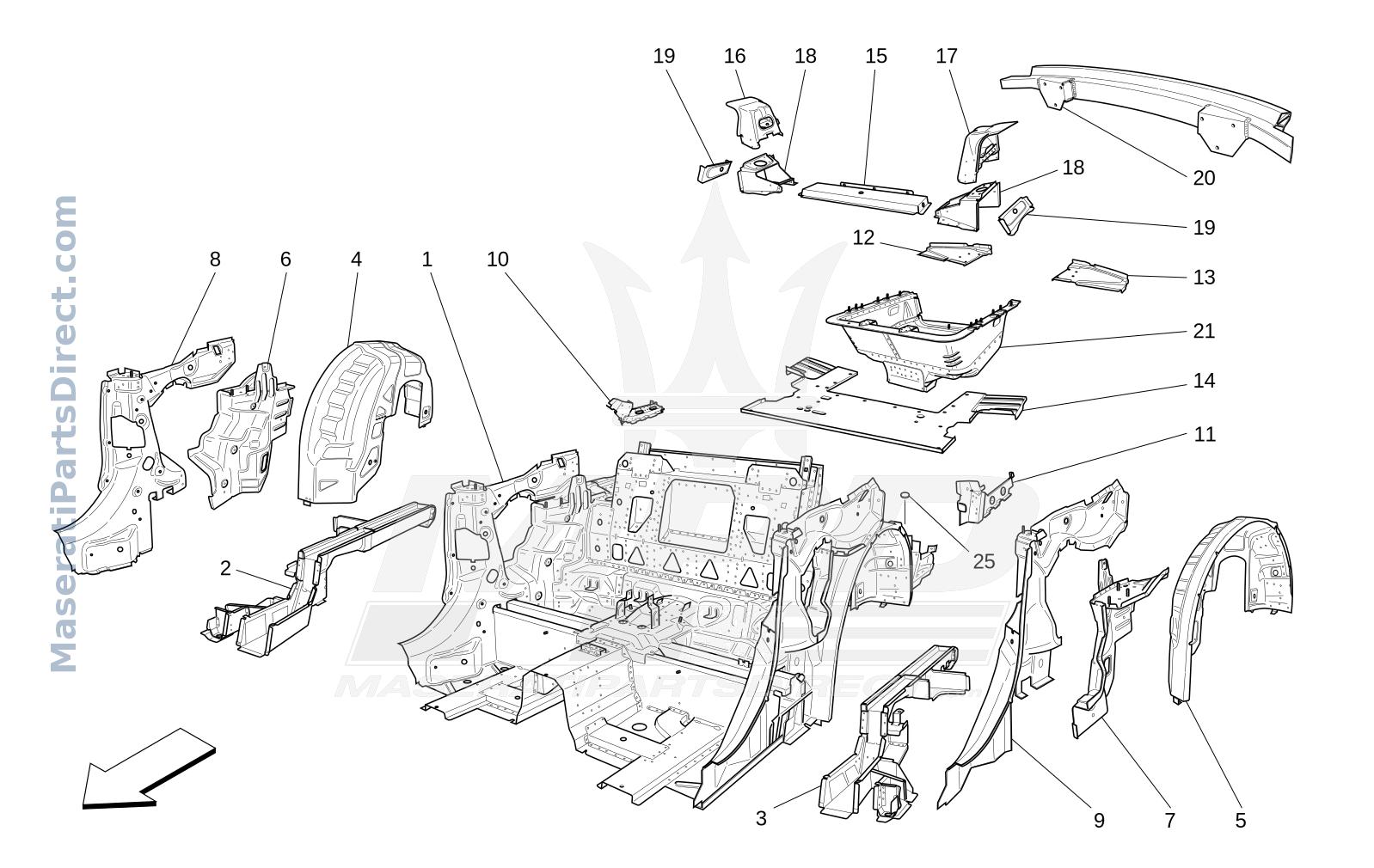

09.05 - 1 - REAR STRUCTURAL FRAMES AND SHEET PANELS

Select a part from the list to view details

Select a part from the list to view dimensions

Select a part from the list to view fitment information

Parts List

Ref	Part Number	Description	Price
1	81799900	REAR CHASSIS ASSEMBLY	$15,838.67 Order
2	82753800	COMPLETE RH LONGITUDINAL MEMBER	$6,273.88 Order
3	82753900	COMPLETE LH LONGITUDINAL MEMBER	$6,273.88 Order
4	82253600	RH REAR WHEELHOUSE	$1,093.20 Order
5	81795400	LH REAR WHEELHOUSE	$1,212.27 Order
6	82753300	COMPLETE R.H. WHEELHOUSE REINFORCEMENT	$1,709.57 Order
7	82758100	COMPLETE L.H. WHEELHOUSE REINFORCEMENT	$2,011.97 Order
8	82753600	COMPLETE R.H. PILLAR REINFORCEMENT	$873.15 Order
9	82753700	COMPLETE L.H. PILLAR REINFORCEMENT	$1,395.23 Order
10	82753400	COMPLETE R.H. REAR PILLAR	$764.88 Order
11	82753500	COMPLETE L.H. REAR PILLAR	$862.37 Order
12	66829800	REAR RH SECTION OF REAR FLOOR	$1,971.79 Order
13	66829900	REAR LH SECTION OF REAR FLOOR	$1,988.87 Order
14	81558800	FRONT SIDE REAR FLOOR	$2,578.07 Order
15	81478100	CROSS MEMBER	$634.56 Order
16	81442600	RH REAR REINFORCEMENT	$573.49 Order
17	81442700	LH REAR REINFORCEMENT	$615.66 Order
18	82754900	REAR PILLAR	$324.18 Order
19	80239200	REINFORCEMENT SEAL	$2,552.98 Order
20	80308900	CPL REAR BUMPER CROSS MEMBER	$1,619.35 Order
21	82043400	SPARE WHEEL COMPARTMENT	$3,321.52 Order
25	14507687	PLUG	$11.52 Order
