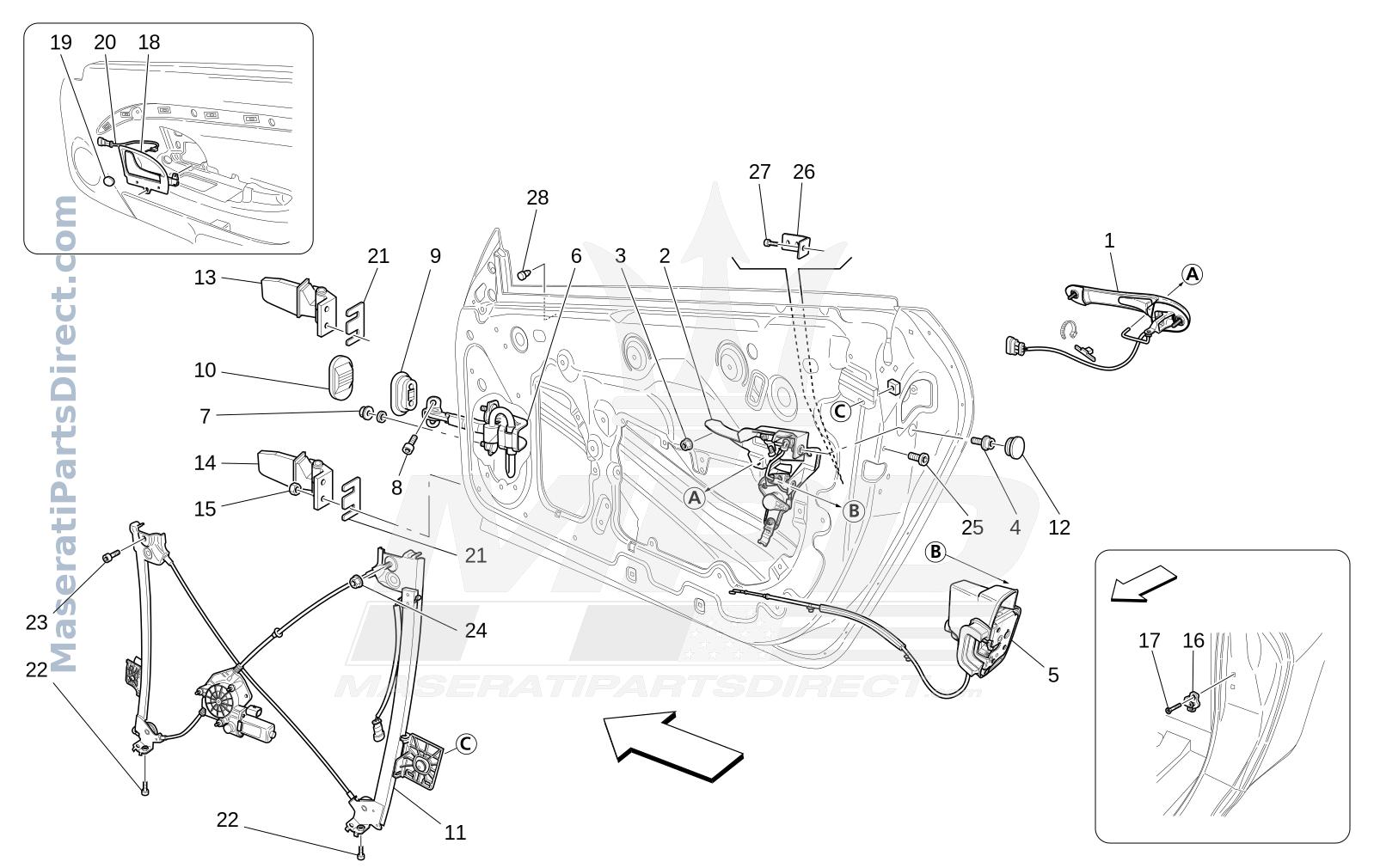

09.31 - 2 - FRONT DOORS: MECHANISMS

Select a part from the list to view details

Select a part from the list to view dimensions

Select a part from the list to view fitment information

Parts List

Ref	Part Number	Description	Price
1	980139630	LH DOOR EXTERNAL HANDLE	$460.28 Order
1	69287700	LH DOOR EXTERNAL HANDLE	$635.87 Order
1	82078600	LH DOOR EXTERNAL HANDLE	$877.38 Order
1	980139629	RH DOOR EXTERNAL HANDLE	$460.28 Order
1	69287600	RH DOOR EXTERNAL HANDLE	$618.79 Order
1	82078500	RH DOOR EXTERNAL HANDLE	$877.38 Order
2	82386000	LH OUTER HANDLE SUPPORT	$562.88 Order
2	80177300	RH OUTER HANDLE SUPPORT	$405.92 Order
3	14040514	NUTM5	$8.64 Order
4	46401657	SCREWM6X12	$9.20 Order
5	68893400	LH DOOR LOCK	$471.85 Order
5	68893300	RH DOOR LOCK	$185.66 Order
6	80174300	TIE ROD	$183.26 Order
7	14040614	NUT	$6.21 Order
8	80853100	SCREWM6	$11.10 Order
9	67575800	GASKET	$50.83 Order
10	67079000	GASKET	$34.92 Order
11	82094600	LH POWER WINDOW WINDER	$994.19 Order
11	82094500	RH POWER WINDOW WINDER	$540.79 Order
12	14506787	PLUG	$8.64 Order
13	67881000	LH UPPER HINGE	$331.77 Order
13	67880900	RH UPPER HINGE	$380.27 Order
14	66812500	LH LOWER HINGE	$254.95 Order
14	66812400	RH LOWER HINGE	$290.53 Order
15	15501025	NUT	$9.20 Order
16	85321500	STRIKER	$48.03 Order
17	67999500	SCREWM8	$19.53 Order
18	9816031..	COMPLETE L.H. HANDLE FOR DOOR OPENING	$0.00 Order
18	9816030..	COMPLETE R.H. HANDLE FOR DOOR OPENING	$0.00 Order
19	66939600	PLUG	$23.90 Order
20	234823	MICROSWITCH	$266.08 Order
21	67274900	PLATE	$46.68 Order
22	11567624	SCREWM6X14	$9.20 Order
23	11570524	SCREWTCEI M8X20	$15.65 Order
24	14039714	NUTM8	$9.20 Order
25	67077900	SCREW	$9.20 Order
26	82914500	BRACKET	$18.87 Order
27	11568027	SCREW	$13.58 Order
28	14624587	PLUG	$22.26 Order
