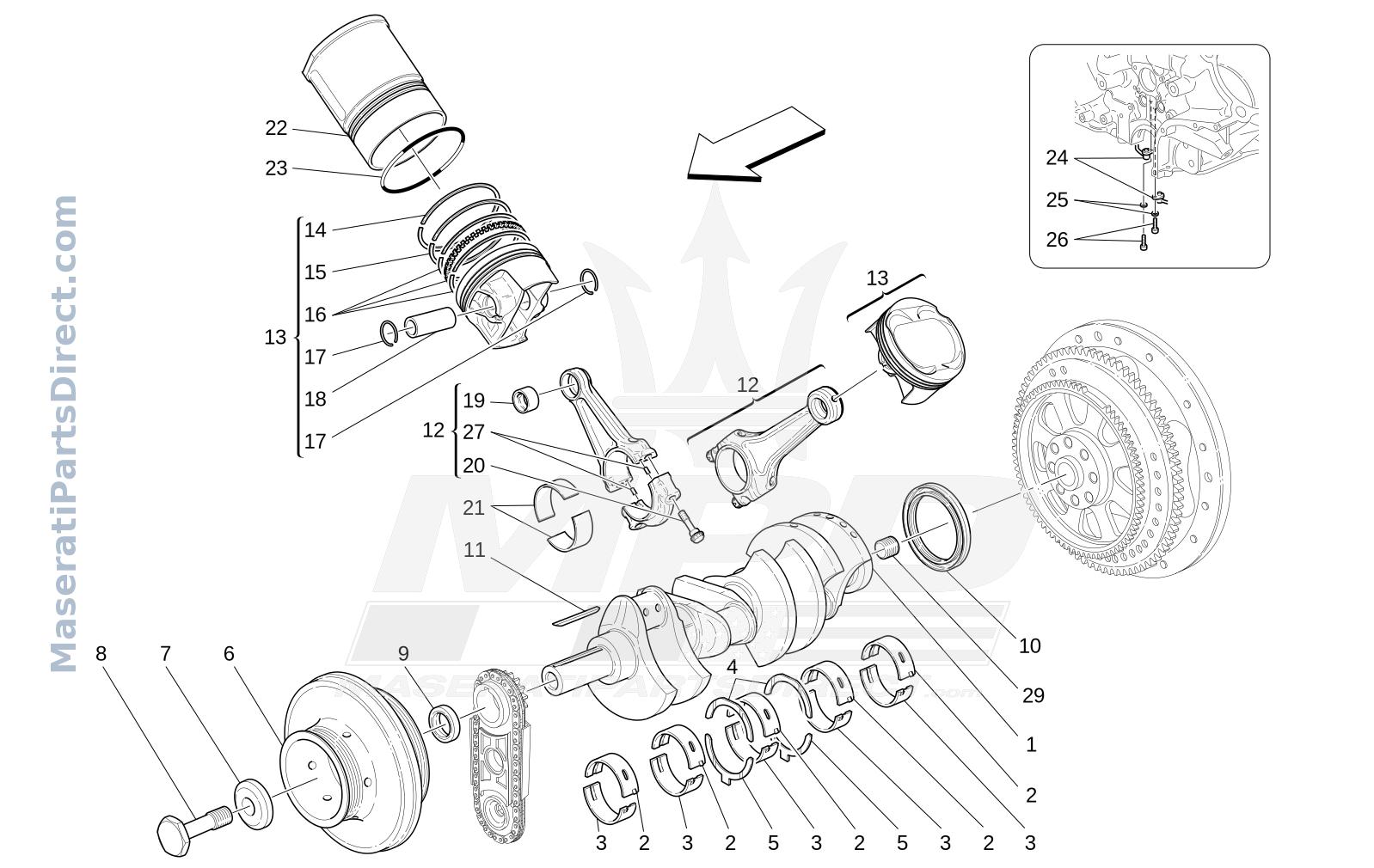

01.10 - 1 - CRANK MECHANISM

Select a part from the list to view details

Select a part from the list to view dimensions

Select a part from the list to view fitment information

Parts List

Ref	Part Number	Description	Price
1	272395 Replaced by: #760882.0	CRANKSHAFT	$0.00 Order
1	760882	CRANKSHAFT	$0.00 Order
2	286834	UPPER HALF-BEARING	$68.60 Order
2	286832	UPPER HALF-BEARING	$38.61 Order
2	286833	UPPER HALF-BEARING	$39.40 Order
3	286838	LOWER HALF-BEARING	$365.72 Order
3	286836	LOWER HALF-BEARING	$23.35 Order
3	286837	LOWER HALF-BEARING	$38.61 Order
4	222874	SHIM WASHER	$93.91 Order
5	222874	SHIM WASHER	$93.91 Order
6	257518	TORSION DAMPER	$1,448.33 Order
7	192106	WASHER	$40.96 Order
8	196216	SCREW FOR DAMPER FIXING	$158.91 Order
9	188717	GASKET	$80.51 Order
10	200323	SEAL RING	$117.81 Order
11	186201	TAB	$13.88 Order
12	281167	CONNECTING ROD SHAFT AND CAP ASSEMBLY	$401.08 Order
13	284373	LH SIDE ENGINE PISTON WITH RINGS	$604.17 Order
13	284372	RH SIDE ENGINE PISTON WITH RINGS	$2,066.40 Order
14	206411	SEAL RING	$258.43 Order
15	206412	SEAL RING	$294.23 Order
16	212820	OIL SCRAPER RING	$258.75 Order
17	178890	LOCK RING	$23.34 Order
18	198260	PIN	$174.66 Order
19	224504	BUSHING	$53.53 Order
20	218371	CONNECTING ROD TIGHTENING SCREW	$101.82 Order
21	204291	CONNECTING ROD HALF-BEARING	$28.83 Order
21	204290	CONNECTING ROD HALF-BEARING	$96.60 Order
21	204292	CONNECTING ROD HALF-BEARING	$29.03 Order
22	243339	CYLINDERS LINER	$682.49 Order
23	186251	GASKET	$21.48 Order
24	236813	PISTONS COOLING NOZZLE	$54.85 Order
25	11181474	WASHER	$8.64 Order
26	14302921	SCREW	$8.64 Order
27	224608	CENTERING PIN	$15.89 Order
29	14325540	THREADED PLUG	$23.79 Order
