| Ref | Part Number | Description | Price | Qty | |
|---|---|---|---|---|---|
| 1 | 228388 | A.C CONDENSER |
$1,495.37
Order
|
|
|
| 2 | 239419 | BRACKET |
$70.00
Order
|
|
|
| 3 | 102741 | NUT |
$7.65
Order
|
|
|
| 4 | 12643704 | WASHER |
$11.52
Order
|
|
|
| 5 | 239421 | BRACKET |
$58.13
Order
|
|
|
| 6 | 102741 | NUT |
$7.65
Order
|
|
|
| 7 | 12644404 | WASHER |
$8.64
Order
|
|
|
| 8 | 239420 | BRACKET |
$63.95
Order
|
|
|
| 9 | 102741 | NUT |
$7.65
Order
|
|
|
| 10 | 12643704 | WASHER |
$11.52
Order
|
|
|
| 11 | 239422 | BRACKET |
$112.95
Order
|
|
|
| 12 | 102741 | NUT |
$7.65
Order
|
|
|
| 13 | 12644404 | WASHER |
$8.64
Order
|
|
|
| 14 | 84696700 | PIPE FROM CONDENSER TO SHIELD |
$778.26
Order
|
|
|
| 15 | 89373000 | PIPE FROM COMPRESSOR TO CONDENSER |
$235.83
Order
|
|
|
| 16 | 81252500 | PIPE FROM COMPRESSOR TO SHIELD JOINT |
$920.36
Order
|
|
|
| 17 | 781138 | A.C. COMPRESSOR |
$1,632.46
Order
|
|
|
| 18 | 141496 | SPACER |
$34.72
Order
|
|
|
| 19 | 175428 | SCREW |
$19.15
Order
|
|
|
| 20 | 14307124 | SCREWM8X90 |
$27.03
Order
|
|
|
| 21 | 11193874 | WASHERD.8.4-16X1.4 |
$5.58
Order
|
|
|
| 22 | 227256 | BRACKET |
$93.68
Order
|
|
|
| 23 | 67063200 | CLIP |
$15.89
Order
|
|
|
| 24 | 65628200 | PRESSOSTAT |
$382.72
Order
|
|
|
| 25 | 68392000 | O.R. GASKET |
$22.86
Order
|
|
|
| 26 | 68392100 | O.R. GASKET |
$16.70
Order
|
|
|
| 27 | 66309700 | O.R. GASKET |
$27.03
Order
|
|
|
| 28 | 68392700 | O.R. GASKET |
$12.98
Order
|
|
|
| 29 | 68392800 | O.R. GASKET |
$17.50
Order
|
|
|
| 30 | 66309800 | O.R. GASKET |
$22.26
Order
|
|
|
| 31 | 66309600 | O.R. GASKET |
$12.11
Order
|
|
|
| 32 | 67085400 | O.R. GASKET |
$58.90
Order
|
|
|
| 33 | 67085300 | O.R. GASKET |
$58.90
Order
|
|
|
| 34 | 68199800 | BRACKET |
$46.98
Order
|
|
|
| 35 | 16297627 | SCREW |
$11.40
Order
|
|
|
| 36 | 233192 | BRACKET |
$877.21
Order
|
|
|
| 37 | 14305724 | SCREW |
$6.93
Order
|
|
|
| 38 | 11197774 | WASHERD.6.4-12X2.4 |
$9.20
Order
|
|
|
| 39 | 254649 | DEHYDRATOR FILTER |
$417.75
Order
|
|
|
| 41 | 251239 | O.R. GASKET |
$35.36
Order
|
|
|
| 42 | 251238 | PLATE |
$157.87
Order
|
|
|
| 43 | 251237 | SCREW |
$158.05
Order
|
|
|
| 44 |
251241
Replaced by: #254356.0
|
PLUG |
$0.00
Order
|
|
|
| 45 | 14305424 | SCREW |
$6.21
Order
|
|
|
| 46 | 12601274 | WASHERD. 6,40-12X 0,5 |
$8.28
Order
|
|
|
| 47 | 80964400 | FLANGE |
$60.45
Order
|
|
|
| 48 | 80964500 | GASKET |
$16.98
Order
|
|
|
| 49 | 14040611 | NUT |
$8.64
Order
|
|
|
| 50 | 254356 | DEHYDRATING FILTER KIT |
$128.85
Order
|
|

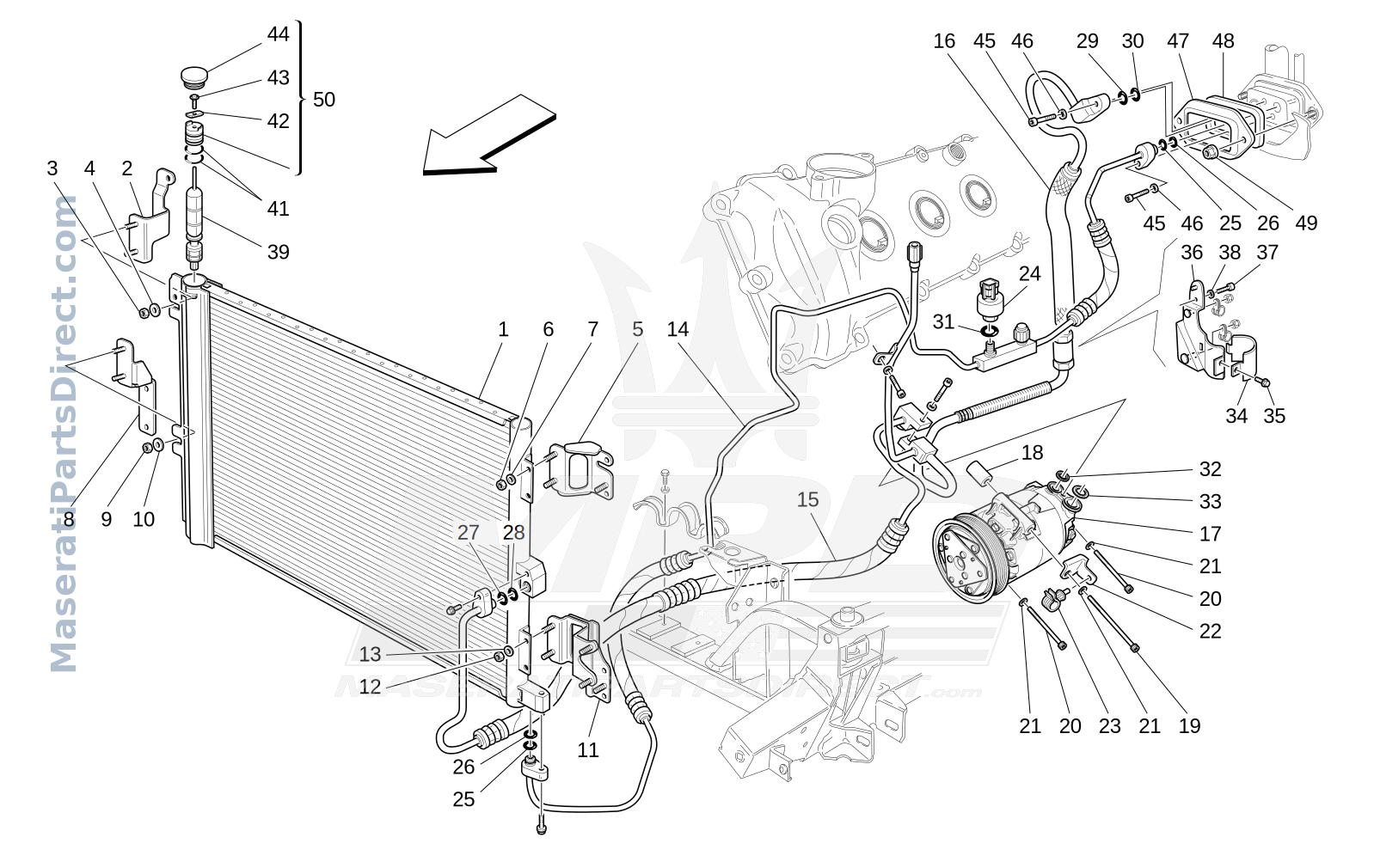

| SVG Path | GranC2019-08-40-1-a-c-unit-engine-compartment-devices-MC_M.svg |
|---|---|
