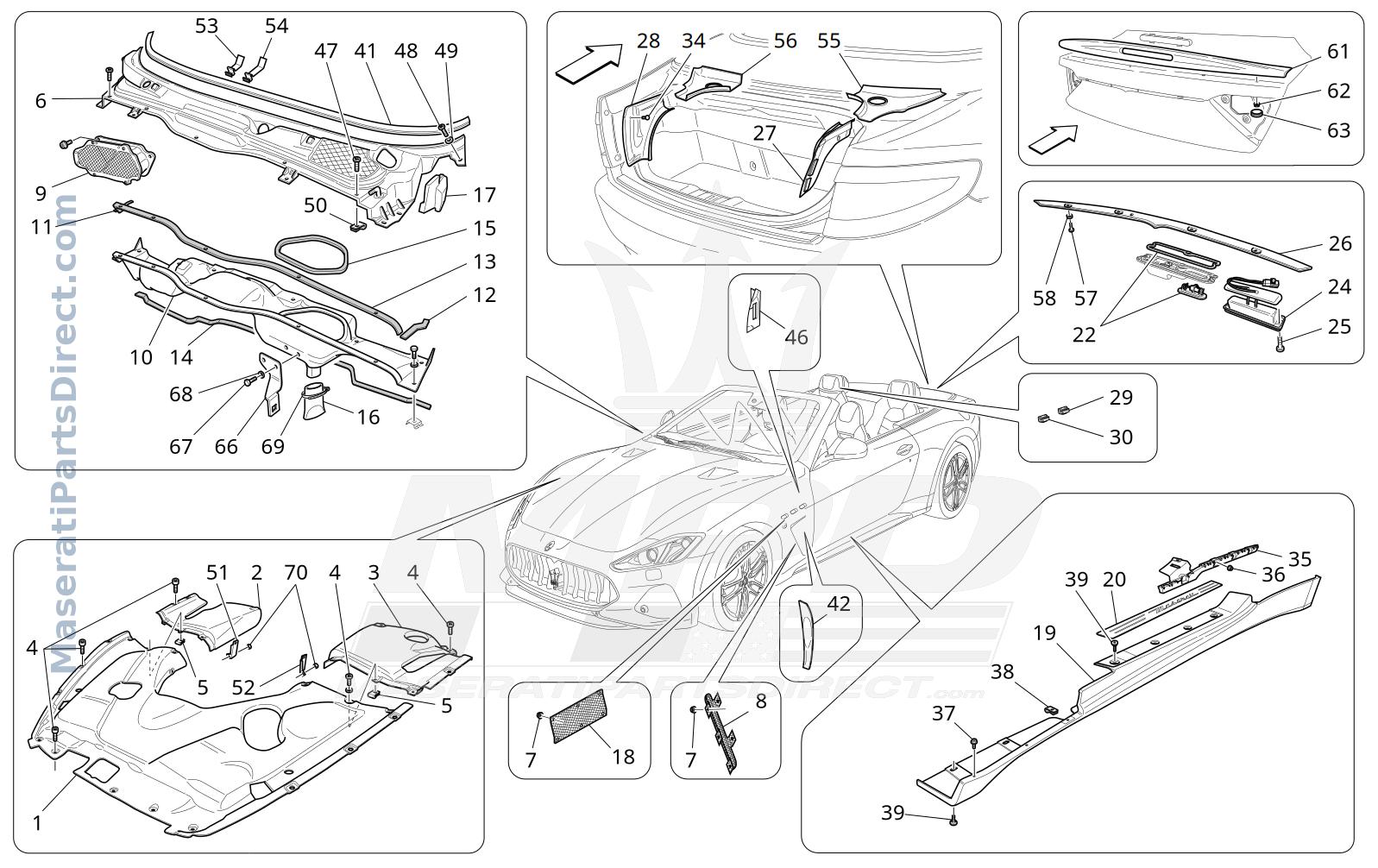

09.15 - 4 - SHIELDS, TRIMS AND COVERING PANELS

Select a part from the list to view details

Part Number:	-
Part Position:	-
Remarks:	-
Market:	-
Valid Assembly Range:	-
Valid Frame Range:	-
Valid Engine Range:	-
Valid Gearbox Range:	-
Includes:	-
Replaced By:	-
Camera Image:	-
PDF Link:	-
3D Model Link:	-

Select a part from the list to view dimensions

Length (cm):	-
Width (cm):	-
Height (cm):	-
Weight (kg):	-

Length (in):	-
Width (in):	-
Height (lbs):	-
Weight (lbm):	-

Select a part from the list to view fitment information

Parts List

Ref	Part Number	Description	Price
1	82074800	ENGINE COMPARTMENT CENTRAL COVER	$802.51 Order
2	68266100	RH COVER FOR ENGINE COMPARTMENT	$175.21 Order
3	84057500	LH COVER FOR ENGINE COMPARTMENT	$289.11 Order
4	67721000	SCREWM5	$20.02 Order
5	66914000	BRACKET	$16.17 Order
6	89254800	UNDER WINDSCREEN PLATE	$1,035.83 Order
7	13046011	NUTM5	$8.64 Order
8	83537100	LH LOWER AIR INTAKE	$139.88 Order
8	83537200	RH LOWER AIR INTAKE	$136.84 Order
9	80066400	AIR DUCT	$202.82 Order
10	82231000	STEP ASSEMBLY	$502.51 Order
11	80066000	RH GASKET	$25.46 Order
12	80066100	LH GASKET	$25.46 Order
13	80062600	FRONT GASKET	$135.34 Order
14	82402000	REAR GASKET	$169.73 Order
15	80085300	GASKET	$45.12 Order
16	69638100	WATER OUTLET SLEEVE	$54.25 Order
16	68472500	WATER OUTLET SLEEVE	$55.30 Order
17	80085500	LH END BLOCK TANK SERVICES	$68.28 Order
17	80067000	RH END BLOCK TANK SERVICES	$68.28 Order
18	83537000	LH UPPER AIR INTAKE	$170.72 Order
18	83536900	RH UPPER AIR INTAKE	$179.87 Order
19	980145474	COMPLETE LH SIDE SKIRT	$1,040.29 Order
19	980145473	COMPLETE RH SIDE SKIRT	$1,096.61 Order
20	80185700	KICK PLATE	$398.83 Order
20	82416000	LH KICK PLATE	$934.59 Order
20	820767..	LH KICK PLATE	$0.00 Order
20	82415900	RH KICK PLATE	$937.29 Order
20	820766..	RH KICK PLATE	$0.00 Order
22	980145727	MICROSWITCH KIT	$132.19 Order
24	198231	NUMBER PLATE ROOF LIGHT	$138.75 Order
25	15688175	SCREWM4,2X16	$10.40 Order
26	83446000	COMPLETE REAR LID MOULDING	$207.50 Order
26	89409800	COMPLETE REAR LID MOULDING	$812.60 Order
27	81599000	RH COVERING	$85.78 Order
28	81599100	LH COVERING	$73.38 Order
29	80171200	CLIP	$14.14 Order
30	80171100	CLIP	$13.28 Order
34	81695800	FASTENER BUTTON	$9.72 Order
35	80094000	LH BRACKET	$97.06 Order
35	80093900	RH BRACKET	$108.91 Order
36	13046011	NUTM5	$8.64 Order
37	16285014	SCREWM5X12	$13.58 Order
38	67278400	BRACKET	$9.73 Order
39	51810310	SCREW	$11.72 Order
41	80801500	GASKET	$789.58 Order
42	81056900	LH MUDGUARD PILASTER COVER	$178.38 Order
42	81056800	RH MUDGUARD PILASTER COVER	$218.86 Order
46	82984200	FRONT L.H. POST COVERING	$72.40 Order
46	82984100	FRONT R.H. POST COVERING	$71.89 Order
47	15783377	SCREW	$13.58 Order
48	13274077	SCREWM5X12	$10.40 Order
49	13577778	WASHERD. 5,45-15X1,2	$8.64 Order
50	67883500	BRACKET	$10.22 Order
51	67714000	RH BRACKET	$25.46 Order
52	67714100	LH BRACKET	$40.74 Order
53	80349400	CLIP	$22.65 Order
54	80349500	CLIP	$21.72 Order
55	81554600	RH COVERING	$70.36 Order
56	81554700	LH COVERING	$68.28 Order
57	15688175	SCREWM4,2X16	$10.40 Order
58	12637807	WASHERD 5.15-11X1	$8.28 Order
61	85220800	REAR SPOILER	$5,047.28 Order
61	85220700	REAR SPOILER	$8,079.68 Order
62	14039511	NUTM5	$9.73 Order
63	181322	PLUG	$15.89 Order
66	81598600	CABLES FIXING BRACKET	$52.18 Order
67	10979424	SCREWTE M6X10	$8.64 Order
68	12639724	WASHERD.6.15-11X1	$5.58 Order
69	105550	CLAMP	$13.28 Order
70	14059114	NUTM5	$9.20 Order
