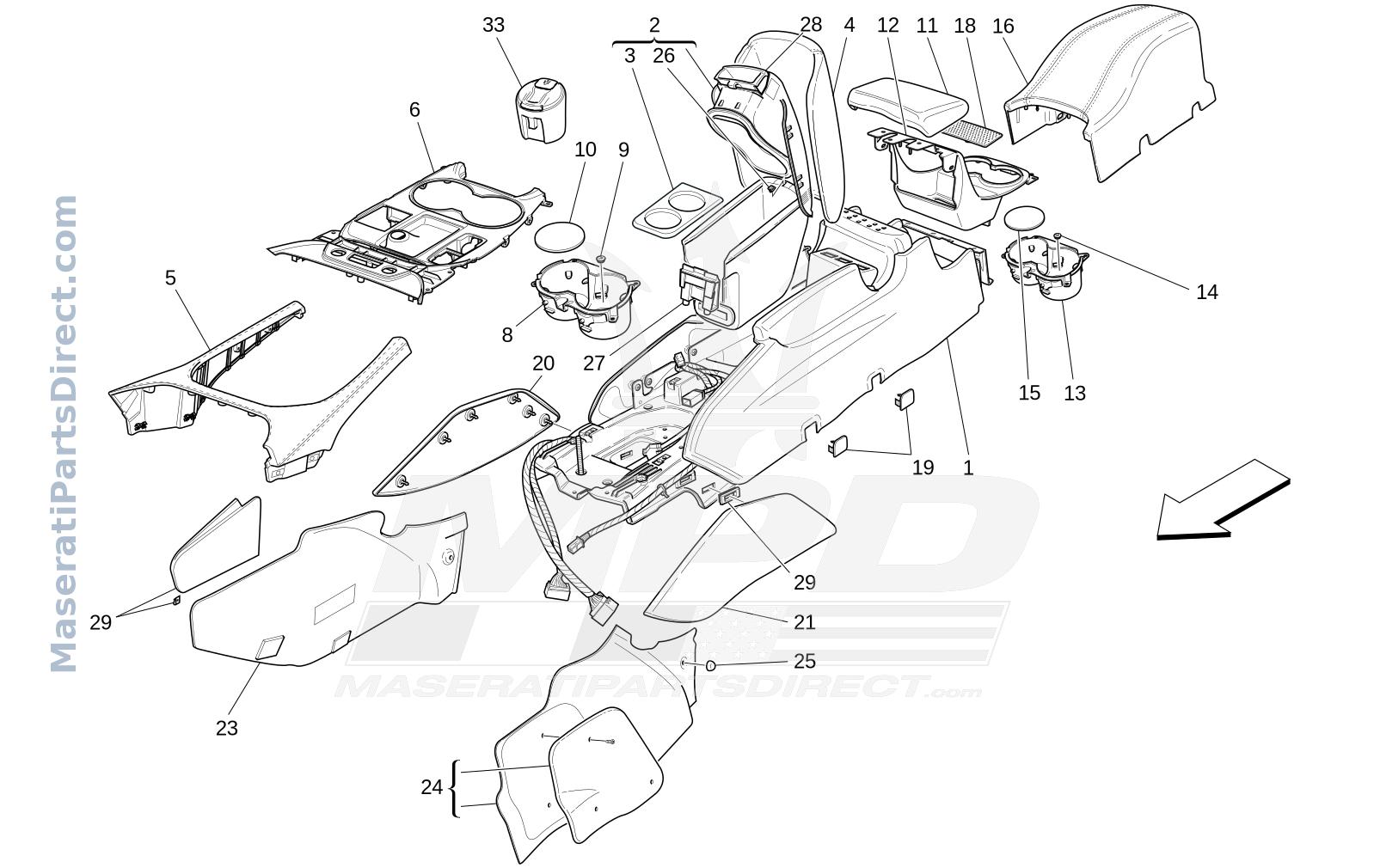

09.51 - 3 - ACCESSORY CONSOLE AND CENTRE CONSOLE

Select a part from the list to view details

Select a part from the list to view dimensions

Select a part from the list to view fitment information

Parts List

Ref	Part Number	Description	Price
1	9817035..	COMPLETE TUNNEL COVER STRUCTURE	$0.00 Order
2	980145824	COMPLETE TUNNEL COVER BOX	$0.00 Order
3	980139474	CARPET	$167.18 Order
4	981703...	TUNNEL COVER ARM REST	$0.00 Order
4	9817024..	TUNNEL COVER ARM REST	$0.00 Order
4	9817023..	TUNNEL COVER ARM REST	$0.00 Order
5	custom	FRONT PLATE	$0.00 Order
6	9817033..	CENTRAL DASHBOARD TRIM PLATE	$0.00 Order
6	9817034..	CENTRAL DASHBOARD TRIM PLATE	$0.00 Order
8	69298000	PAN	$226.16 Order
9	68194000	PLUG	$15.89 Order
10	69620300	CARPET	$24.13 Order
11	9815005..	UPPER REAR FRAME	$0.00 Order
11	853679..	UPPER REAR FRAME	$0.00 Order
12	980145736	COMPLETE REAR CONSOLE	$2,338.52 $1,987.75 In Stock
13	69298000	PAN	$226.16 Order
14	68194000	PLUG	$15.89 Order
15	69620300	CARPET	$24.13 Order
16	815762..	COMPLETE REAR CONSOLE COVER	$0.00 Order
16	853677..	COMPLETE REAR CONSOLE COVER	$0.00 Order
18	69892000	REAR CARPET	$103.94 Order
19	9813076..	PLUG	$0.00 Order
20	698909..	RH FRONT LATERAL PANEL	$0.00 Order
21	698908..	LH FRONT LATERAL PANEL	$0.00 Order
23	821721..	CENTRE CONSOLE RIGHT LATERAL COVER	$0.00 Order
24	821722..	CENTRE CONSOLE LEFT LATERAL COVER	$0.00 Order
25	68190400	SCREW CAP	$17.50 Order
26	980139614	CLIP	$415.21 Order
27	69299000	BLOCK	$157.37 Order
28	980139814	ARM-REST HANDLE REPLACEMENT KIT	$359.57 Order
29	893998..	CENTRE CONSOLE SIDE POCKET	$0.00 Order
33	670017503 Replaced by: #670136736.0	ASH TRAY	$0.00 Order
33	670136736	ASH TRAY	$0.00 Order
