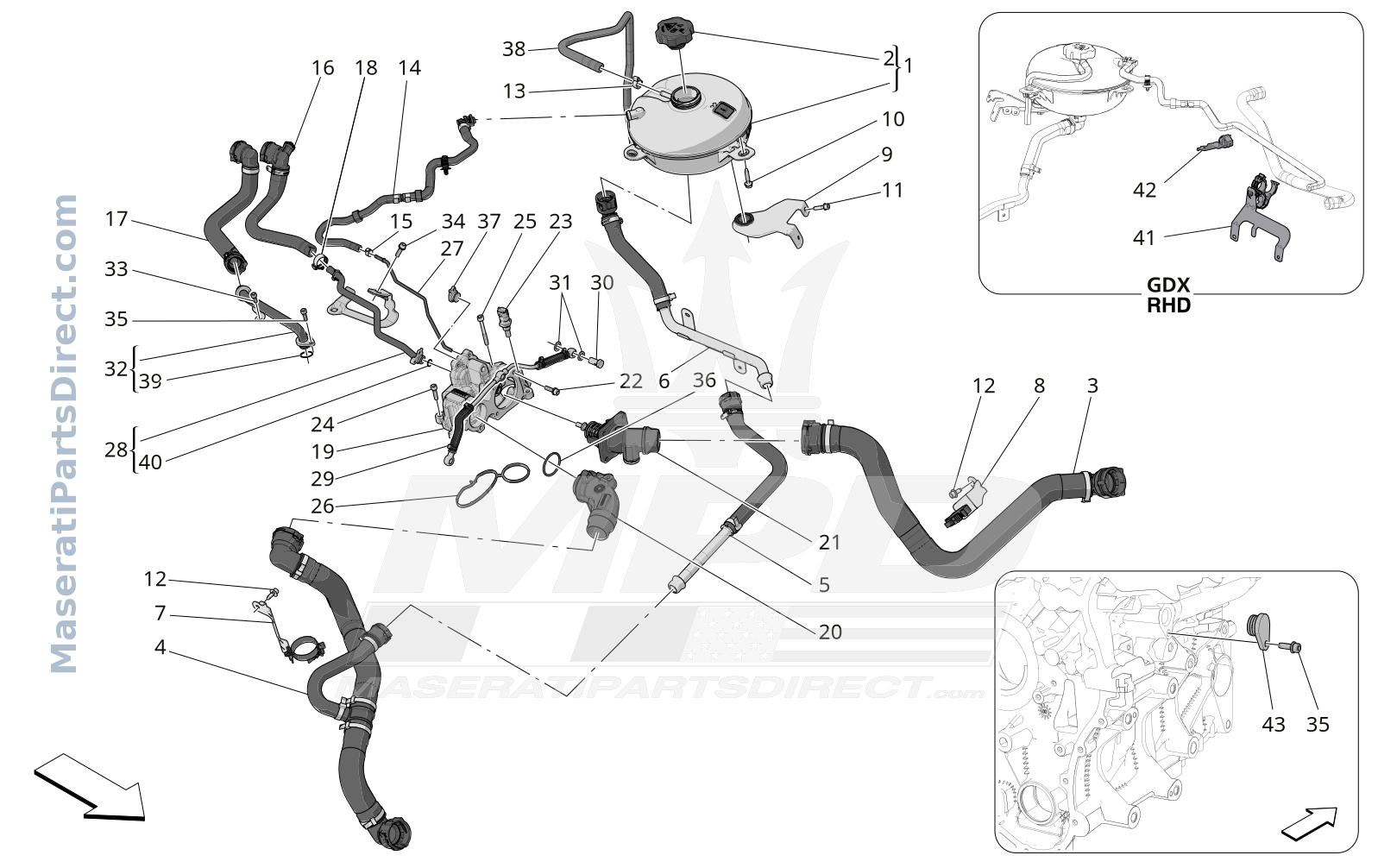

01.71 - 1 - COOLING SYSTEM: NOURICE AND LINES

Select a part from the list to view details

Part Number:	-
Part Position:	-
Remarks:	-
Market:	-
Valid Assembly Range:	-
Valid Frame Range:	-
Valid Engine Range:	-
Valid Gearbox Range:	-
Includes:	-
Replaced By:	-
Camera Image:	-
PDF Link:	-
3D Model Link:	-

Select a part from the list to view dimensions

Length (cm):	-
Width (cm):	-
Height (cm):	-
Weight (kg):	-

Length (in):	-
Width (in):	-
Height (lbs):	-
Weight (lbm):	-

Select a part from the list to view fitment information

Parts List

Ref	Part Number	Description	Price
1	670158483	COOLANT RESERVOIR	$187.42 Order
2	675001143	TANK PLUG	$52.75 Order
3	670298249	WATER INLET DUCT	$0.00 Order
4	670158487	RADIATOR WATER OUTPUT SLEEVE	$0.00 Order
5	670159639	INTERMEDIATE PIPE	$0.00 Order
6	670158486	EXPANSION TANK TUBE	$0.00 Order
7	670159638	BRACKET	$0.00 Order
8	670158498	BRACKET	$0.00 Order
9	670159633	BRACKET	$0.00 Order
10	670214844	SCREW	$0.00 Order
11	675001880	SCREW	$9.17 Order
12	675002172	SCREW	$0.00 Order
13	675000369	COLLARD.13-14	$8.28 In Stock
14	670158497	EXPANSION TANK BREATHER PIPE	$180.95 Order
15	675000368	COLLARD.11	$8.28 Order
16	670158495	HEATER WATER DELIVERY SLEEVE	$0.00 Order
17	670158496	WATER RETURN SLEEVE FROM HEATER	$0.00 Order
18	675000388	COLLAR	$10.14 Order
18	675000372	COLLARD.20,5	$10.14 Order
19	670051609	THERMOSTAT ASSEMBLY	$650.30 Order
20	670051295	WATER INLET DUCT	$255.10 Order
21	670052360	THERMOPRESSOSTAT	$553.50 Order
22	670051108	SCREW	$8.64 Order
23	670005736	TEMPERATURE SENSOR	$30.57 In Stock
24	670051109	SCREW	$11.15 Order
25	670051115	SCREW	$10.16 Order
26	670050241	GASKET	$40.10 Order
27	670052359	VENT PIPE	$101.91 Order
28	670052357	FILLING PIPE	$213.44 Order
29	670053788	HEAD WATER BREATHER PIPE	$176.33 Order
30	675001418	UNION	$18.34 Order
31	675001419	GASKET	$10.14 Order
32	670050368	SECONDARY WATER DELIVERY AND RETURN PIPE	$0.00 Order
33	670051103	SCREW	$11.40 Order
34	670051105	SCREW	$11.95 Order
35	670051106	SCREW	$10.80 Order
36	675001958	GASKET	$21.03 Order
37	670050607	PLUG	$21.24 Order
38	670159789	HOSE DEGASSING	$0.00 Order
39	287722	O.R. GASKET	$9.73 Order
40	130295	O.R. GASKET	$9.24 Order
43	670051762	PLUG	$53.65 Order
