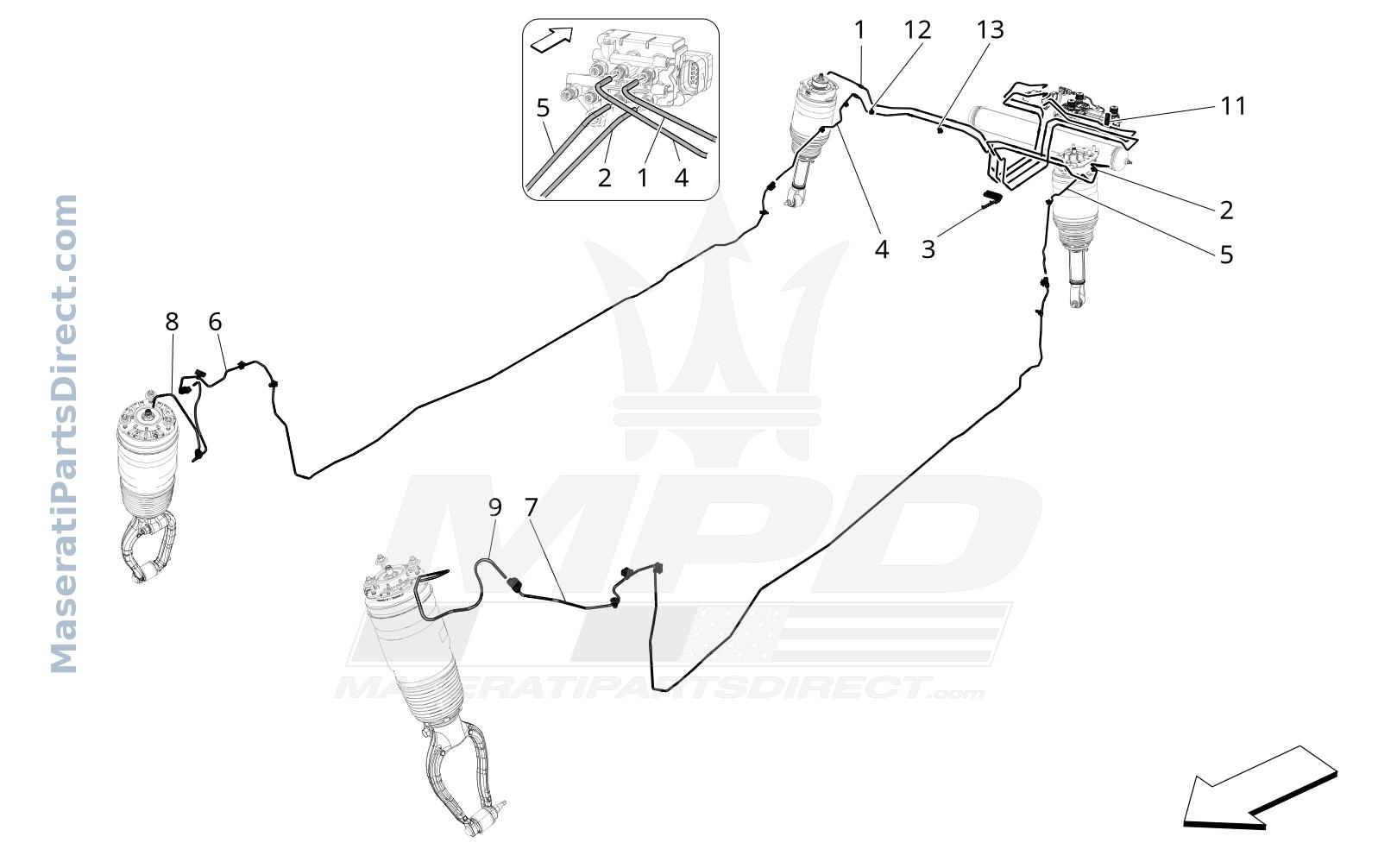

06.24 - 1 - AIR SUSPENSION SYSTEM

Select a part from the list to view details

Select a part from the list to view dimensions

Select a part from the list to view fitment information

Parts List

Ref	Part Number	Description	Price
1	670293669	REAR RH SHOCK ABSORBER PIPE	$105.46 Order
1	670307839	REAR RH SHOCK ABSORBER PIPE	$96.60 Order
2	670293671	REAR LH SHOCK ABSORBER PIPE	$97.24 Order
3	675001795	CLIP	$15.89 Order
4	670293667 Replaced by: #670307837	RH AIR PIPE	$0.00 Order
4	670307837	RH AIR PIPE	$125.53 Order
4	670311086	RH AIR PIPE	$0.00 Order
5	670293665	LH AIR PIPE	$130.57 Order
5	670307835	LH AIR PIPE	$125.53 Order
5	670311084	LH AIR PIPE	$0.00 Order
6	670298579 Replaced by: #670307844	RH AIR HOSE UNDER THE REAR FLOOR	$0.00 Order
6	670307844	RH AIR HOSE UNDER THE REAR FLOOR	$166.78 Order
6	670311089	RH AIR HOSE UNDER THE REAR FLOOR	$0.00 Order
7	670299120 Replaced by: #670307843	LH AIR HOSE UNDER THE REAR FLOOR	$0.00 Order
7	670307843	LH AIR HOSE UNDER THE REAR FLOOR	$145.22 Order
7	670311088	LH AIR HOSE UNDER THE REAR FLOOR	$182.18 Order
8	670292683	FRONT RH SHOCK ABSORBER PIPE	$35.87 Order
8	670307832	FRONT RH SHOCK ABSORBER PIPE	$0.00 Order
9	670292684	FRONT LH SHOCK ABSORBER PIPE	$35.87 Order
9	670307833	FRONT LH SHOCK ABSORBER PIPE	$36.26 Order
11	670175004	PIPE RETAINING	$13.28 Order
12	670034997	PIPE RETAINING	$0.00 Order
13	670214996	PIPE RETAINING	$0.00 Order
