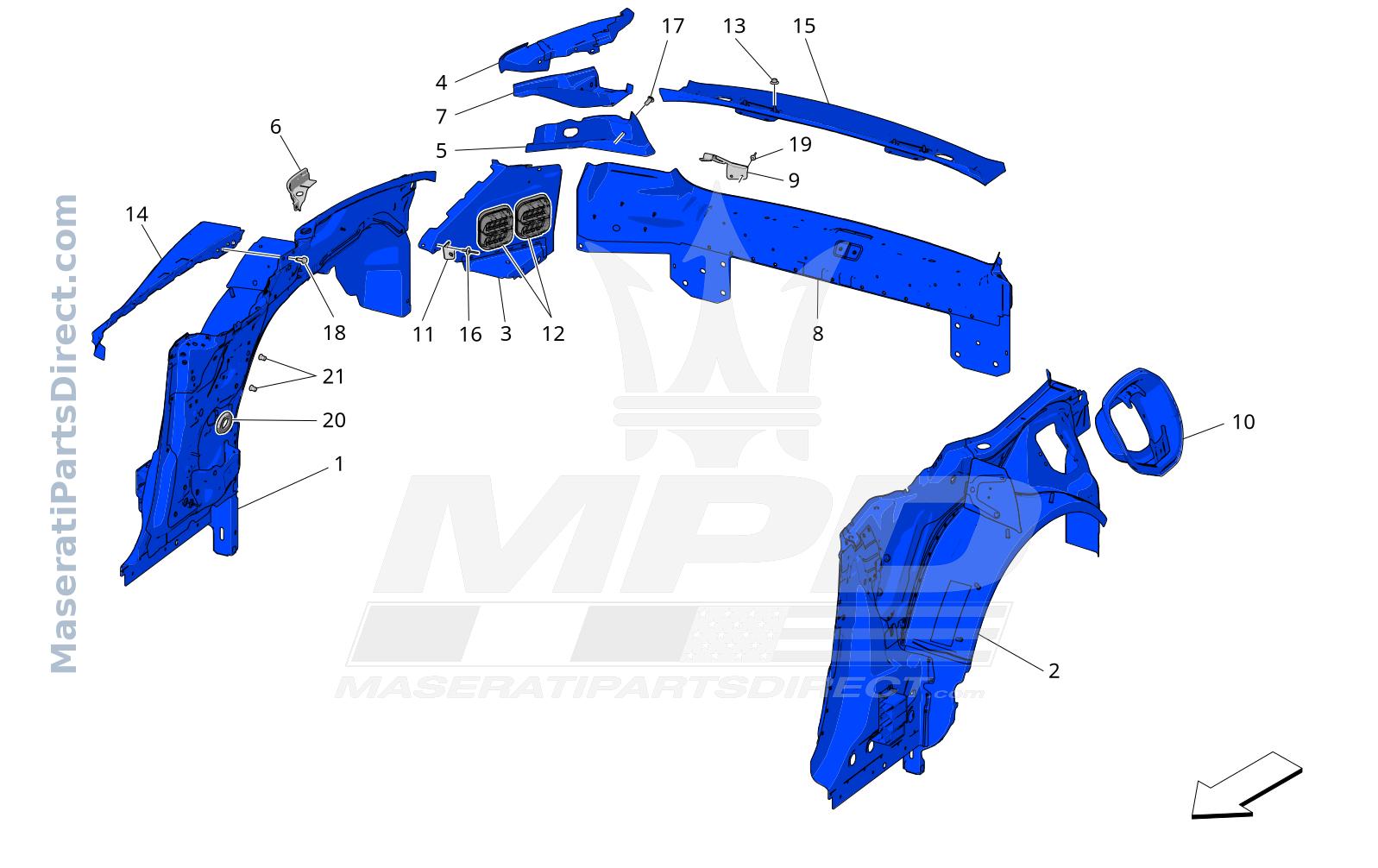

09.02 - 1 - BODYWORK AND REAR OUTER TRIM PANELS

Select a part from the list to view details

Select a part from the list to view dimensions

Select a part from the list to view fitment information

Parts List

Ref	Part Number	Description	Price
1	673016534	RH BODY SIDE FRAME ASSEMBLY	$0.00 Order
2	673016532	LH BODY SIDE FRAME ASSEMBLY	$0.00 Order
3	673015438	LH INSERT	$0.00 Order
3	673015444	RH INSERT	$0.00 Order
4	673016539	LH EXTENSION PLATE TAIL LAMP	$0.00 Order
4	673016546	RH EXTENSION PLATE TAIL LAMP	$0.00 Order
5	673016538	LH REAR LIGHT HOUSING BASE ASSEMBLY	$0.00 Order
5	673016545	RH REAR LIGHT HOUSING BASE ASSEMBLY	$0.00 Order
6	673016555	LH SIDE PANEL FRONT CLOSURE	$0.00 Order
6	673016556	RH SIDE PANEL FRONT CLOSURE	$0.00 Order
7	673016540	UPPER LH HEADLIGHT HOUSING GUIDE	$0.00 Order
7	673016547	UPPER RH HEADLIGHT HOUSING GUIDE	$0.00 Order
8	673016550	LOWER REAR PANEL ASSEMBLY	$0.00 Order
9	670219146	LH BRACKET	$0.00 Order
9	670175128	RH BRACKET	$52.81 Order
10	673016543	FUEL FILLER NECK BASE	$0.00 Order
11	670218269	REAR WHEELHOUSE BRACKET	$0.00 Order
12	675002348	AIR OUTLET GUARD	$20.69 Order
13	675000092	NUT	$8.28 Order
14	670216946	LH BRACKET	$0.00 Order
14	670216944	RH BRACKET	$0.00 Order
15	673016558	GUIDE	$0.00 Order
16	675000531	RIVET	$11.52 Order
17	675000698	RIVET	$10.22 Order
18	675002282	SCREW	$0.00 Order
19	675000404	RIVET	$7.65 Order
20	670303733	PLUG	$0.00 Order
21	670036989	RIVET	$0.00 Order
