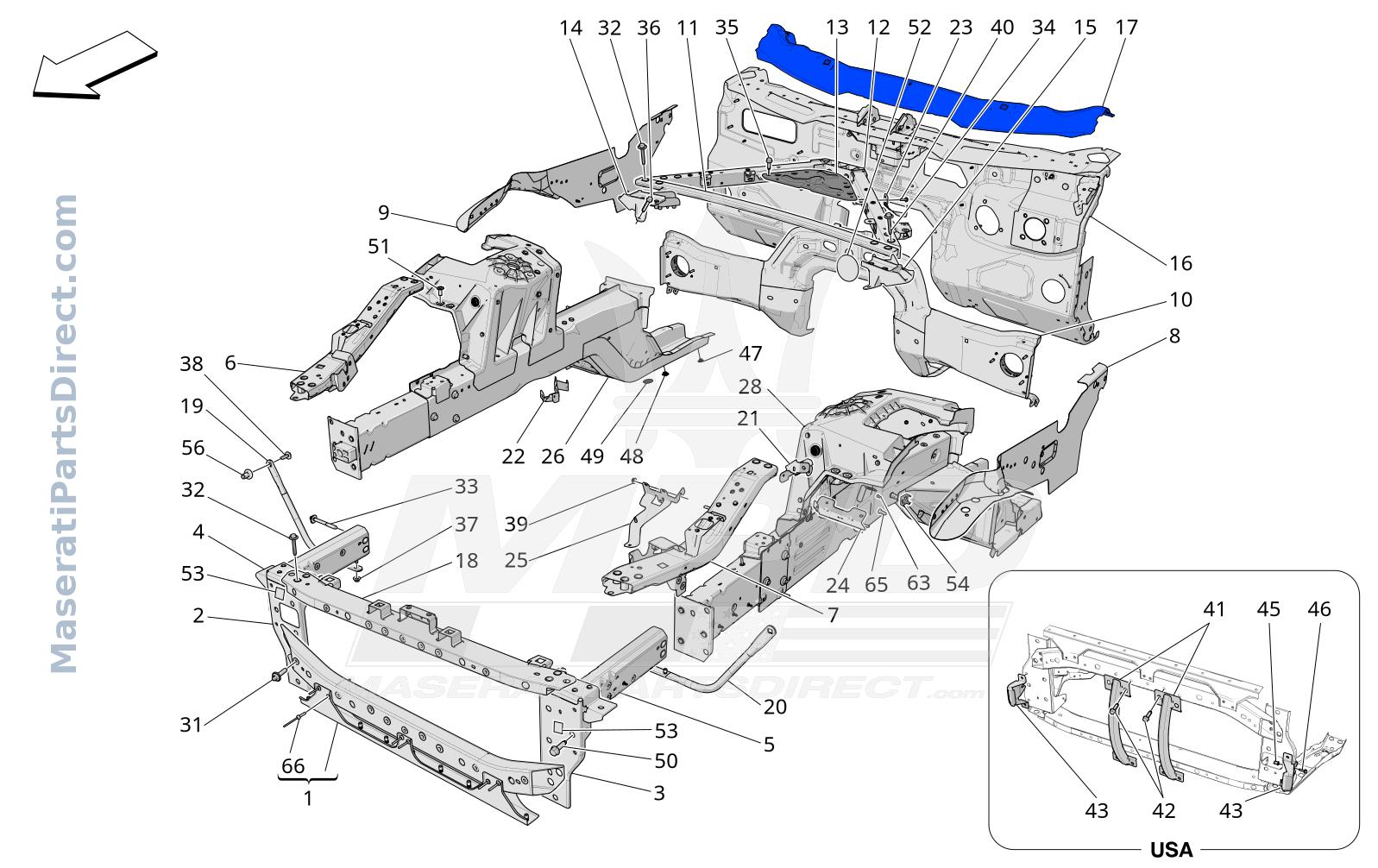

09.03 - 1 - FRONT STRUCTURAL FRAMES AND SHEET PANELS

Select a part from the list to view details

Part Number:	-
Part Position:	-
Remarks:	-
Market:	-
Valid Assembly Range:	-
Valid Frame Range:	-
Valid Engine Range:	-
Valid Gearbox Range:	-
Includes:	-
Replaced By:	-
Camera Image:	-
PDF Link:	-
3D Model Link:	-

Select a part from the list to view dimensions

Length (cm):	-
Width (cm):	-
Height (cm):	-
Weight (kg):	-

Length (in):	-
Width (in):	-
Height (lbs):	-
Weight (lbm):	-

Select a part from the list to view fitment information

Parts List

Ref	Part Number	Description	Price
1	670176907	FRONT CROSS MEMBER ASS.	$802.92 Order
2	670159124	RH BRACKET	$268.36 Order
3	670160062	LH BRACKET	$270.17 Order
4	673015512	RH COMPLETE FRONT STRUT	$309.08 Order
5	673015511	LH COMPLETE FRONT STRUT	$268.64 Order
6	673015514	RH UPPER STRUT	$338.78 Order
7	673015513	LH UPPER STRUT	$228.46 Order
8	673015412	COMPLETE LH UPPER STRUT BOX SECTION	$0.00 Order
9	673015413	COMPLETE RH UPPER STRUT BOX SECTION	$0.00 Order
10	673015409	LONGITUDINAL MEMBER CONNECTING CROSS MEMBER	$0.00 Order
11	670178464	SUSPENSION STRUT CONNECTING CROSS MEMBER ASS.	$0.00 Order
12	670307845	CONNECTING ROD ASSEMBLY	$0.00 Order
13	670178463	REINFORCEMENT PLATE	$0.00 Order
14	670173305	RH UPPER PILLAR BRACKET	$0.00 Order
15	670173303	LH UPPER PILLAR BRACKET	$0.00 Order
16	673015410	LOWER INSTRUMENT PANEL	$0.00 Order
17	673015453	LOWER CROSS MEMBER	$0.00 Order
18	670158372	FRONT CROSS MEMBER	$812.76 Order
19	670297783	COMPLETE R.H. FRONT ROD REINFORCEMENT	$168.17 Order
20	670297782	COMPLETE L.H. FRONT ROD REINFORCEMENT	$161.55 Order
21	670213294	SUPPORTING PIPES BRACKET	$0.00 Order
22	670213290	POSITIVE CABLE BRACKET	$0.00 Order
23	670213296	BRACKET	$0.00 Order
24	670213293	LH BRACKET	$0.00 Order
25	670213286	FRONT CABLE BRACKET	$0.00 Order
26	673015407	RH COMPLETE FRONT STRUT	$2,142.00 Order
28	673015408	LH COMPLETE FRONT STRUT	$2,097.65 Order
31	675001345	SCREW	$11.55 Order
32	670213851	SCREW	$0.00 Order
33	675000140	SCREWM10X95	$11.55 Order
34	670213823	SCREW	$0.00 Order
35	675001236	SCREW	$10.40 Order
36	670182465	SCREW	$0.00 Order
37	675002104	NUT	$0.00 Order
38	675002125	SCREW	$10.62 Order
39	675000095	NUTM6	$8.64 Order
40	675000432	SCREWM6X20	$12.30 Order
41	670159511	CROSS MEMBER CONNECTION	$122.85 Order
42	675002299	SCREW	$10.22 Order
43	670160131	BRACKET	$67.91 Order
45	675000576	RIVET	$8.64 Order
46	675001119	SCREW	$8.00 Order
47	675002304	PLUG	$0.00 Order
48	675001896	PLUG	$20.76 Order
49	670036841	ADHESIVE PLUG	$11.08 Order
50	675001007	SCREW	$11.95 Order
51	670174402	RIVET	$10.80 Order
52	670006214	PLUG	$11.25 Order
53	675000743	TESA FASTENER	$11.40 Order
54	675007422	INSERT	$0.00 Order
56	670174402	RIVET	$10.80 Order
63	675000623	WELDED STUDM5X14	$12.11 Order
65	675002147	PIN	$10.22 Order
66	675000399	RIVET	$12.30 Order
