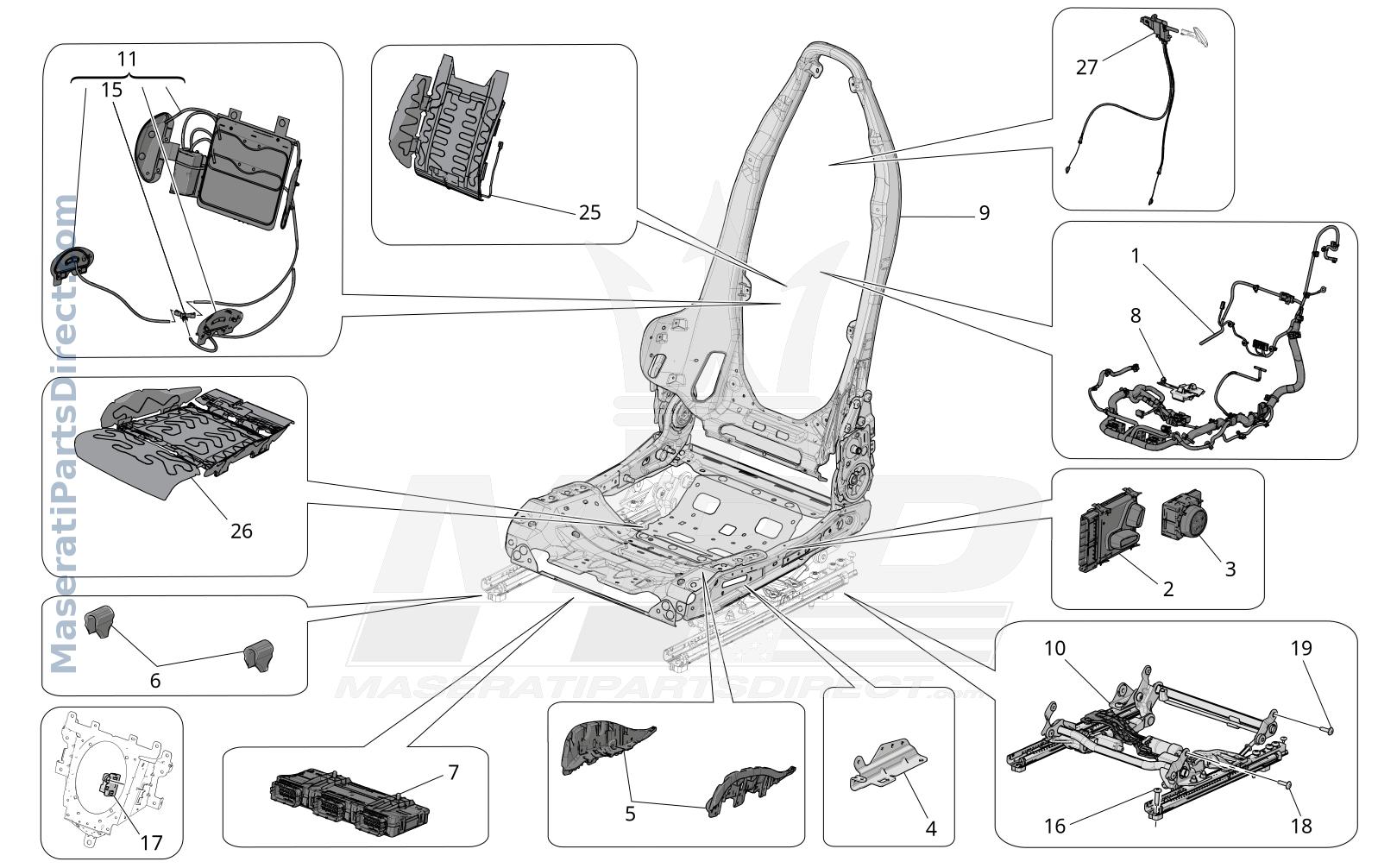

09.41 - 1 - FRONT SEATS: MECHANICS AND ELECTRONICS

Select a part from the list to view details

Select a part from the list to view dimensions

Select a part from the list to view fitment information

Parts List

Ref	Part Number	Description	Price
1	custom	LH SEAT WIRING HARNESS	$0.00 Order
1	custom	RH SEAT WIRING HARNESS	$0.00 Order
2	custom	LH SEAT ADJUSTMENT SWITCH	$0.00 Order
2	custom	LH SEAT ADJUSTMENT SWITCH	$0.00 Order
3	670173855	LUMBAR SUPPORT ADJUSTMENT JOYSTICK	$151.25 Order
4	673013423	LH BRACKET	$0.00 Order
4	673013424	RH BRACKET	$0.00 Order
5	673013421	LH CUSHION SIDE BOLSTER	$0.00 Order
5	673013422	RH CUSHION SIDE BOLSTER	$0.00 Order
6	673013441	SEAT STROKE LIMITER	$0.00 Order
7	670159953	FRONT SEAT SETTING ECU	$928.44 Order
8	673013442	BRACKET	$0.00 Order
9	673013383	SEAT STRUCTURE	$945.35 Order
9	673013384	SEAT STRUCTURE	$0.00 Order
10	custom	UNDERSEAT FRAMERH side	$0.00 Order
10	custom	UNDERSEAT FRAMELH side	$0.00 Order
11	673013443	LUMBAR SUPPORT	$1,110.78 Order
15	673013447	CABLE CONNECTOR	$0.00 Order
16	675002317	SCREW	$9.72 Order
17	670218807	HEATER-FAN ECU	$152.59 Order
18	673017015	SCREW	$0.00 Order
19	673017016	SCREW	$0.00 Order
25	673013577	CPL. FRONT SEAT BACK HEATER	$150.35 Order
26	673013494	CPL. FRONT SEAT CUSHION HEATER	$71.91 Order
27	673016828	LH RELEASE MECHANISM AND BOWDEN CABLE	$482.81 Order
27	673016827	RH RELEASE MECHANISM AND BOWDEN CABLE	$482.52 Order
