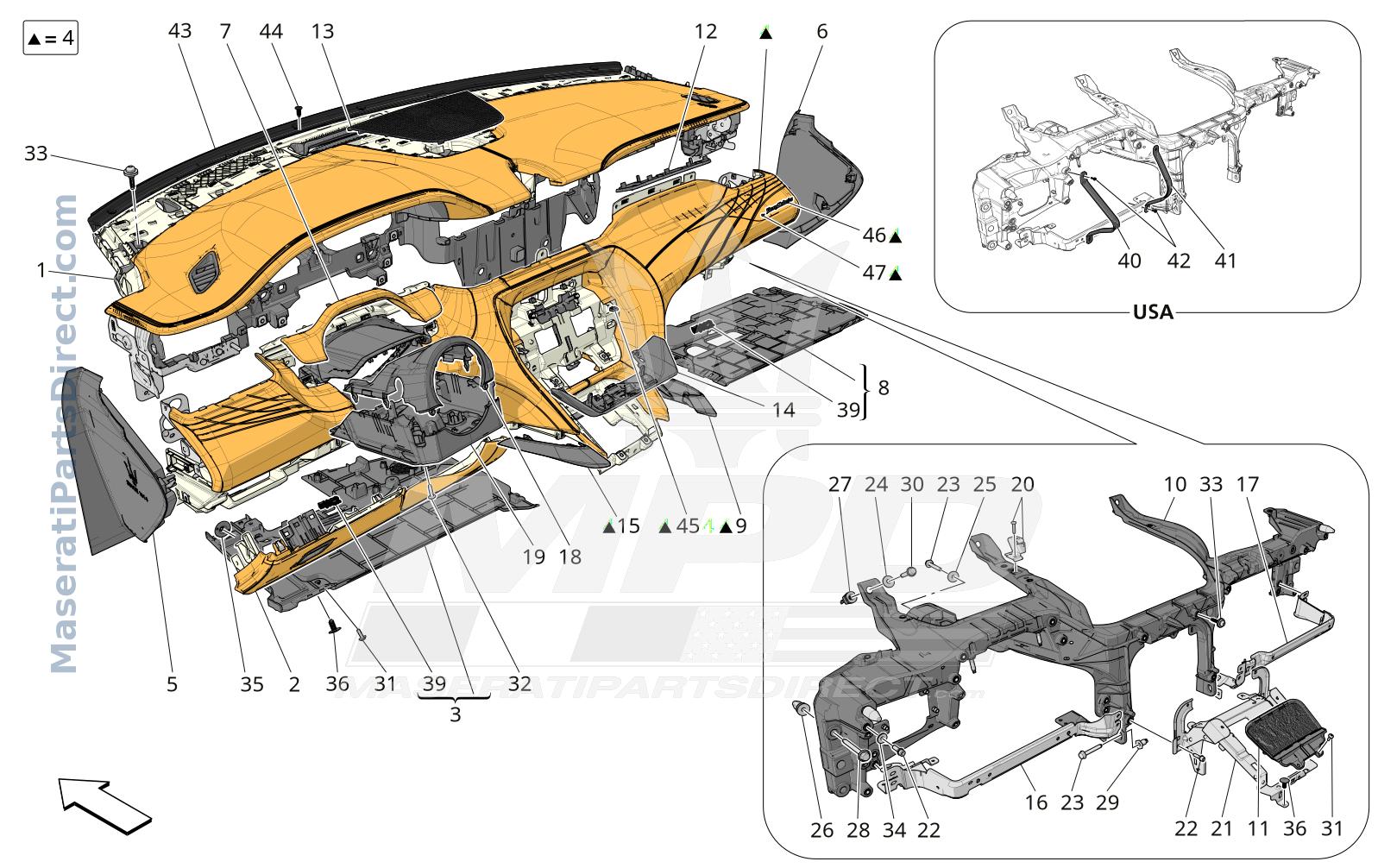

09.50 - 1 - DASHBOARD UNIT

Select a part from the list to view details

Part Number:	-
Part Position:	-
Remarks:	-
Market:	-
Valid Assembly Range:	-
Valid Frame Range:	-
Valid Engine Range:	-
Valid Gearbox Range:	-
Includes:	-
Replaced By:	-
Camera Image:	-
PDF Link:	-
3D Model Link:	-

Select a part from the list to view dimensions

Length (cm):	-
Width (cm):	-
Height (cm):	-
Weight (kg):	-

Length (in):	-
Width (in):	-
Height (lbs):	-
Weight (lbm):	-

Select a part from the list to view fitment information

Parts List

Ref	Part Number	Description	Price
1	custom	DASHBOARD ASSEMBLY	$0.00 Order
2	custom	DASHBOARD LH TRIM ASSEMBLY	$0.00 Order
3	custom	COMPLETE LH LOWER DASHBOARD COVER	$0.00 Order
4	custom	CENTRAL DASHBOARD	$0.00 Order
5	custom	LH COVER	$0.00 Order
6	custom	RH COVER	$0.00 Order
7	custom	STEERING COLUMN COVER BEZEL	$0.00 Order
8	custom	COMPLETE R.H. LOWER DASHBOARD COVER	$0.00 Order
9	custom	RH AIR DUCT BEZEL	$0.00 Order
10	670158248	DASHBOARD CROSS MEMBER	$0.00 Order
11	670181288	CASE FOR MOBILE PHONE	$0.00 Order
12	custom	PASSENGER SIDE DASHBOARD MOULDING	$0.00 Order
13	custom	CENTRAL LOUD SPEAKER GRILL	$0.00 Order
14	custom	MONITOR FRAME	$0.00 Order
15	custom	LH AIR DUCT BEZEL	$0.00 Order
16	670158252	KNEE-BAG BRACKET	$0.00 Order
17	670158254	FRONT CROSS MEMBER	$0.00 Order
18	custom	STEERING COLUMN UPPER GUARD	$0.00 Order
19	custom	COMPLETE STEERING COLUMN LOWER GUARD	$0.00 Order
20	670177526	LH UPPER BRACKET	$0.00 Order
21	670177528	CENTRAL BRACKET DASHBOARD	$0.00 Order
22	675000242	SCREWM6X25	$11.52 Order
23	675002323	SCREW	$0.00 Order
24	675000177	WASHERD.8.45-25X1.5	$8.64 Order
25	675002312	WASHER	$0.00 Order
26	675002313	PLATE	$0.00 Order
27	675001088	BUSHING	$21.26 Order
28	670213404	SCREW	$0.00 Order
29	670219618	BUSH SEAT	$0.00 Order
30	675002239	SCREW	$0.00 Order
31	670035714	SCREW	$9.20 Order
32	675002311	SCREW	$0.00 Order
33	675002019	SCREW	$11.10 Order
34	675000718	WASHER	$10.00 Order
35	675000684	FASTENER BUTTON	$9.73 Order
36	custom	FASTENER BUTTON6,5X18	$0.00 Order
39	670293482	DASHBOARD AMBIENT LIGHT	$57.85 Order
40	670158250	LH BRACKET	$0.00 Order
41	670158251	RH BRACKET	$0.00 Order
42	675000242	SCREWM6X25	$11.52 Order
43	670305154	GASKET	$134.26 Order
44	670154109	FASTENER BUTTON	$0.00 Order
45	673015637	CLIP	$9.20 Order
46	673017735	EMBLEM GRANCABRIO	$118.26 Order
47	673018018	WASHER	$0.00 Order
