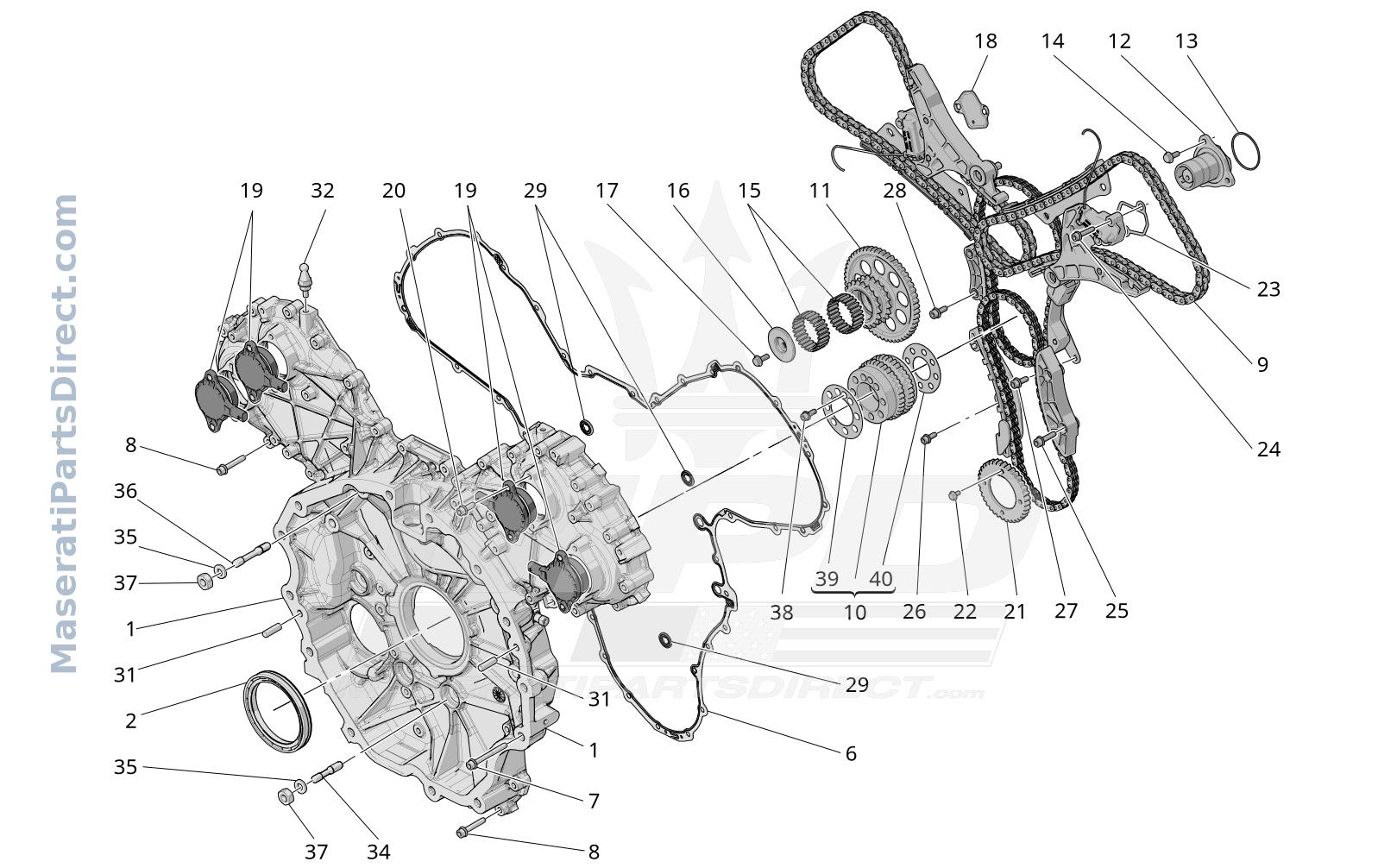

01.24 - 1 - TIMING

Select a part from the list to view details

Select a part from the list to view dimensions

Select a part from the list to view fitment information

Parts List

Ref	Part Number	Description	Price
1	670054289	REAR TIMING COVER	$1,449.34 Order
2	670051267	GASKET	$63.01 Order
6	670054416	GASKET	$202.27 Order
7	670051115	SCREW	$10.16 Order
8	670051111	SCREW	$10.00 Order
9	670053725	OIL PUMP AND TIMING SYSTEM ASSEMBLY	$0.00 Order
10	670053716	ENGINE SHAFT TOOTHED WHEEL	$0.00 Order
11	670053986	TRANSMISSION TOOTHED WHEEL	$0.00 Order
12	670050184	SUPPORT	$265.87 Order
13	670050416	GASKET	$10.00 Order
14	670050158	SCREW	$28.59 Order
15	670050109	ROLLER BEARING	$32.73 Order
16	670050185	SPACER BEARING	$36.43 Order
17	670050158	SCREW	$28.59 Order
18	670050993	GASKET	$11.15 Order
19	670053475	TIMING VARIATOR ACTUATOR	$116.89 Order
20	670051106	SCREW	$10.80 Order
21	670050973	OIL PUMP CONTROL TOOTHED WHEEL	$218.22 Order
22	670050159	SCREW	$20.48 Order
23	670050999	GASKET	$11.72 Order
24	670050150	SCREW	$11.40 Order
25	670050020	SCREW	$11.40 Order
26	670050148	SCREW	$11.40 Order
27	670050147	SCREW	$11.40 Order
28	670050149	SCREW	$11.40 Order
29	670051123	GASKET	$21.03 Order
31	675001406	PIN	$20.02 Order
32	670050027	BALL PIN	$28.13 Order
34	670050141	STUD	$69.04 Order
35	670051317	WASHER	$17.78 Order
36	670050140	STUD	$63.58 Order
37	670050071	NUT	$5.58 Order
38	670051281	SCREW	$0.00 Order
39	670053724	SHIM	$0.00 Order
40	670053723	SHIM	$0.00 Order
