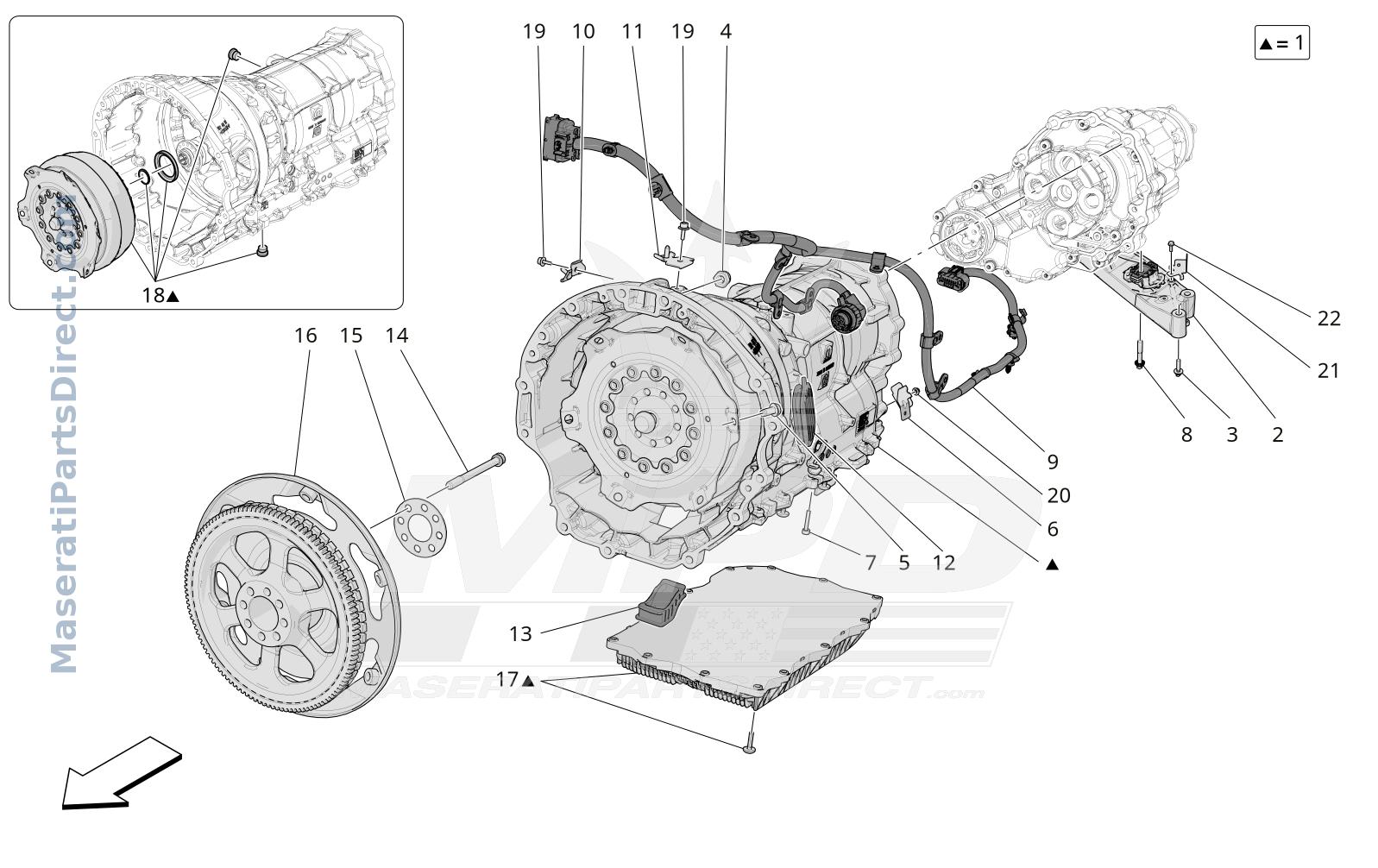

03.10 - 1 - GEARBOX HOUSINGS

Select a part from the list to view details

Select a part from the list to view dimensions

Select a part from the list to view fitment information

Parts List

Ref	Part Number	Description	Price
1	670298275	AUTOMATIC GEARBOX ASSEMBLY	$10,499.50 Order
2	670158935	GEARBOX MOUNTING CROSS MEMBER	$614.02 Order
3	675001345	SCREW	$11.55 Order
4	675000184	NUT	$4.68 Order
5	670005384	SCREW	$9.20 Order
6	670176314	BRACKET	$0.00 Order
7	675001868	SCREW	$10.00 Order
8	675001536	SCREW	$34.50 Order
9	670159236	AUTOMATIC GEARBOX WIRING HARNESS	$289.63 Order
10	670213311	BRACKET	$0.00 Order
11	670213312	BRACKET	$0.00 Order
12	675001862	PLUG	$50.73 Order
13	670003521	LOWER PLUG	$20.28 Order
14	670002933	SCREW	$14.00 Order
15	670002257	SHIM	$16.17 Order
16	670175078	ENGINE FLYWHEEL ASSEMBLY	$0.00 Order
17	673012203	OIL SUMP KIT	$307.43 Order
18	673012205	CONVERTER	$0.00 Order
19	675000662	SCREW	$4.86 Order
20	675002278	NUT	$0.00 Order
21	670296061	BRACKET	$0.00 Order
22	675001117	SCREW	$10.14 Order
