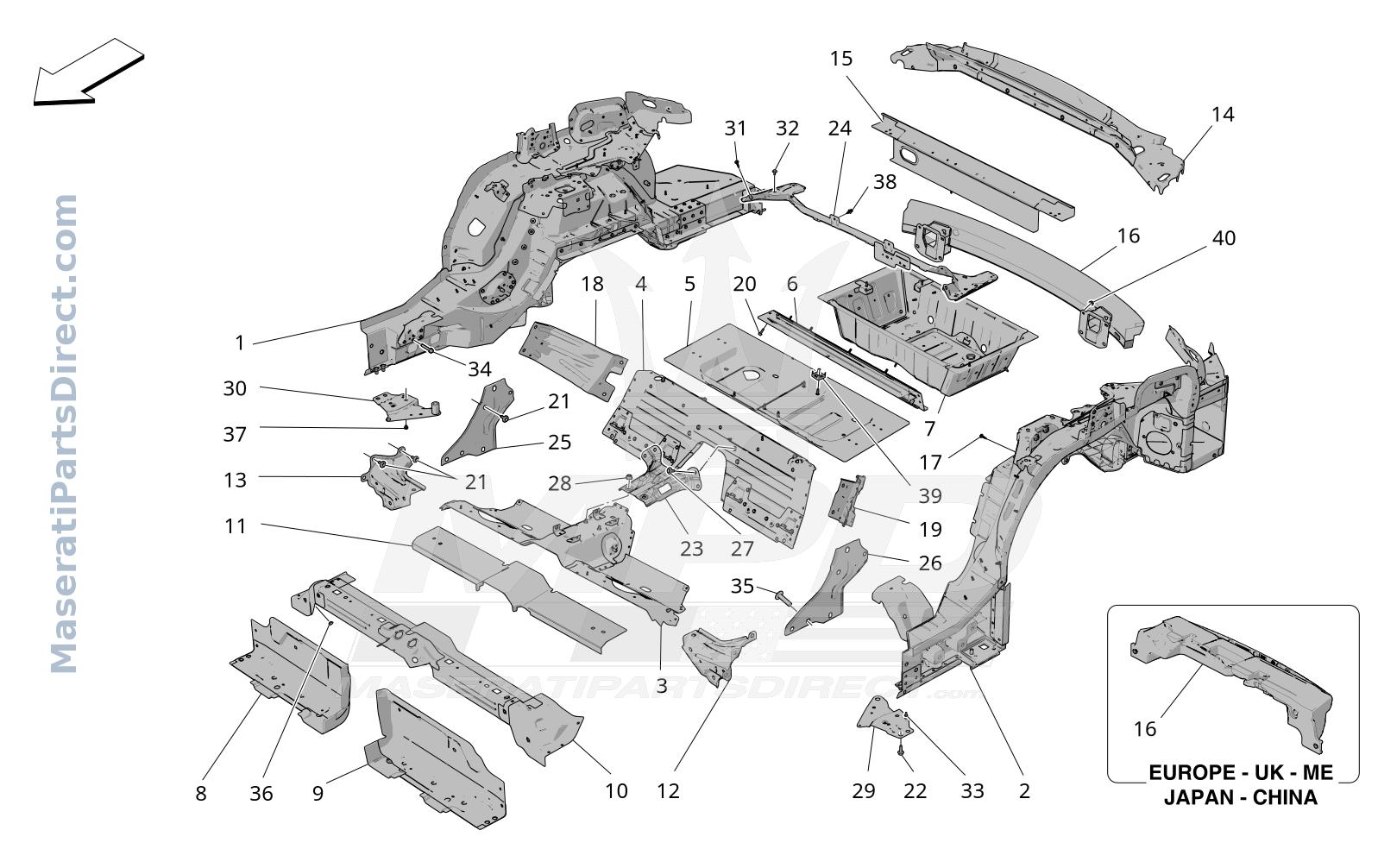

09.05 - 1 - REAR STRUCTURAL FRAMES AND SHEET PANELS

Select a part from the list to view details

Part Number:	-
Part Position:	-
Remarks:	-
Market:	-
Valid Assembly Range:	-
Valid Frame Range:	-
Valid Engine Range:	-
Valid Gearbox Range:	-
Includes:	-
Replaced By:	-
Camera Image:	-
PDF Link:	-
3D Model Link:	-

Select a part from the list to view dimensions

Length (cm):	-
Width (cm):	-
Height (cm):	-
Weight (kg):	-

Length (in):	-
Width (in):	-
Height (lbs):	-
Weight (lbm):	-

Select a part from the list to view fitment information

Parts List

Ref	Part Number	Description	Price
1	673016527	COMPLETE RH LONGITUDINAL MEMBER	$3,797.50 Order
2	673016526	COMPLETE LH LONGITUDINAL MEMBER	$0.00 Order
3	673015419	INTERMEDIATE REAR FLOOR	$0.00 Order
4	673016530	REAR CROSS MEMBER	$0.00 Order
5	673016531	COMPLETE REAR FLOOR	$0.00 Order
6	673016529	FRONT LONGITUDINAL MEMBER CONNECTING CROSS MEMBER	$0.00 Order
7	673016528	COMPLETE REAR FLOOR	$0.00 Order
8	673015431	RH FLOOR CLOSING PLATE	$0.00 Order
9	673015430	LH FLOOR CLOSING PLATE	$0.00 Order
10	673016525	REAR CROSS PIECE MEMBER	$570.07 Order
11	673015424	REAR CROSS MEMBER	$0.00 Order
12	670219117	LH PILLAR CONNECTION BRACKET	$0.00 Order
13	670219116	RH PILLAR CONNECTION BRACKET	$0.00 Order
14	673016551	UPPER CROSS MEMBER CONNECTING SIDE MEMBERS	$0.00 Order
15	673015428	REAR CROSS MEMBER CONNECTING SIDE MEMBERS	$572.27 Order
16	670159834	REAR CROSS MEMBER	$688.08 Order
17	670174395	SCREW	$0.00 Order
18	670309539	RH REAR WHEELHOUSE FRONT BRACKET	$0.00 Order
19	670219069	LH REAR WHEELHOUSE FRONT BRACKET	$0.00 Order
20	675000736	SCREW	$0.00 Order
21	675002307	SCREW	$0.00 Order
22	675001245	SCREW	$11.95 Order
23	670219076	REAR REINFORCEMENT	$0.00 Order
24	670219080	REAR CROSS MEMBER ASSEMBLY	$0.00 Order
25	670219142	RH BRACKET	$0.00 Order
26	670219144	LH BRACKET	$0.00 Order
27	675000174	SCREWM8	$11.52 Order
28	14059311	NUTM 8	$9.17 Order
29	670219092	LH CAR LIFTING BRACKET	$0.00 Order
30	670219091	RH CAR LIFTING BRACKET	$0.00 Order
31	670295893	SCREW	$0.00 Order
32	675001061	SCREW	$10.40 Order
33	670002185	THREADED RIVET	$11.10 Order
34	670213851	SCREW	$0.00 Order
35	670174430	SCREW	$0.00 Order
36	675001769	PLUG	$9.84 Order
37	670295456	PLUG	$0.00 Order
38	675001266	PIN	$14.14 Order
39	675007422	INSERT	$0.00 Order
40	675002158	NUT	$0.00 Order
