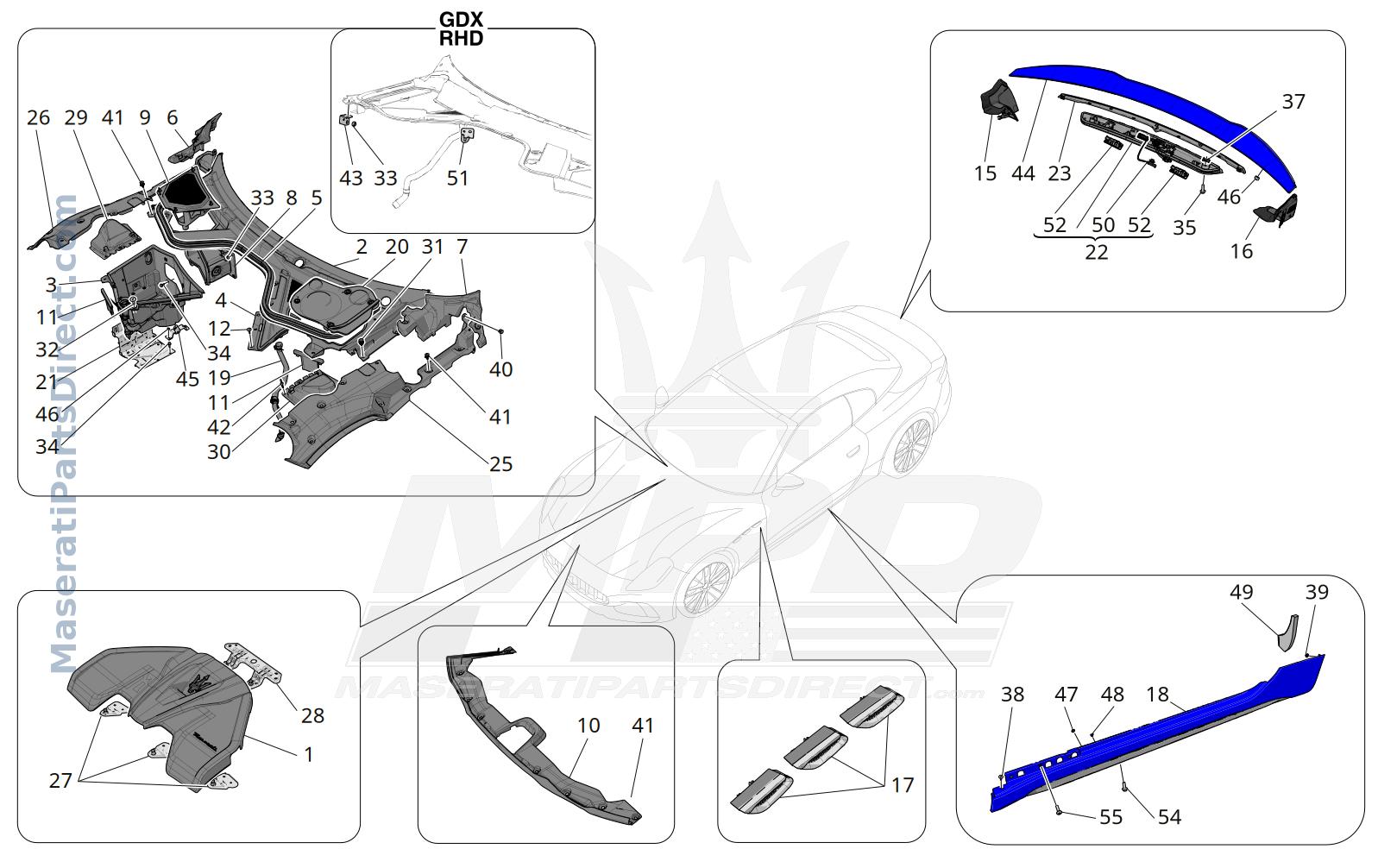

09.15 - 1 - SHIELDS, TRIMS AND COVERING PANELS

Select a part from the list to view details

Part Number:	-
Part Position:	-
Remarks:	-
Market:	-
Valid Assembly Range:	-
Valid Frame Range:	-
Valid Engine Range:	-
Valid Gearbox Range:	-
Includes:	-
Replaced By:	-
Camera Image:	-
PDF Link:	-
3D Model Link:	-

Select a part from the list to view dimensions

Length (cm):	-
Width (cm):	-
Height (cm):	-
Weight (kg):	-

Length (in):	-
Width (in):	-
Height (lbs):	-
Weight (lbm):	-

Select a part from the list to view fitment information

Parts List

Ref	Part Number	Description	Price
1	670296644	ENGINE AESTHETIC SHIELD	$0.00 Order
2	custom	UNDER WINDSCREEN PLATE	$0.00 Order
3	670296142	FACILITY TRAY	$535.25 Order
4	670158793	WATER DRAIN TANK	$0.00 Order
5	670158652	GASKET	$0.00 Order
6	670296015	RH PAD	$105.92 Order
7	670296016	LH PAD	$105.92 Order
8	670158787	AIR DUCT	$264.62 Order
9	670158789	SHIELD	$262.58 Order
10	670179262	FRONT GUARD	$316.57 Order
11	670178846	PANEL	$20.41 Order
12	675000057	SCREW	$8.64 $7.34 In Stock
15	custom	RH COVERING	$0.00 Order
16	custom	LH COVERING	$0.00 Order
17	custom	LH LATERAL AIR VENT	$0.00 Order
17	custom	LH LATERAL AIR VENT	$0.00 Order
18	673015323	LH SIDE SKIRT	$768.61 Order
18	673015324	RH SIDE SKIRT	$768.75 Order
19	670213824	RH WATER OUTLET SLEEVE	$0.00 Order
20	670296282	PLUG	$0.00 Order
21	670174538	UNDERWINDSCREEN PLATE BRACKET	$0.00 Order
22	custom	BEZEL LICENSE PLATE LAMP	$0.00 Order
23	custom	LICENSE PLATE LAMP MOULDING	$0.00 Order
25	670296122	LH GUARD	$243.27 Order
26	670296121	RH GUARD	$243.27 Order
27	670179736	FIXING BRACKET	$0.00 Order
28	670179738	FIXING BRACKET	$0.00 Order
29	670179260	RH COVER	$68.50 Order
30	670179261	LH COVER	$0.00 Order
31	675001266	PIN	$14.14 Order
32	675002257	SCREW	$0.00 Order
33	675001917	NUT	$0.00 Order
34	675002253	SCREW	$9.17 Order
35	670214755	SCREW	$0.00 Order
37	675000648	BRACKET	$10.80 Order
38	675001883	SCREW	$9.17 Order
39	675001921	NUT	$2.99 Order
40	670014562	FASTENER BUTTON	$11.52 Order
41	675000058	FASTENER BUTTON	$10.76 Order
42	670293107	FASTENER BUTTON	$0.00 Order
45	670214331	BRACKET	$0.00 Order
47	670036926	CLIP	$9.84 Order
49	670296456	PAD	$71.65 Order
50	675002213	TRUNK HANDLE	$72.57 Order
52	670158875	LICENSE PLATE LIGHT ASSEMBLY	$0.00 Order
55	670298524	SCREW	$0.00 Order
