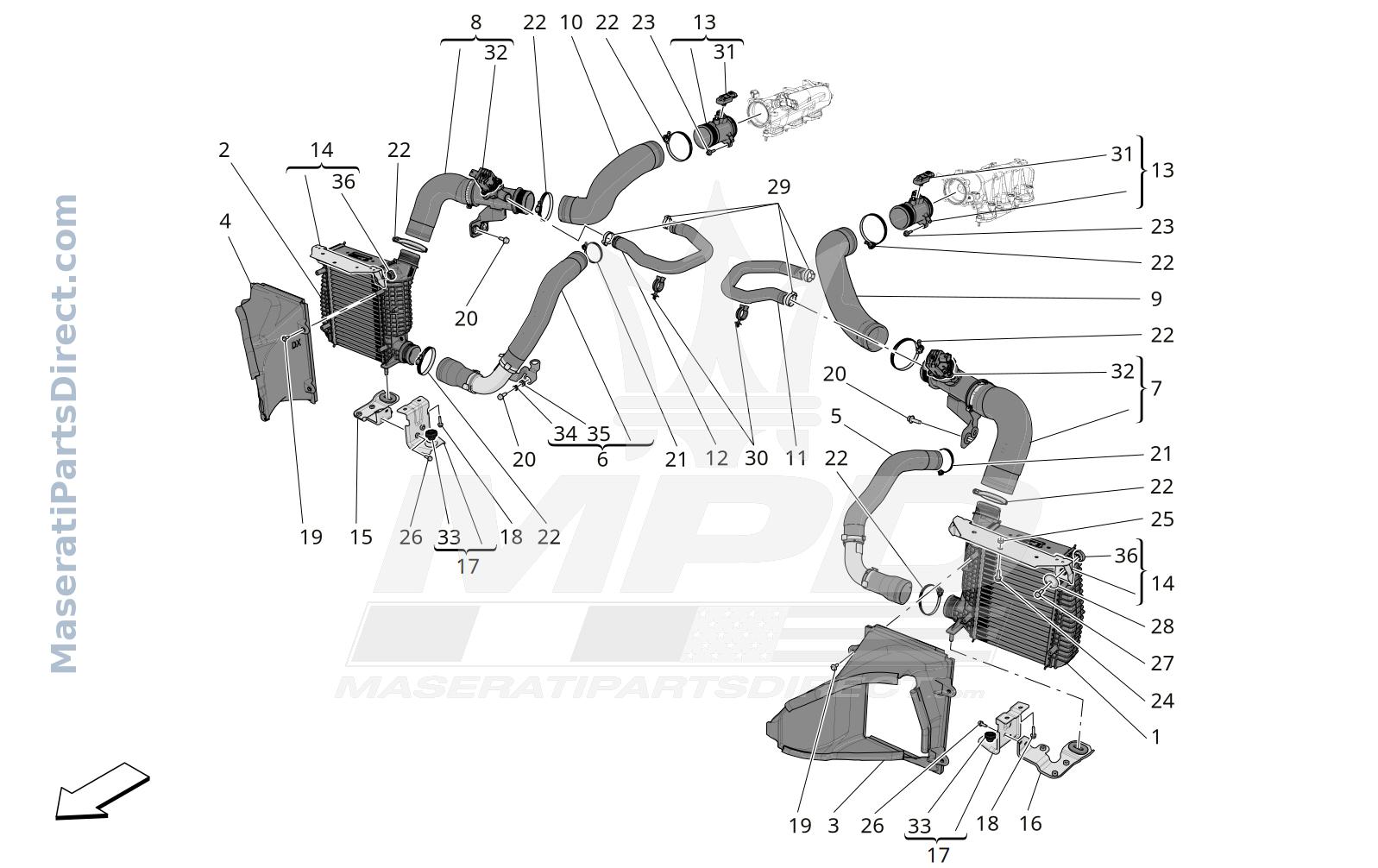

01.32 - 1 - INTERCOOLER SYSTEM

Select a part from the list to view details

Select a part from the list to view dimensions

Select a part from the list to view fitment information

Parts List

Ref	Part Number	Description	Price
1	670176541	LH INTERCOOLER	$649.34 Order
2	670176542	RH INTERCOOLER	$649.34 Order
3	670158445	LH SIDE AIR DUCT	$208.05 Order
4	670158444	RH SIDE AIR DUCT	$208.05 Order
5	670158492	SLEEVE FROM TURBINE TO LH INTERCOOLER	$912.11 Order
6	670158491	SLEEVE FROM TURBINE TO RH INTERCOOLER	$912.11 Order
7	670292679	LH HOSE CLEAN AIR FIRST SECTION	$791.35 Order
8	670292677	RH HOSE CLEAN AIR FIRST SECTION	$0.00 Order
9	670159554	LH CLEAN AIR SLEEVE - SECOND SECTION	$0.00 Order
10	670158493	RH CLEAN AIR SLEEVE - SECOND SECTION	$0.00 Order
11	670158528	LH SLEEVE	$0.00 Order
12	670158527	RH SLEEVE	$0.00 Order
13	670160026	RIGID PIPE	$1,439.78 Order
14	670158502	BRACKET	$99.89 Order
15	670159636	RH LOWER BRACKET	$95.82 Order
16	670159401	LH LOWER BRACKET	$93.52 Order
17	670158506	RADIATOR LOWER BRACKET	$97.22 Order
18	675001239	SCREW	$11.55 Order
19	675000354	SCREW	$6.93 Order
20	675001078	SCREW	$10.80 Order
21	675000754	COLLARD.68	$19.76 Order
22	675000362	COLLARD.78	$11.95 In Stock
23	675001034	SCREW	$10.16 Order
24	675001119	SCREW	$8.00 Order
25	675001307	NUT	$9.72 Order
26	675001358	SCREW	$10.14 Order
27	675001117	SCREW	$10.14 Order
28	675000409	CUP	$9.24 Order
29	675002295	COLLAR	$9.72 Order
30	670213515	PIPE RETAINING CLIP	$0.00 Order
31	675000014	PRESSURE TRANSMITTER	$237.27 Order
32	675001051	MODULAR SOLENOID VALVE	$216.68 Order
33	675000545	BUSHING	$12.11 Order
34	675000017	SPACER	$14.56 Order
35	675000016	FLEXIBLE PAD	$21.48 Order
36	675000201	FLEXIBLE PAD	$19.15 Order
