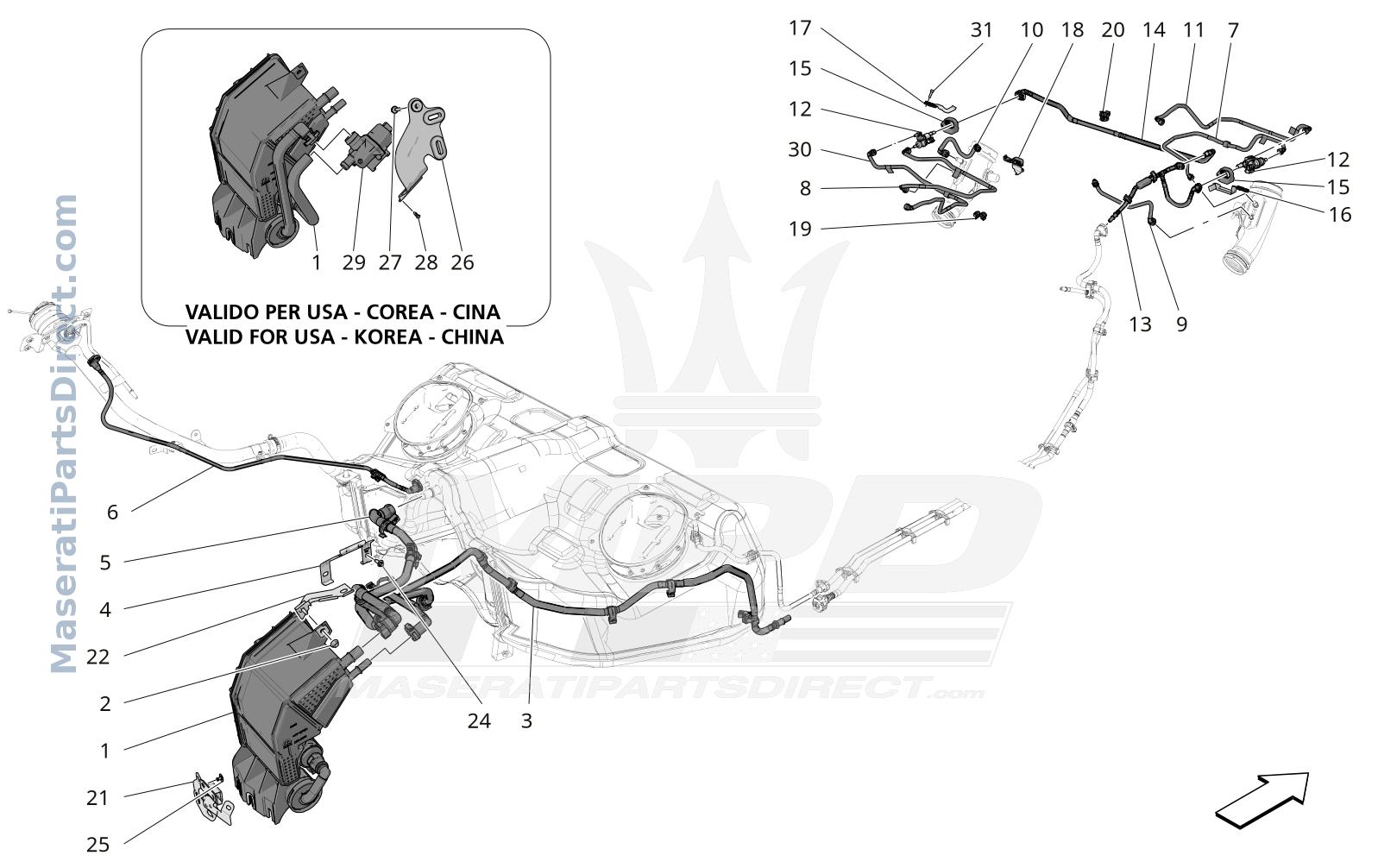

01.44 - 1 - FUEL VAPOUR RECIRCULATION SYSTEM

Select a part from the list to view details

Select a part from the list to view dimensions

Select a part from the list to view fitment information

Parts List

Ref	Part Number	Description	Price
1	670158430	FUEL VAPOUR FILTER	$210.44 Order
2	675000095	NUTM6	$8.64 Order
3	670158435	PIPE FROM FUEL VAPOUR FILTER TO UNDERFLOOR	$0.00 Order
4	670158412	CLIP	$0.00 Order
5	670158433	VENT PIPE	$0.00 Order
6	670303599	VAPOUR PIPE	$0.00 Order
7	670158521	RH HOSE FROM SLEEVE TO SOLENOID VALVE	$0.00 Order
8	670158523	LH HOSE FROM SLEEVE TO SOLENOID VALVE	$0.00 Order
9	670158525	RH VAPOUR PIPE	$0.00 Order
10	670158526	LH STEAM TUBE	$0.00 Order
11	670158529	RH TUBE FROM SOLENOID VALVE TO PLENUM CHAMBER	$0.00 Order
12	670162028	SOLENOID VALVE	$86.86 In Stock
13	670158427	PIPE PURGE CANISTER ENGINE COMPARTMENT	$0.00 Order
14	670158428	TUBE FUEL VAPOR	$0.00 Order
15	675001080	RUBBER	$26.13 Order
16	670303120	RH SOLENOID VALVE BRACKET	$0.00 Order
17	670303119	LH SOLENOID VALVE BRACKET	$0.00 Order
18	670159756	BRACKET	$0.00 Order
19	675001998	CLIP	$11.25 Order
20	675000587	CLIP	$11.15 Order
21	670162226	BRACKET	$90.83 Order
22	670162227	BRACKET	$0.00 Order
24	675000144	SCREW	$14.28 Order
25	675002302	RIVET	$0.00 Order
26	670158432	BRACKET	$88.67 Order
27	670293261	SCREW	$0.00 Order
28	675001065	SCREW	$10.14 Order
29	670002246	DIAGNOSTICS PUMP	$197.91 In Stock
30	670158530	LH TUBE FROM SOLENOID VALVE TO PLENUM CHAMBER	$0.00 Order
31	675001353	SCREW	$11.40 Order
