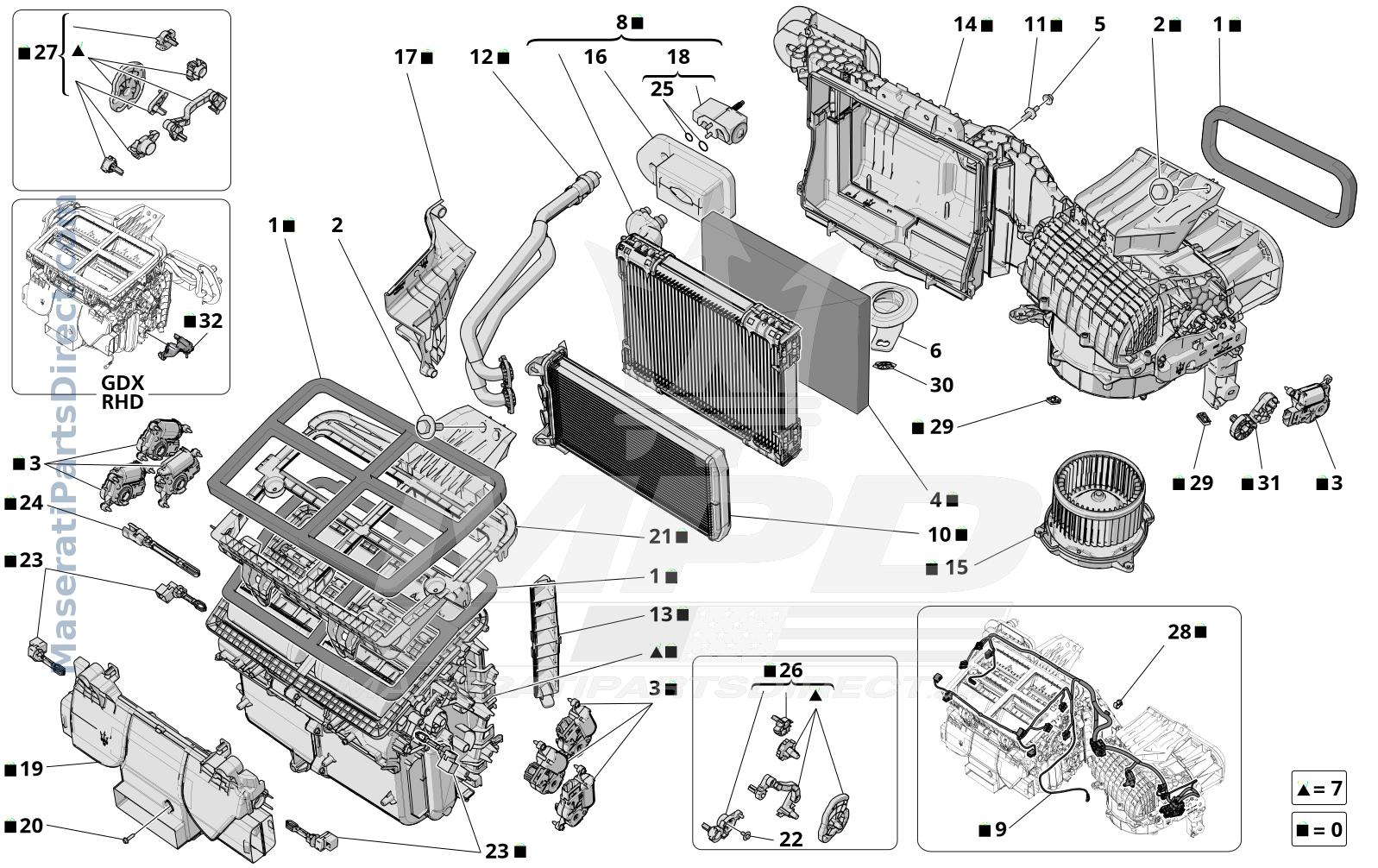

08.41 - 1 - A/C UNIT: DASHBOARD DEVICES

Select a part from the list to view details

Select a part from the list to view dimensions

Select a part from the list to view fitment information

Parts List

Ref	Part Number	Description	Price
0	670296329	AIR CONDITIONING ASSEMBLY	$0.00 Order
1	673014589	GASKET KIT	$0.00 Order
2	670220592	SCREW	$0.00 Order
3	670104418	ACTUATOR	$116.89 Order
4	673013332	POLLEN FILTER	$41.80 In Stock
5	670293601	NUT	$0.00 Order
6	670158161	CONDENSATION DRAIN PIPE	$23.35 Order
7	673014094	CENTRAL BODY	$0.00 Order
8	673015318	EVAPORATOR ASSEMBLY	$0.00 Order
9	673014587	WIRING HARNESS	$0.00 Order
10	673009324	HEATER	$277.52 Order
11	673009338	PIN	$0.00 Order
12	673014595	HEATER HOSE KIT	$0.00 Order
13	673014597	COVER FILTER	$99.06 Order
14	673014593	AIR INLET MODULE	$0.00 Order
15	673009319	ELECTROFAN	$776.46 Order
16	673014590	CPL. TXV GASKET KIT	$0.00 Order
17	673014596	COVER FOR PIPING	$0.00 Order
18	673009322	TXV KIT	$406.76 In Stock
19	673014591	REAR AIR DUCT	$0.00 Order
20	673009334	SCREW	$0.00 Order
21	673014592	AIR DUCT	$0.00 Order
22	673009335	SCREW	$0.00 Order
23	673009332	AIR TEMPERATURE SENSOR	$85.66 Order
24	673009331	EVAPORATOR SENSOR	$106.97 Order
25	673009339	GASKET KIT	$92.44 Order
26	673009326	RH KINEMATIC MECHANISM KIT	$66.71 Order
27	673009327	LH KINEMATIC MECHANISM KIT	$66.71 Order
28	673009337	RETAINING CLIP	$0.00 Order
29	673014588	FIXING KIT	$0.00 Order
30	675000411	WASHER	$14.81 Order
31	673009328	AIR INTAKE KINEMATIC MECHANISM KIT	$0.00 Order
