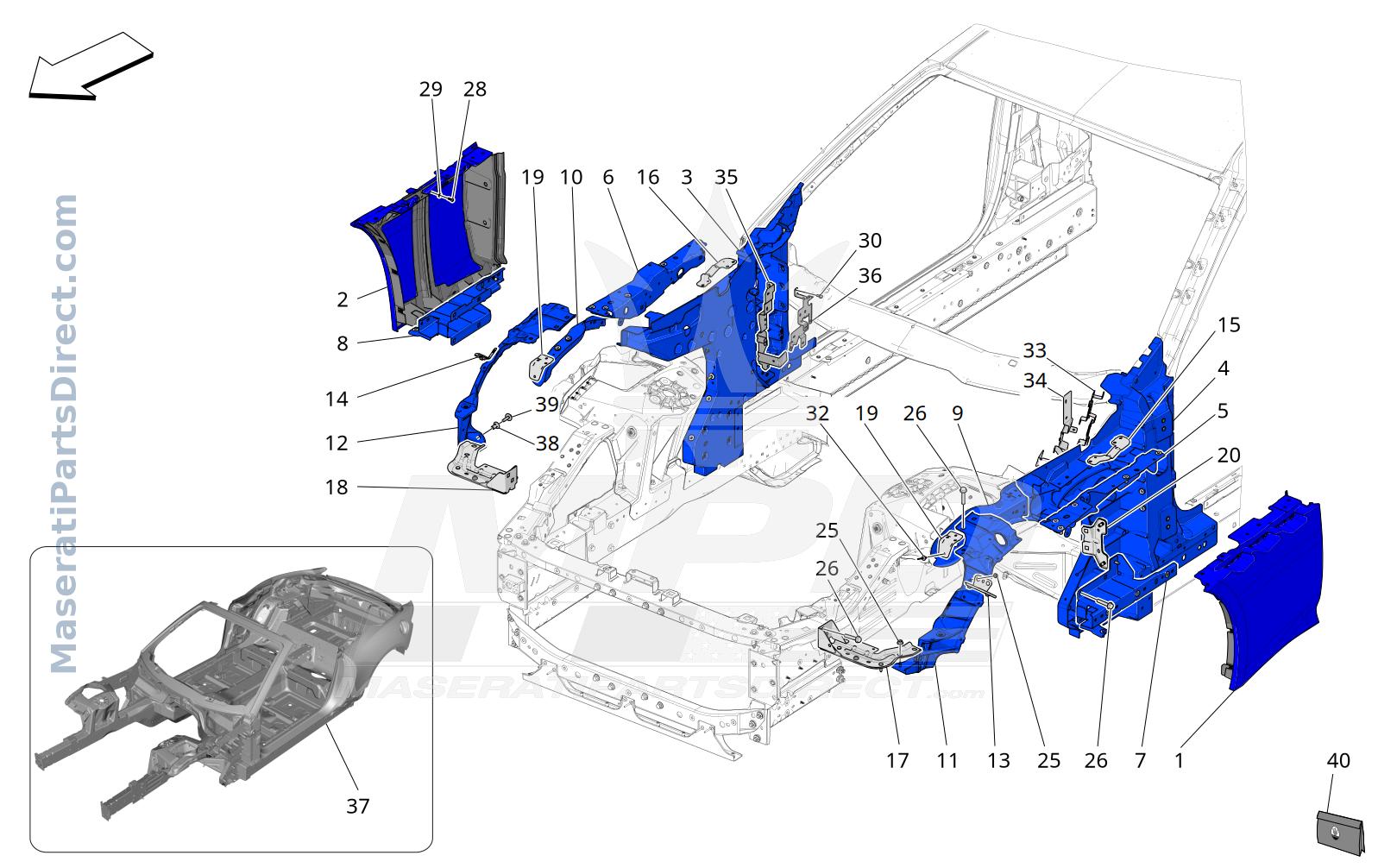

09.00 - 1 - BODYWORK AND FRONT OUTER TRIM PANELS

Select a part from the list to view details

Select a part from the list to view dimensions

Select a part from the list to view fitment information

Parts List

Ref	Part Number	Description	Price
1	673015326	LH FENDER BAND	$678.59 Order
2	673015325	RH FENDER BAND	$678.59 Order
3	670306755	COMPLETE R.H. PILLAR REINFORCEMENT	$0.00 Order
4	670306758	COMPLETE L.H. PILLAR REINFORCEMENT	$0.00 Order
5	670157905	LH FRONT FENDER BRACKET	$239.30 Order
6	670157908	RH FRONT FENDER BRACKET	$239.30 Order
7	670157906	LH BRACKET	$132.46 Order
8	670157909	RH BRACKET	$0.00 Order
9	673015451	COMPLETE LH UPPER STRUT BOX SECTION	$183.26 Order
10	673015450	COMPLETE RH UPPER STRUT BOX SECTION	$190.96 Order
11	673016849	LH REAR LIGHT HOUSING BASE ASSEMBLY	$503.85 Order
12	673016848	RH REAR LIGHT HOUSING BASE ASSEMBLY	$768.51 Order
13	670173047	LH FRONT BUMPER BRACKET	$103.59 Order
14	670177958	REINFORCEMENT BRACKET	$71.69 Order
15	670212819	LH BRACKET	$63.77 Order
16	670212818	RH BRACKET	$0.00 Order
17	673015458	LH FRONT CROSS MEMBER CONNECTION BRACKET	$174.79 Order
18	673015457	RH FRONT CROSS MEMBER CONNECTION BRACKET	$240.20 Order
19	670175130	BONNET PROP BRACKET	$29.70 Order
20	670157893	BRACKET	$87.02 Order
25	675002250	NUT	$9.84 Order
26	670178588	SCREW	$9.24 Order
28	675001940	SCREW	$9.72 Order
29	675000772	WASHER	$9.72 Order
30	675000087	SCREWM6X16	$7.65 Order
32	675000404	RIVET	$7.65 Order
33	670213306	LH LOWER BRACKET	$139.92 Order
34	670213305	LH UPPER BRACKET	$143.48 Order
35	670213308	RH UPPER BRACKET	$0.00 Order
36	670213309	RH LOWER BRACKET	$0.00 Order
37	670306762	BODYWORK ASSEMBLY	$0.00 Order
38	670174402	RIVET	$10.80 Order
39	675002125	SCREW	$10.62 Order
40	670362292	MUDGUARD FIXING KIT	$0.00 Order
