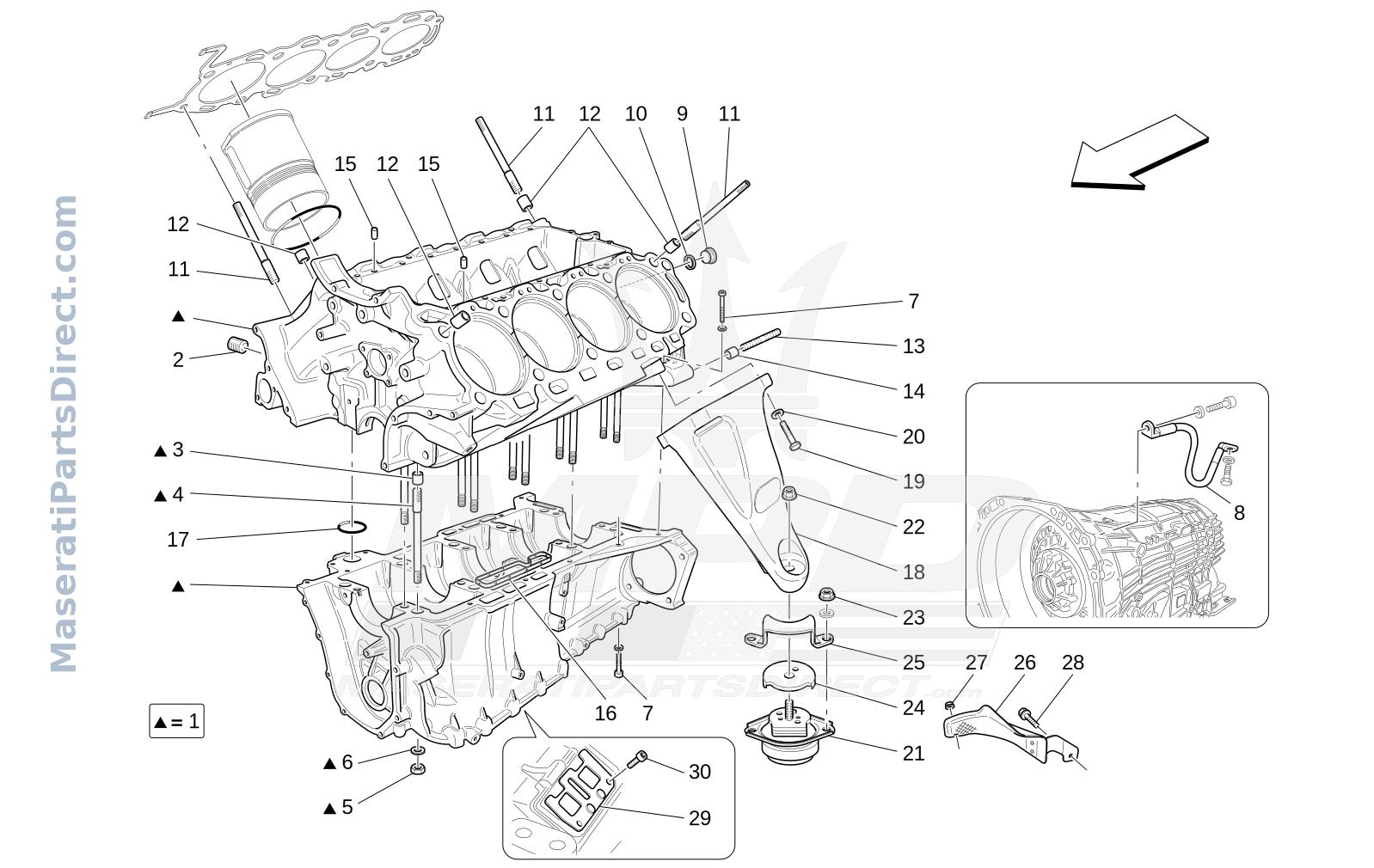

01.00 - 1 - CRANKCASE

Select a part from the list to view details

Part Number:	-
Part Position:	-
Remarks:	-
Market:	-
Valid Assembly Range:	-
Valid Frame Range:	-
Valid Engine Range:	-
Valid Gearbox Range:	-
Includes:	-
Replaced By:	-
Camera Image:	-
PDF Link:	-
3D Model Link:	-

Select a part from the list to view dimensions

Length (cm):	-
Width (cm):	-
Height (cm):	-
Weight (kg):	-

Length (in):	-
Width (in):	-
Height (lbs):	-
Weight (lbm):	-

Select a part from the list to view fitment information

Parts List

Ref	Part Number	Description	Price
0.0	980020009	CRANKCASE GASKET REVISION KIT	$0.00 Order
0.0	980020010	CRANKCASE GASKET REVISION KIT	$0.00 Order
0.0	739026040	ENGINE ASSEMBLY	$0.00 Order
0.0	980020011	HEAD OVERHAUL GASKET KIT	$0.00 Order
0.0	-	REFURBISHED ENGINEOpen a PHD ticket and specify vehicle VIN before ordering part no.	$0.00 Order
1.0	230733	ENGINE BLOCK	$0.00 Order
1.0	239671	ENGINE BLOCK	$0.00 Order
1.0	281182	ENGINE BLOCK	$0.00 Order
1.0	281187	ENGINE BLOCK	$0.00 Order
1.0	281173	ENGINE BLOCK	$0.00 Order
1.0	281178	ENGINE BLOCK	$0.00 Order
2.0	14325340	THREADED PLUG	$0.00 Order
3.0	176421	CENTERING DOWEL	$0.00 Order
4.0	217794	STUD	$0.00 Order
4.0	219800	STUD	$0.00 Order
4.0	217796	STUD	$0.00 Order
4.0	219801	STUD	$0.00 Order
5.0	133988	NUTM10	$0.00 Order
6.0	178348	WASHERD.10.2-20X2.4	$0.00 Order
7.0	231620	SCREWM6X25	$0.00 In Stock
7.0	231623	SCREWM6X40	$0.00 Order
8.0	268886	CABLE FOR ENGINE-FRAME EARTH	$0.00 Order
9.0	10275011 Replaced by: #10304511.0	THREADED PLUG	$0.00 Order
9.0	10304511	THREADED PLUG	$0.00 Order
10.0	10263460	GASKET	$0.00 Order
11.0	217968	STUD	$0.00 Order
12.0	185360	CENTERING DOWEL	$0.00 Order
13.0	13546234	STUD	$0.00 Order
13.0	13546434	STUD	$0.00 Order
14.0	100052	CENTERING DOWEL	$0.00 Order
15.0	177727	CENTERING DOWEL	$0.00 Order
16.0	231335	GASKET	$0.00 Order
16.0	236143	GASKET	$0.00 Order
17.0	140071	O.R. GASKET	$0.00 Order
18.0	222317	LH BRACKET FORMOTOR FIXING	$0.00 Order
18.0	222316	RH BRACKET FORMOTOR FIXING	$0.00 Order
19.0	11306934	SCREWTE M 10X1,25X 30	$0.00 Order
20.0	11190574	WASHERD.10.5-20X2.3	$0.00 Order
21.0	226572	ENGINE SUPPORT FLEXIBLE PAD	$0.00 Order
22.0	177018	NUT	$0.00 Order
23.0	177764	NUT	$0.00 Order
24.0	196590	UPPER PROTECTION FOR ENGINE PAD	$0.00 Order
25.0	198530	BRACKET	$0.00 Order
26.0	227526	LH HEAT SHIELD	$0.00 Order
26.0	227525	RH HEAT SHIELD	$0.00 Order
27.0	14058411	NUTM6	$0.00 Order
28.0	13833011	SCREW	$0.00 Order
29.0	255138	BLOW BY VALVE ASSEMBLY	$0.00 Order
30.0	14303123	SCREW	$0.00 Order
