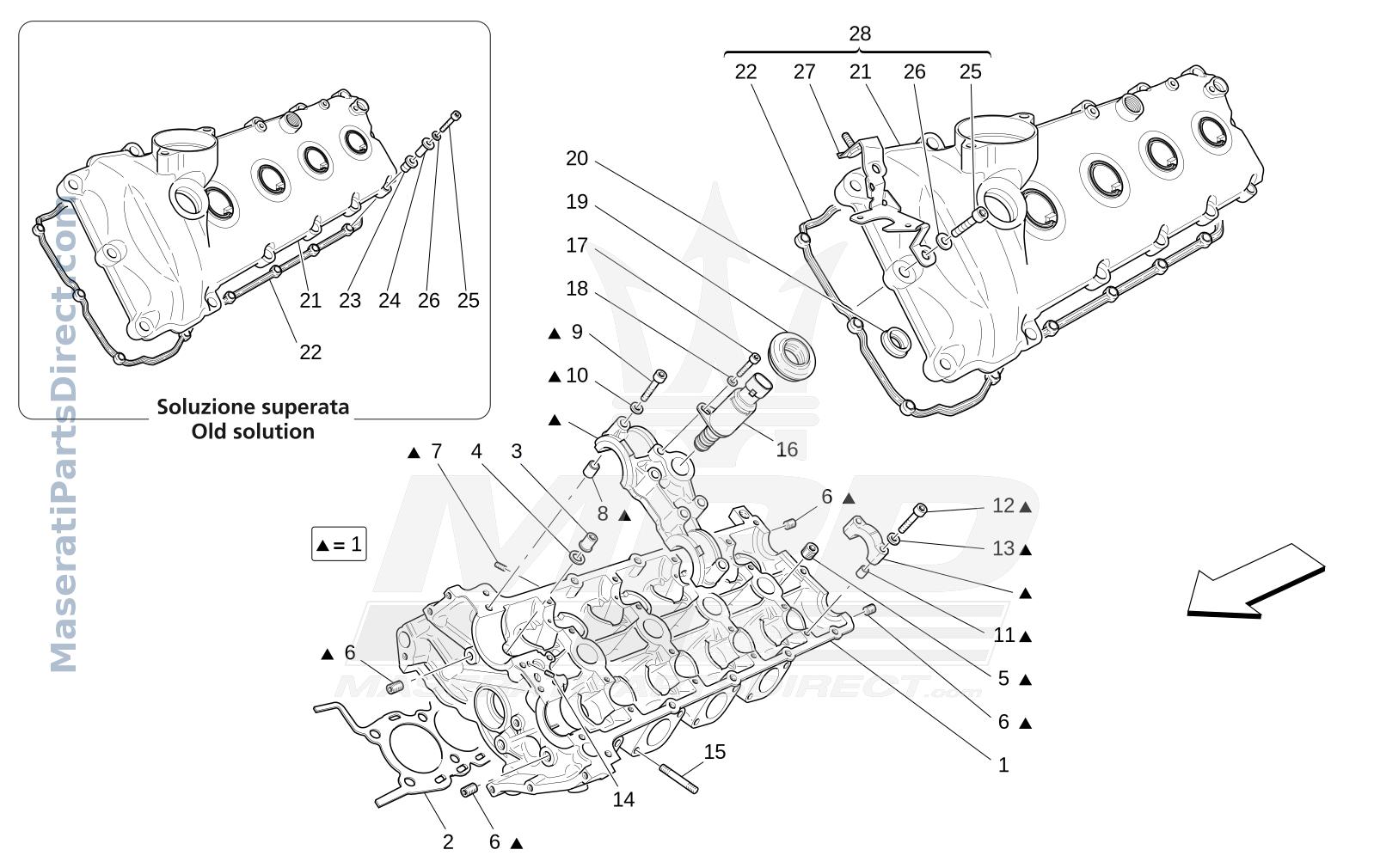

01.21 - 1 - LH CYLINDER HEAD

Select a part from the list to view details

Select a part from the list to view dimensions

Select a part from the list to view fitment information

Parts List

Ref	Part Number	Description	Price
1.0	261273	LH HEAD ASSEMBLY	$0.00 Order
1.0	271222	LH HEAD ASSEMBLY	$0.00 Order
2.0	266263	LH HEAD GASKET	$0.00 Order
3.0	183524 Replaced by: #303886.0	NUTM11	$0.00 Order
3.0	303886	NUT	$0.00 Order
4.0	151117	WASHERD.11.25-22X2.5	$0.00 Order
5.0	14325140	THREADED PLUG	$0.00 Order
6.0	14326001	THREADED PLUG	$0.00 Order
7.0	199760	THREADED PLUG	$0.00 Order
8.0	102725	CENTERING DOWEL	$0.00 Order
9.0	243721	SCREW	$0.00 Order
10.0	11197774	WASHERD.6.4-12X2.4	$0.00 Order
11.0	102725	CENTERING DOWEL	$0.00 Order
12.0	243719	SCREWM6X35	$0.00 Order
13.0	11197774	WASHERD.6.4-12X2.4	$0.00 Order
14.0	226414	DOWEL	$0.00 Order
15.0	13543424	STUD	$0.00 Order
16.0	269226 Replaced by: #296016.0	OIL PRESSURE CHECK VALVE	$0.00 Order
16.0	296016	OIL PRESSURE CHECK VALVE	$0.00 Order
16.0	296016	OIL PRESSURE CHECK VALVE	$0.00 Order
17.0	14304224	SCREW	$0.00 Order
18.0	11181574	WASHERD.5.3-11X0.9	$0.00 Order
19.0	228962	GASKET	$0.00 In Stock
20.0	223982	GASKET	$0.00 Order
21.0	272788	LH CYLINDER HEAD COVER	$0.00 Order
22.0	211220	LH HEAD COVER GASKET	$0.00 Order
22.0	264987	LH HEAD COVER GASKET	$0.00 In Stock
23.0	203102	RUBBER BUSHING	$0.00 Order
24.0	228598	BUSHING	$0.00 In Stock
25.0	156830	SCREW	$0.00 Order
26.0	11197774	WASHERD.6.4-12X2.4	$0.00 Order
27.0	265568	LH AIR VALVE FIXING BRACKET	$0.00 Order
28.0	980145470	LH HEAD COVER KIT	$0.00 Order
