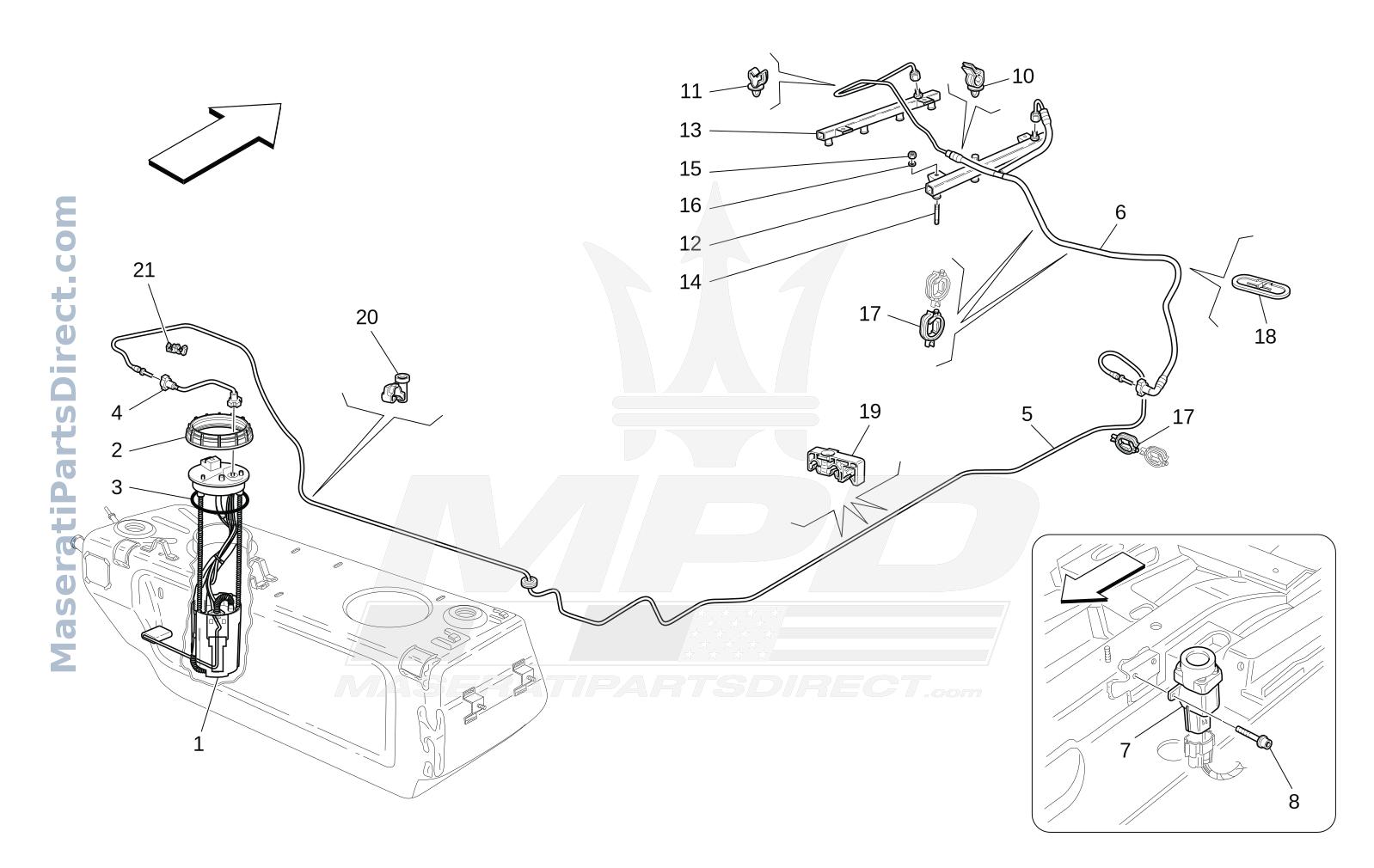

01.43 - 1 - FUEL PUMPS AND CONNECTION LINES

Select a part from the list to view details

Select a part from the list to view dimensions

Select a part from the list to view fitment information

Parts List

Ref	Part Number	Description	Price
1.0	214369	FUEL PUMP	$0.00 Order
2.0	181682	RING NUT	$0.00 Order
3.0	181681	GASKET	$0.00 Order
4.0	219391	FUEL DELIVERY TUBE	$0.00 Order
5.0	228736	FUEL PIPE FROM PUMP TO CONNECTION	$0.00 Order
6.0	260077	FUEL DELIVERY TUBE FROM CONNECTION TO ENGINE	$0.00 Order
7.0	163675	INERTIA SWITCH	$0.00 Order
8.0	13355424	SCREWM5X18	$0.00 Order
10.0	226603	CLIP	$0.00 Order
11.0	198271	CLIP	$0.00 Order
12.0	215338	RH FUEL PIPE WITH INJECTORS	$0.00 Order
13.0	215337	LH FUEL PIPE WITH INJECTORS	$0.00 Order
14.0	13516824	STUD	$0.00 Order
15.0	16102314	NUTM8	$0.00 Order
16.0	11198074	WASHERD.8.5-15X1.8	$0.00 Order
17.0	191907	CLIP	$0.00 Order
18.0	221727	WATER PIPE GASKET	$0.00 Order
19.0	213603	CLIP	$0.00 Order
19.0	233484	CLIP	$0.00 Order
20.0	201426	CLIP	$0.00 Order
21.0	238072	CLIP	$0.00 Order
