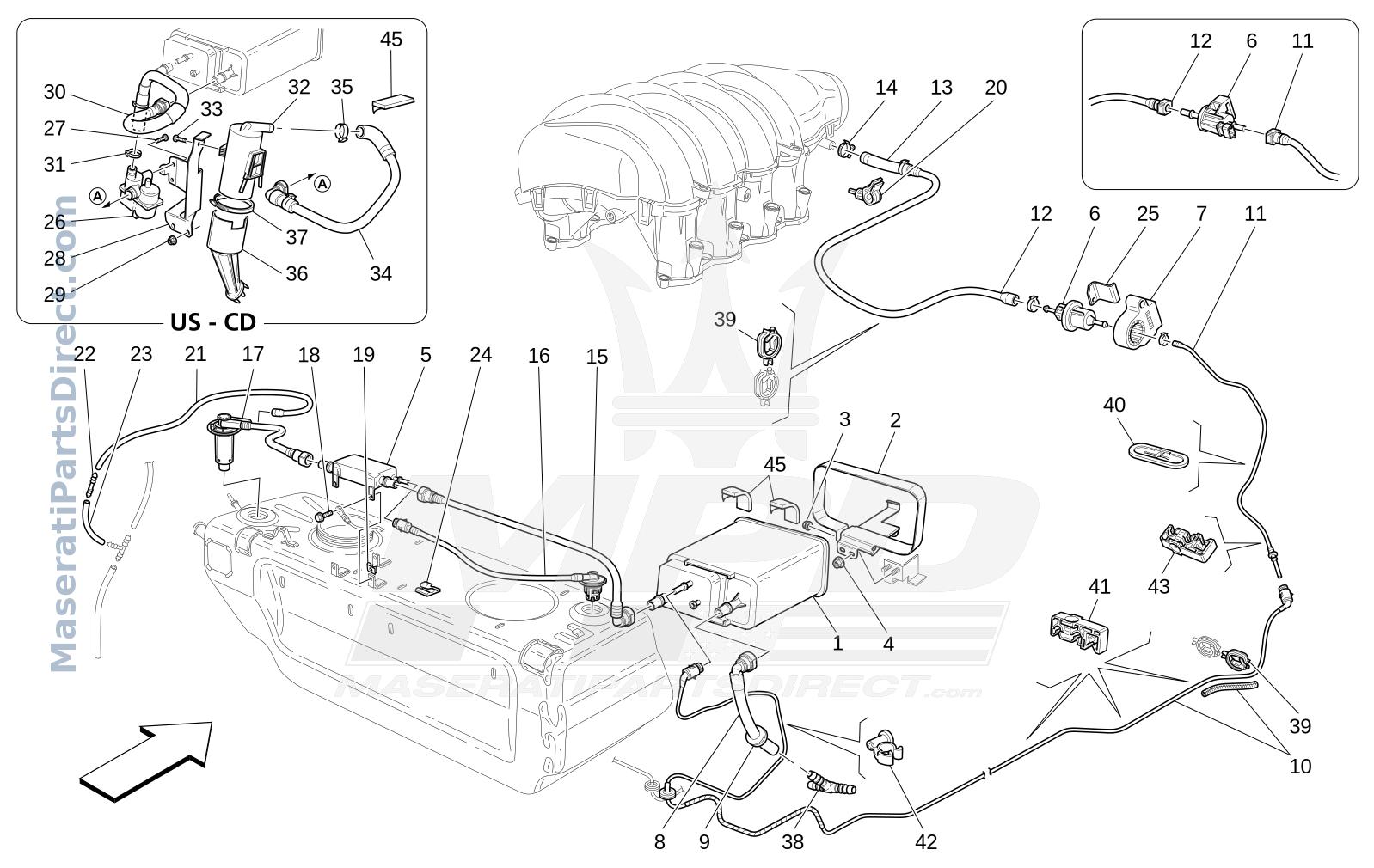

01.44 - 1 - FUEL VAPOUR RECIRCULATION SYSTEM

Select a part from the list to view details

Select a part from the list to view dimensions

Select a part from the list to view fitment information

Parts List

Ref	Part Number	Description	Price
1.0	220074	FUEL VAPOUR FILTER	$0.00 Order
2.0	232806	FUEL VAPOR FILTER SUPPORT BRACKET	$0.00 Order
3.0	14040611	NUT	$0.00 Order
4.0	14040611	NUT	$0.00 Order
5.0	228802	FUEL VAPOUR SEPARATOR	$0.00 Order
6.0	237683	WASHER VALVE	$0.00 In Stock
7.0	174623	BUFFER FOR SUPPORT	$0.00 Order
10.0	216655	PIPE FROM FUEL VAPOUR FILTER TO WHEEL COMPARTMENT	$0.00 Order
11.0	241365	VAPOR PIPE	$0.00 Order
12.0	241362	VAPOR PIPE	$0.00 Order
13.0	204968	SLEEVE	$0.00 Order
14.0	13433570	SCREW COLLAR	$0.00 Order
15.0	192210	PIPE FROM SEPARATOR TO FUEL VAPOUR FILTER	$0.00 Order
16.0	192100	EXHAUST VALVE WITH PIPE	$0.00 Order
17.0	217194	MULTIFUNCTION VALVE WITH PIPE	$0.00 Order
18.0	16296924	SCREW	$0.00 Order
19.0	14189071	BRACKET	$0.00 Order
20.0	198264	CLIP	$0.00 Order
21.0	228959	PIPE	$0.00 Order
22.0	204955	TWO-WAY UNION	$0.00 Order
23.0	68085100	PIPE	$0.00 Order
24.0	198671	CLIP	$0.00 Order
26.0	251288	DIAGNOSTICS PUMP	$0.00 In Stock
27.0	15958701	SCREW	$0.00 Order
28.0	208567	BRACKET	$0.00 Order
29.0	14040611	NUT	$0.00 Order
30.0	237073	PIPE FROM FUEL VAPOUR FILTER TO DIAGNOSTIC PUMP	$0.00 Order
31.0	13432670	COLLAR	$0.00 Order
32.0	183221	DIAGNOSTICS PUMP FILTER	$0.00 Order
33.0	15958701	SCREW	$0.00 Order
34.0	208569	PIPE FROM OBD PUMP TO FILTER	$0.00 Order
35.0	13433370	COLLAR	$0.00 Order
36.0	205330	AIR INTAKE HOSE FOR DIAGNOSTIC PUMP FILTER	$0.00 Order
37.0	13000890	SCREW COLLAR	$0.00 Order
39.0	191907	CLIP	$0.00 Order
40.0	221727	WATER PIPE GASKET	$0.00 Order
41.0	213603	CLIP	$0.00 Order
42.0	201426	CLIP	$0.00 Order
43.0	195052	CLIP	$0.00 Order
45.0	229260	RUBBER THICKNESS	$0.00 Order
