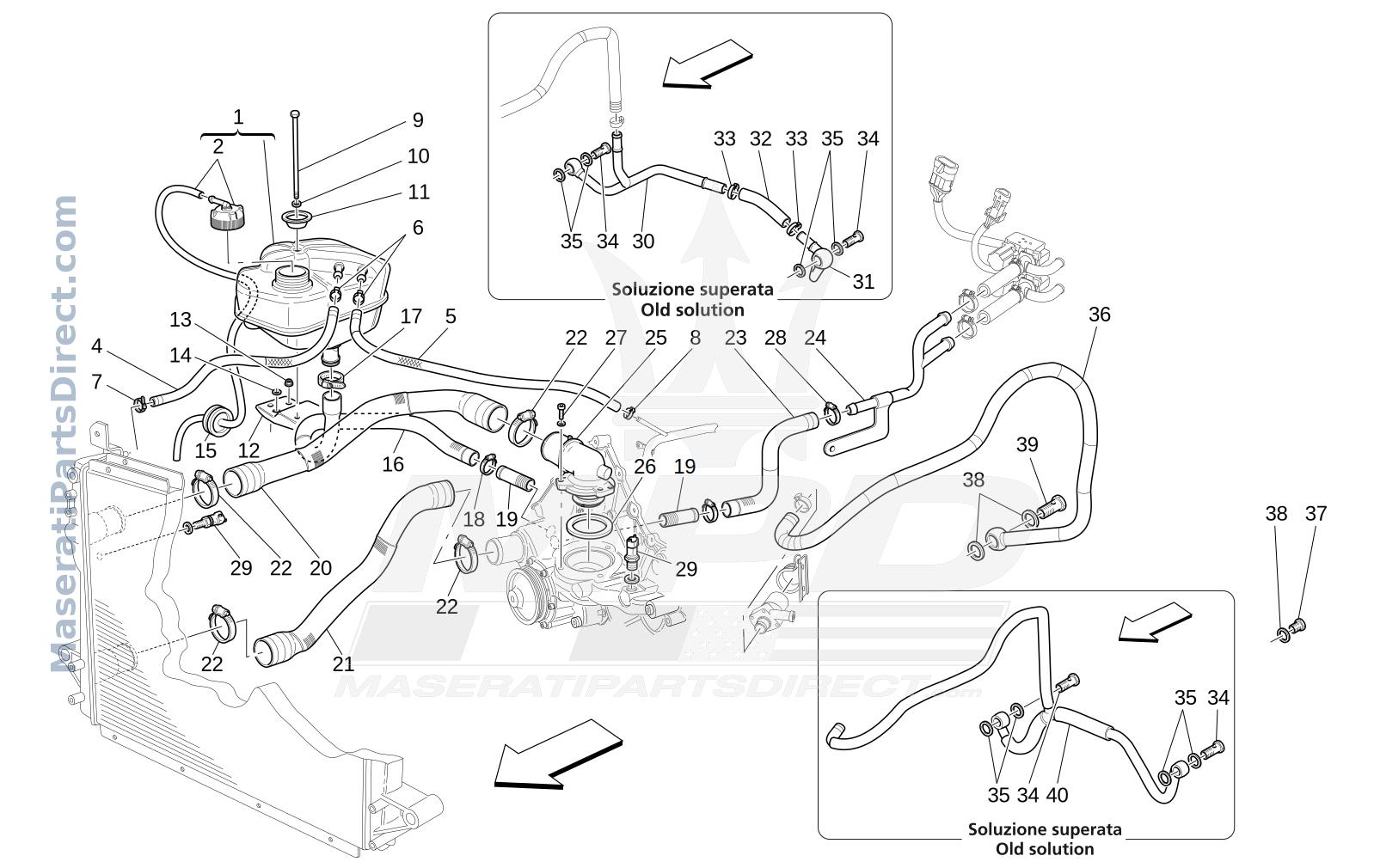

01.71 - 1 - COOLING SYSTEM: NOURICE AND LINES

Select a part from the list to view details

Part Number:	-
Part Position:	-
Remarks:	-
Market:	-
Valid Assembly Range:	-
Valid Frame Range:	-
Valid Engine Range:	-
Valid Gearbox Range:	-
Includes:	-
Replaced By:	-
Camera Image:	-
PDF Link:	-
3D Model Link:	-

Select a part from the list to view dimensions

Length (cm):	-
Width (cm):	-
Height (cm):	-
Weight (kg):	-

Length (in):	-
Width (in):	-
Height (lbs):	-
Weight (lbm):	-

Select a part from the list to view fitment information

Parts List

Ref	Part Number	Description	Price
1.0	296547	EXPANSION TANK ASSEMBLY	$0.00 In Stock
2.0	980145477	PLUG FOR CPL TANK	$0.00 Order
4.0	230562	VENT PIPE FROM EXPANSION TANK TO RADIATOR	$0.00 Order
5.0	241141	VENT PIPE FROM EXPANSION TANK TO BUNDY	$0.00 Order
6.0	13125470	COLLAR	$0.00 Order
7.0	13000190	SCREW COLLAR	$0.00 Order
8.0	13000390	SCREW COLLAR	$0.00 Order
9.0	60607472	SCREW	$0.00 Order
10.0	12601274	WASHERD. 6,40-12X 0,5	$0.00 Order
11.0	82404496	CUP	$0.00 Order
12.0	228422	BRACKET	$0.00 Order
13.0	14065921	NUT	$0.00 Order
14.0	12646634	WASHER	$0.00 Order
15.0	228047	CABLE BUSHING	$0.00 Order
16.0	227136	PIPE FROM NOURICE TO WATER PUMP	$0.00 Order
17.0	13000590	SCREW COLLAR	$0.00 Order
18.0	13000190	SCREW COLLAR	$0.00 Order
19.0	228438	THREADED UNION	$0.00 Order
20.0	237593	DELIVERY PIPE FROM ENGINE TO RADIATOR	$0.00 Order
21.0	237594	RETURN PIPE FROM RADIATOR TO ENGINE	$0.00 Order
22.0	13000790	SCREW COLLAR	$0.00 Order
23.0	69418200	RUBBER HOSE TO WATER PUMP	$0.00 Order
24.0	69417100	RIGID PIPE	$0.00 Order
25.0	230890	THERMOSTAT COVER WITH PRESSURE GAUGE	$0.00 Order
26.0	137873	GASKET	$0.00 In Stock
27.0	231617	SCREWM6X18	$0.00 Order
28.0	13097090	COLLAR	$0.00 Order
29.0	180137	WATER TEMPERATURE SENSOR	$0.00 Order
30.0	224788 Replaced by: #240324.0	WATER PIPE FROM R.H. CYLINDER HEAD	$0.00 Order
30.0	240324	WATER PIPE FROM R.H. CYLINDER HEAD	$0.00 Order
31.0	240323	WATER PIPE FROM L.H. CYLINDER HEAD	$0.00 Order
32.0	227489	SLEEVE	$0.00 Order
33.0	178053	CLAMP	$0.00 Order
34.0	203787	FILLER NECK	$0.00 Order
35.0	10259960	GASKET	$0.00 Order
36.0	241253	WATER PIPE FROM CYLINDER HEAD	$0.00 Order
37.0	280597	THREADED PLUG	$0.00 Order
38.0	10259960	GASKET	$0.00 Order
39.0	203787	FILLER NECK	$0.00 Order
40.0	240318	WATER PIPE FROM CYLINDER HEAD	$0.00 Order
