| Ref | Part Number | Description | Price | Qty | |
|---|---|---|---|---|---|
| 1.0 | 223709 | OIL SUMP ASSEMBLY |
$0.00
Order
|
|
|
| 2.0 | 227352 | PLUG |
$0.00
Order
|
|
|
| 3.0 | 227357 | PLUG |
$0.00
Order
|
|
|
| 4.0 | 228051 | PLUG |
$0.00
Order
|
|
|
| 5.0 | 227353 | SCREW |
$0.00
Order
|
|
|
| 6.0 | 227350 | GASKET |
$0.00
Order
|
|
|
| 7.0 | 228048 | COMPLETE OIL FILTER |
$0.00
Order
|
|
|
| 8.0 | 227351 | O.R. GASKET |
$0.00
Order
|
|
|
| 9.0 | 227379 | CONVERTER |
$0.00
Order
|
|
|
| 10.0 | 227374 | SEAL RING |
$0.00
Order
|
|
|
| 11.0 | 227376 | O.R. GASKET |
$0.00
Order
|
|
|
| 12.0 | 227375 | SCREW |
$0.00
Order
|
|
|
| 13.0 | 228052 | SCREW |
$0.00
Order
|
|
|
| 14.0 | 227377 | WASHER |
$0.00
Order
|
|
|
| 15.0 | 227369 | DELIVERY PIPE |
$0.00
Order
|
|
|
| 16.0 | 227370 | PROTECTIVE SHEATH |
$0.00
Order
|
|
|
| 17.0 | 227358 | PLUG |
$0.00
Order
|
|
|
| 18.0 | 227360 | SEAL RING |
$0.00
Order
|
|
|
| 19.0 | 223712 | OUTPUT FLANGE |
$0.00
Order
|
|
|
| 20.0 | 227361 | SEAL RING |
$0.00
Order
|
|
|
| 21.0 | 227362 | NUT |
$0.00
Order
|
|
|
| 22.0 | 227363 | PLUG |
$0.00
Order
|
|
|
| 23.0 | 227371 | SEALING SLEEVE |
$0.00
Order
|
|
|
| 24.0 | 227372 | SEALING SLEEVE |
$0.00
Order
|
|
|
| 25.0 | 227373 | SEALING SLEEVE |
$0.00
Order
|
|
|
| 26.0 | 227357 | PLUG |
$0.00
Order
|
|
|
| 27.0 | 262774 | MECHATRONIC ASSEMBLY |
$0.00
Order
|
|
|
| 28.0 | 227365 | ADAPTER |
$0.00
Order
|
|
|
| 29.0 | 227366 | SLIDING GUIDE |
$0.00
Order
|
|
|
| 30.0 | 227368 | SCREW |
$0.00
Order
|
|
|
| 31.0 | 227367 | SCREW |
$0.00
Order
|
|
|
| 32.0 | 227355 | SEAL RING |
$0.00
Order
|
|
|
| 33.0 | 227356 | FLEXIBLE PIN |
$0.00
Order
|
|
|
| 34.0 | 222378 | GEARBOX CONTROL LEVER |
$0.00
Order
|
|
|
| 35.0 | 161473 | NUT |
$0.00
Order
|
|
|
| 36.0 | 247479 | GASKET |
$0.00
Order
|
|

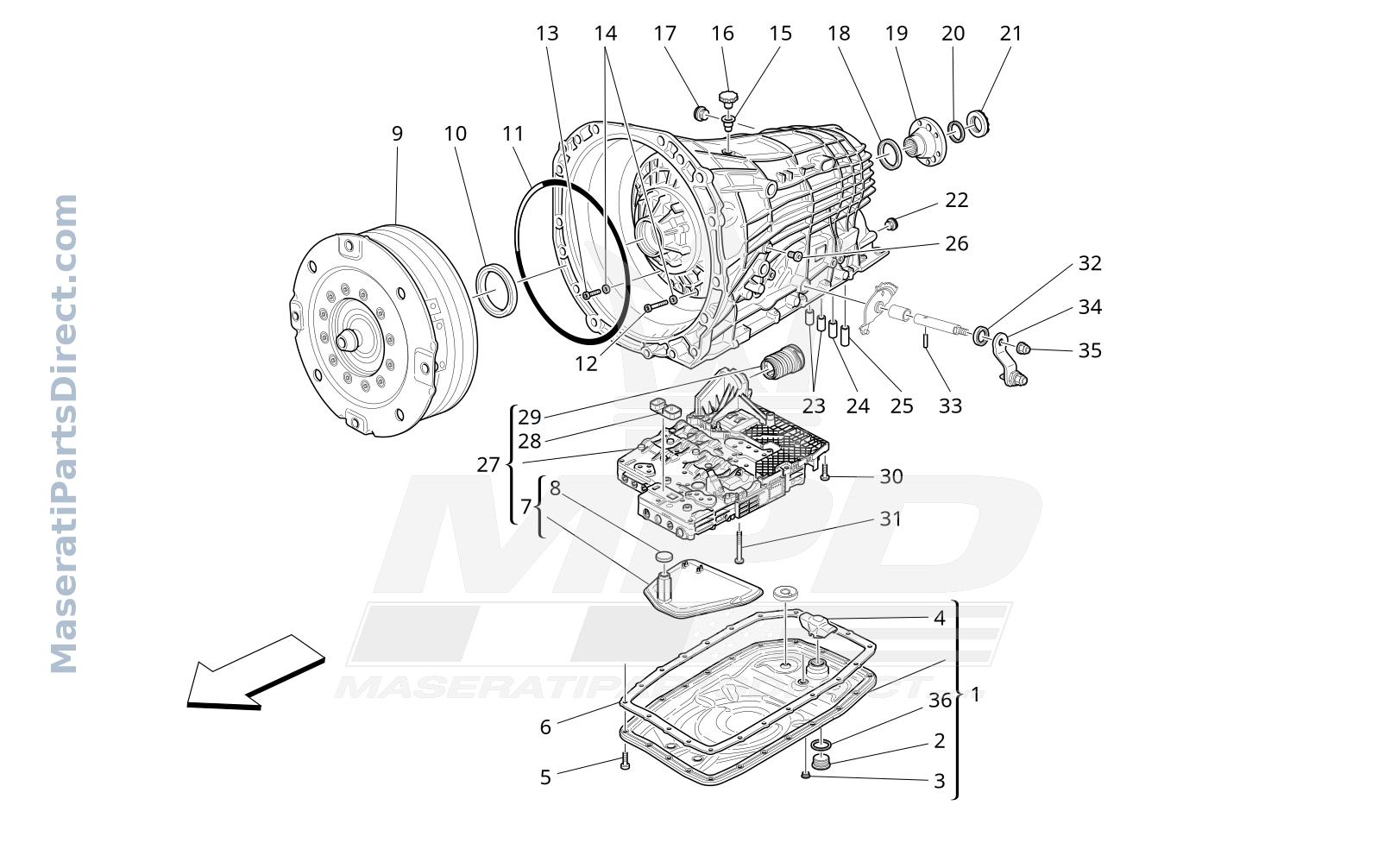

| SVG Path | GranT2014-03-10-3-gearbox-housings-M145_S.svg |
|---|---|
