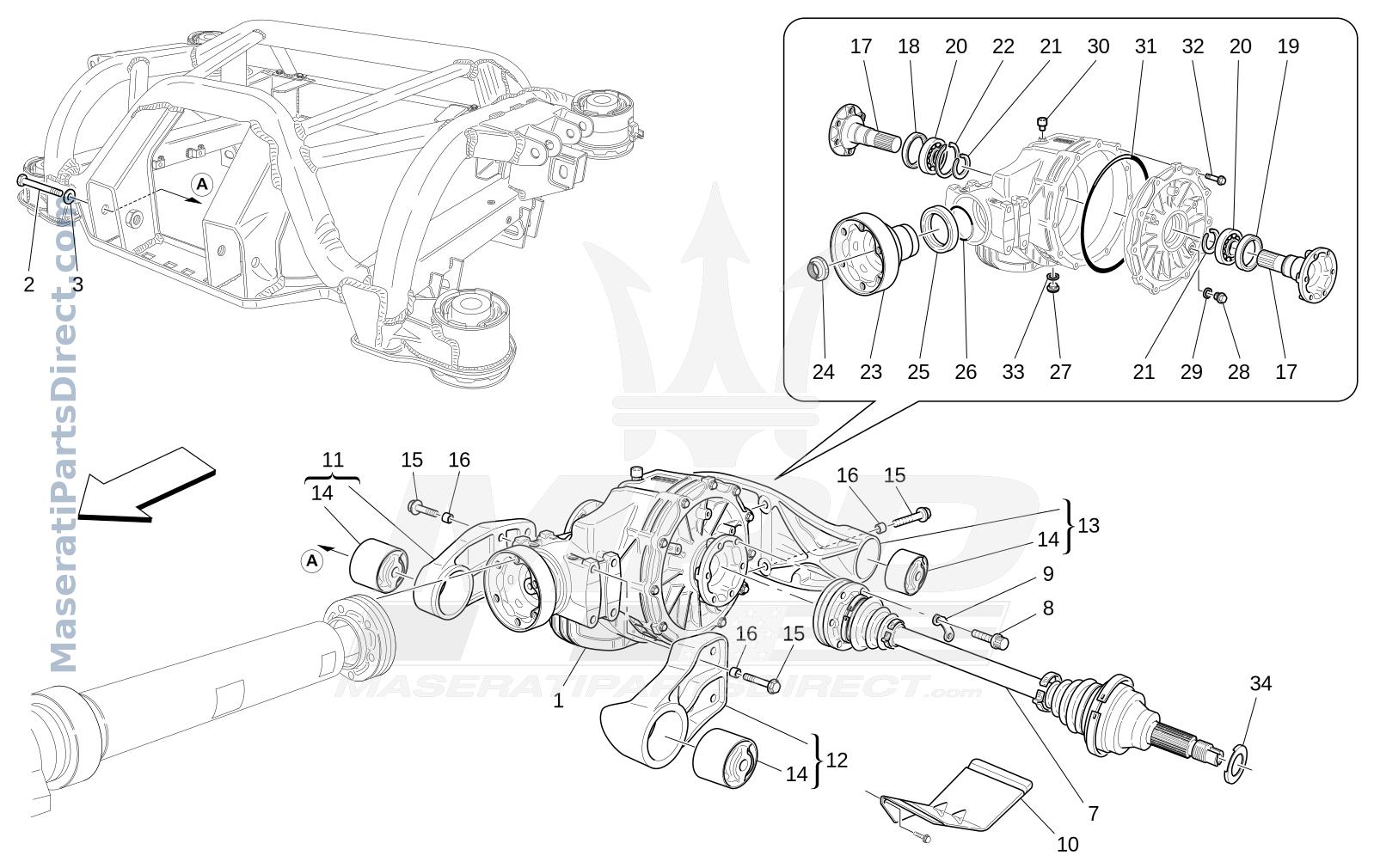

03.21 - 2 - DIFFERENTIAL AND REAR AXLE SHAFTS

Select a part from the list to view details

Select a part from the list to view dimensions

Select a part from the list to view fitment information

Parts List

Ref	Part Number	Description	Price
1.0	270983	DIFFERENTIAL ASSEMBLY	$0.00 Order
2.0	15977921	SCREW	$0.00 Order
3.0	11194174	WASHER	$0.00 Order
7.0	270625	AXLE SHAFT ASSEMBLY	$0.00 Order
8.0	181910	SCREW	$0.00 Order
9.0	222679	PLATE	$0.00 Order
10.0	198514	HEAT PROTECTION	$0.00 Order
11.0	240022	RH FRONT BRACKET	$0.00 Order
12.0	240023	LH FRONT BRACKET	$0.00 Order
13.0	240024	REAR BRACKET	$0.00 Order
14.0	238620	BUFFER FOR SUPPORT	$0.00 Order
15.0	271187	SCREW	$0.00 Order
16.0	229202	CENTERING DOWEL	$0.00 Order
17.0	189097	DIFFERENTIAL AXLE SHAFT	$0.00 Order
18.0	181618	RH SEAL RING	$0.00 Order
19.0	181617	LH SEAL RING	$0.00 Order
20.0	184995	BALL BEARING	$0.00 Order
21.0	184994	CIRCLIP	$0.00 Order
22.0	185723	CIRCLIP (SEEGER-RING)	$0.00 Order
23.0	218086	PROPELLER SHAFT CONNECTION FLANGE	$0.00 Order
24.0	271175	RING NUT	$0.00 Order
24.0	183967	RING NUT	$0.00 Order
25.0	221062	SEAL RING	$0.00 Order
26.0	271172	O.R. GASKET	$0.00 Order
27.0	271177	THREADED PLUG	$0.00 Order
28.0	271178	THREADED PLUG	$0.00 Order
29.0	10263460	GASKET	$0.00 Order
30.0	197797	OIL BREAHTER	$0.00 Order
31.0	14468781	O.R. GASKET	$0.00 Order
32.0	16287321	SCREW	$0.00 Order
33.0	10263460	GASKET	$0.00 Order
34.0	284616	RING	$0.00 Order
