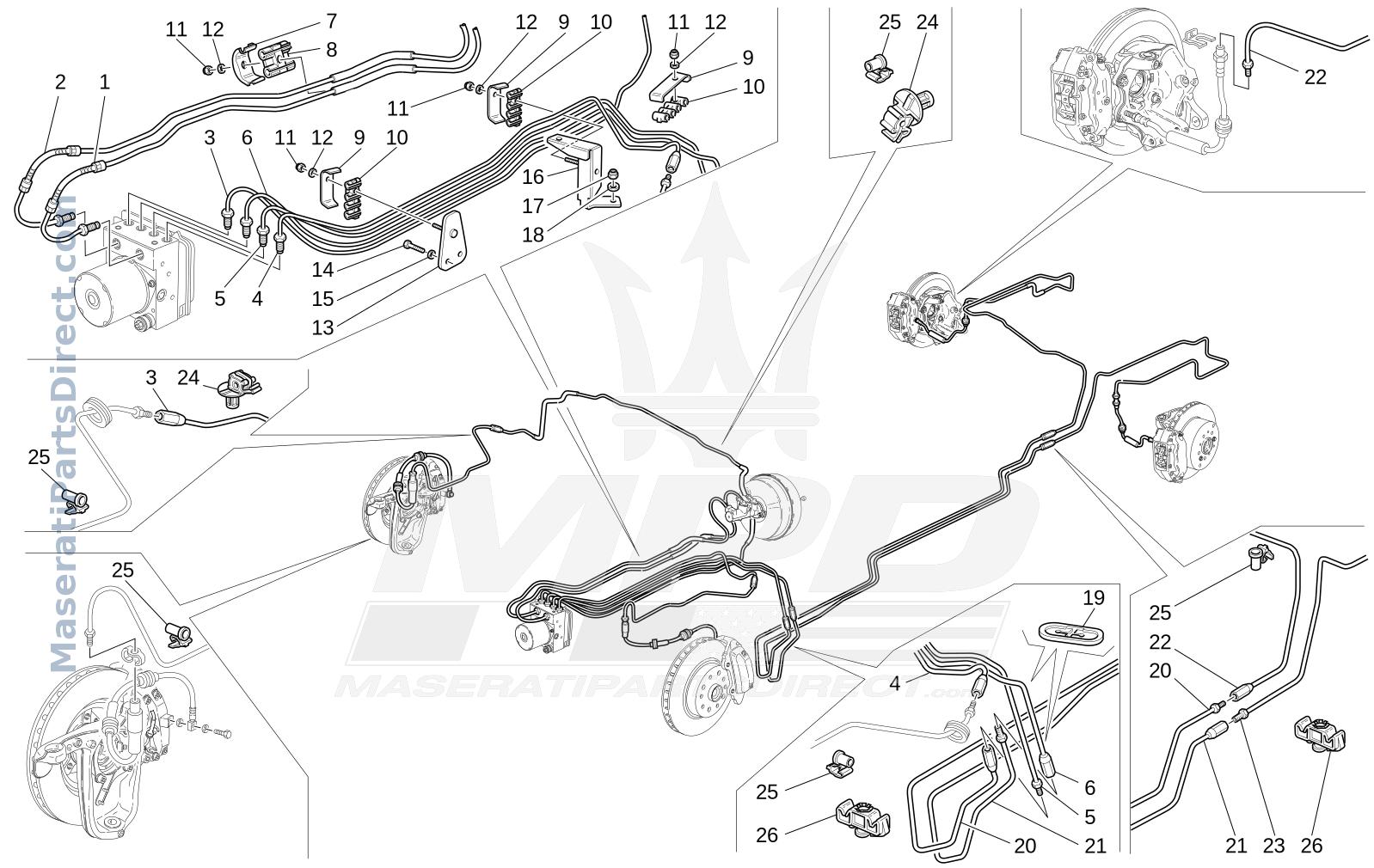

04.20 - 1 - LINES

Select a part from the list to view details

Select a part from the list to view dimensions

Select a part from the list to view fitment information

Parts List

Ref	Part Number	Description	Price
1.0	236778	RIGID PIPE FROM PUMP TO CONTROL UNIT (MC1)	$0.00 Order
2.0	236779	RIGID PIPE FROM PUMP TO CONTROL UNIT (MC2)	$0.00 Order
3.0	207434	RIGID PIPE FROM CONTROL UNIT TO RH CONNECTION	$0.00 Order
4.0	252240	RIGID PIPE FROM CONTROL UNIT TO LH CONNECTION	$0.00 Order
5.0	207436	RIGID PIPE FROM CONTROL UNIT TO RH INTERMEDIATE PIPE	$0.00 Order
6.0	207437	RIGID PIPE FROM CONTROL UNIT TO LH INTERMEDIATE PIPE	$0.00 Order
7.0	193722	CLIP U-BOLT	$0.00 Order
8.0	263269	CLIP	$0.00 Order
9.0	200288	CLIP U-BOLT	$0.00 Order
10.0	192276	CLIP	$0.00 Order
11.0	169180	NUT	$0.00 Order
12.0	12637824	WASHER	$0.00 Order
13.0	203822	BRACKET	$0.00 Order
14.0	10977624	SCREW	$0.00 Order
15.0	12637824	WASHER	$0.00 Order
16.0	194855	BRACKET	$0.00 Order
17.0	16100814	NUT	$0.00 Order
18.0	14496524	WASHERD. 8.40-17 X1.6	$0.00 Order
19.0	221727	WATER PIPE GASKET	$0.00 Order
20.0	207440	RH INTERMEDIATE RIGID PIPE	$0.00 Order
21.0	207441	LH INTERMEDIATE RIGID PIPE	$0.00 Order
22.0	227265	RIGID PIPE FROM RH INTERMEDIATE PIPE TO RH REAR WHEEL	$0.00 Order
23.0	194857	RIGID PIPE FROM LH INTERMEDIATE PIPE TO LH REAR WHEEL	$0.00 Order
24.0	192277	CLIP	$0.00 Order
24.0	279840	CLIP	$0.00 Order
25.0	192279	CLIP	$0.00 Order
26.0	192278	CLIP	$0.00 Order
