05.20 - 1 - COMPLETE PEDAL BOARD UNIT

05.20 - 1 - COMPLETE PEDAL BOARD UNIT

Genuine Maserati Parts

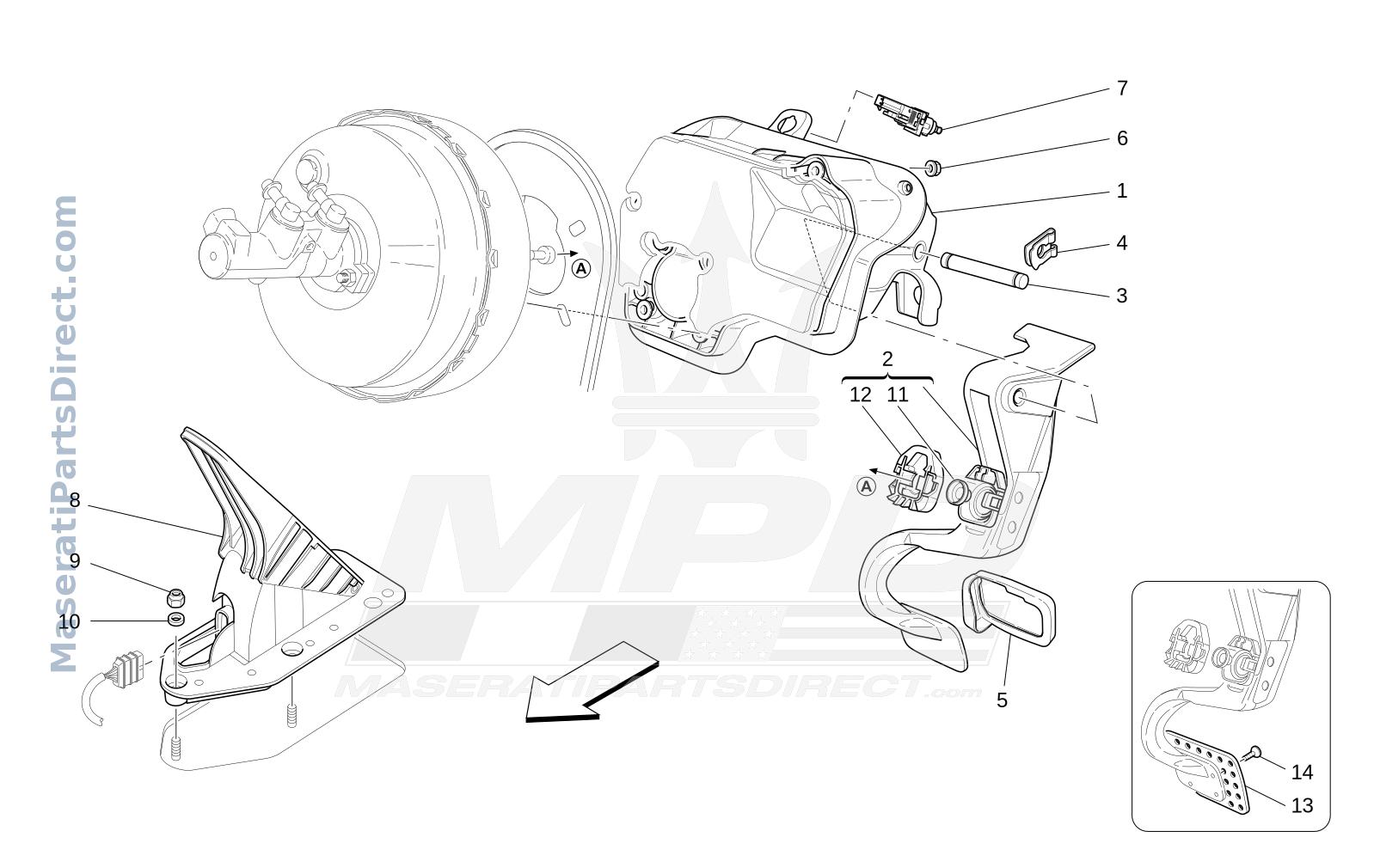

05.20 - 1 - COMPLETE PEDAL BOARD UNIT Diagram

Select a part from the list to view details

Select a part from the list to view dimensions

Select a part from the list to view fitment information

Parts List

Ref	Part Number	Description	Price	Qty
1.0	189858	PEDAL SUPPORT	$0.00 Order
2.0	custom	COMPLETE BRAKE PEDAL	$0.00 Order
3.0	189870	PIN	$0.00 Order
4.0	11064471 Replaced by: #11064474	RETAINER	$0.00 Order
4.0	11064474	RETAINER	$0.00 Order
5.0	246126	BRAKE PEDAL COVER	$0.00 Order
6.0	12578211	NUTM8	$0.00 Order
7.0	201957	PUSH-BUTTON SWITCH	$0.00 Order
8.0	custom	ACCELERATOR PEDAL ASSEMBLY	$0.00 Order
9.0	102741	NUT	$0.00 Order
10.0	12601274	WASHERD. 6,40-12X 0,5	$0.00 Order
11.0	189864	CUP	$0.00 Order
12.0	189863	SMALL BLOCK	$0.00 Order
13.0	custom	PEDAL PLATE	$0.00 Order
14.0	14441324	SCREW	$0.00 Order

05.20 - 1 - COMPLETE PEDAL BOARD UNIT

Be the first to review this product

In stock

SKU

GranT2014-05-20-1-complete-pedal-board-unit-M145_S

All parts for COMPLETE PEDAL BOARD UNIT

COMPLETE PEDAL BOARD UNIT - Complete Parts Group
