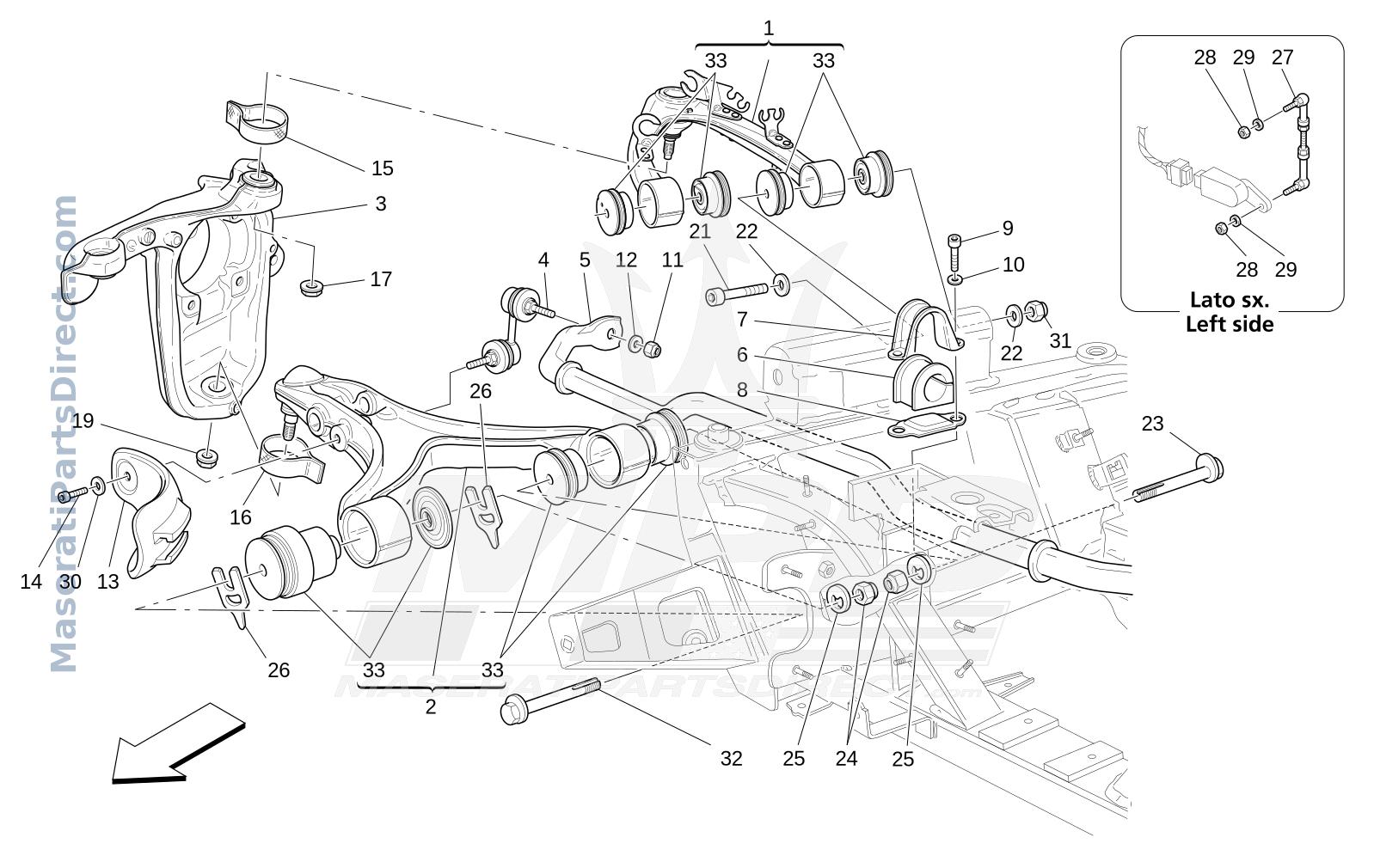

06.10 - 1 - FRONT SUSPENSION

Select a part from the list to view details

Part Number:	-
Part Position:	-
Remarks:	-
Market:	-
Valid Assembly Range:	-
Valid Frame Range:	-
Valid Engine Range:	-
Valid Gearbox Range:	-
Includes:	-
Replaced By:	-
Camera Image:	-
PDF Link:	-
3D Model Link:	-

Select a part from the list to view dimensions

Length (cm):	-
Width (cm):	-
Height (cm):	-
Weight (kg):	-

Length (in):	-
Width (in):	-
Height (lbs):	-
Weight (lbm):	-

Select a part from the list to view fitment information

Parts List

Ref	Part Number	Description	Price
0.0	980139894	LH FRONT SUSPENSION KIT	$0.00 Order
0.0	980139893	RH FRONT SUSPENSION KIT	$0.00 Order
1.0	-	LH FRONT UPPER LEVER ASSEMBLYCode is not available separately, order code complete suspension kit	$0.00 Order
1.0	-	RH FRONT UPPER LEVER ASSEMBLYCode is not available separately, order code complete suspension kit	$0.00 Order
2.0	-	LH FRONT LOWER LEVER ASSEMBLYCode is not available separately, order code complete suspension kit	$0.00 Order
2.0	-	RH FRONT LOWER LEVER ASSEMBLYCode is not available separately, order code complete suspension kit	$0.00 Order
3.0	-	COMPLETE L.H. FRONT HUB HOLDERCode is not available separately, order code complete suspension kit	$0.00 Order
3.0	-	COMPLETE R.H. FRONT HUB HOLDERCode is not available separately, order code complete suspension kit	$0.00 Order
4.0	259573	BALL TIE ROD	$0.00 Order
4.0	259572	BALL TIE ROD	$0.00 In Stock
5.0	234647	STABILIZER BAR	$0.00 Order
6.0	192737	BAR BUFFER	$0.00 Order
7.0	271290	UPPER SUPPORT	$0.00 Order
8.0	271288	LOWER SUPPORT	$0.00 Order
9.0	14307534	SCREW	$0.00 Order
10.0	12604574	WASHER	$0.00 Order
11.0	102742	NUT	$0.00 Order
12.0	12601474	WASHERD.10,50-21X 1,0	$0.00 Order
13.0	239645	LH AIR FLOW FLAP	$0.00 Order
13.0	239646	RH AIR FLOW FLAP	$0.00 Order
14.0	255624 Replaced by: #314290.0	SCREW	$0.00 Order
14.0	314290	SCREW	$0.00 Order
15.0	386600416	JOINT PROTECTION	$0.00 Order
16.0	386600416	JOINT PROTECTION	$0.00 Order
17.0	245240	NUT	$0.00 Order
19.0	245240	NUT	$0.00 Order
19.0	247308	NUT FOR SUSPENSION LEVER ADJUSTING	$0.00 Order
21.0	15977934	SCREW	$0.00 Order
22.0	13550634	WASHER	$0.00 Order
23.0	260768	SCREW	$0.00 Order
24.0	203795	NUT	$0.00 In Stock
25.0	240877	WASHER	$0.00 Order
26.0	198038	SPACER	$0.00 Order
26.0	198039	SPACER	$0.00 Order
26.0	198040	SPACER	$0.00 In Stock
26.0	198041	SPACER	$0.00 Order
26.0	198042	SPACER	$0.00 In Stock
26.0	295191	SPACER	$0.00 Order
27.0	188629	TIE ROD FOR LIGHT ADJUSTING POTENTIOMETER	$0.00 Order
28.0	102741	NUT	$0.00 Order
29.0	14498824	WASHERD.6.4-16.3X1	$0.00 Order
30.0	12641024	WASHER	$0.00 Order
31.0	203795	NUT	$0.00 In Stock
32.0	260767	SCREW	$0.00 Order
33.0	980139889	FRONT SUSPENSION BUSHING KIT	$0.00 In Stock
