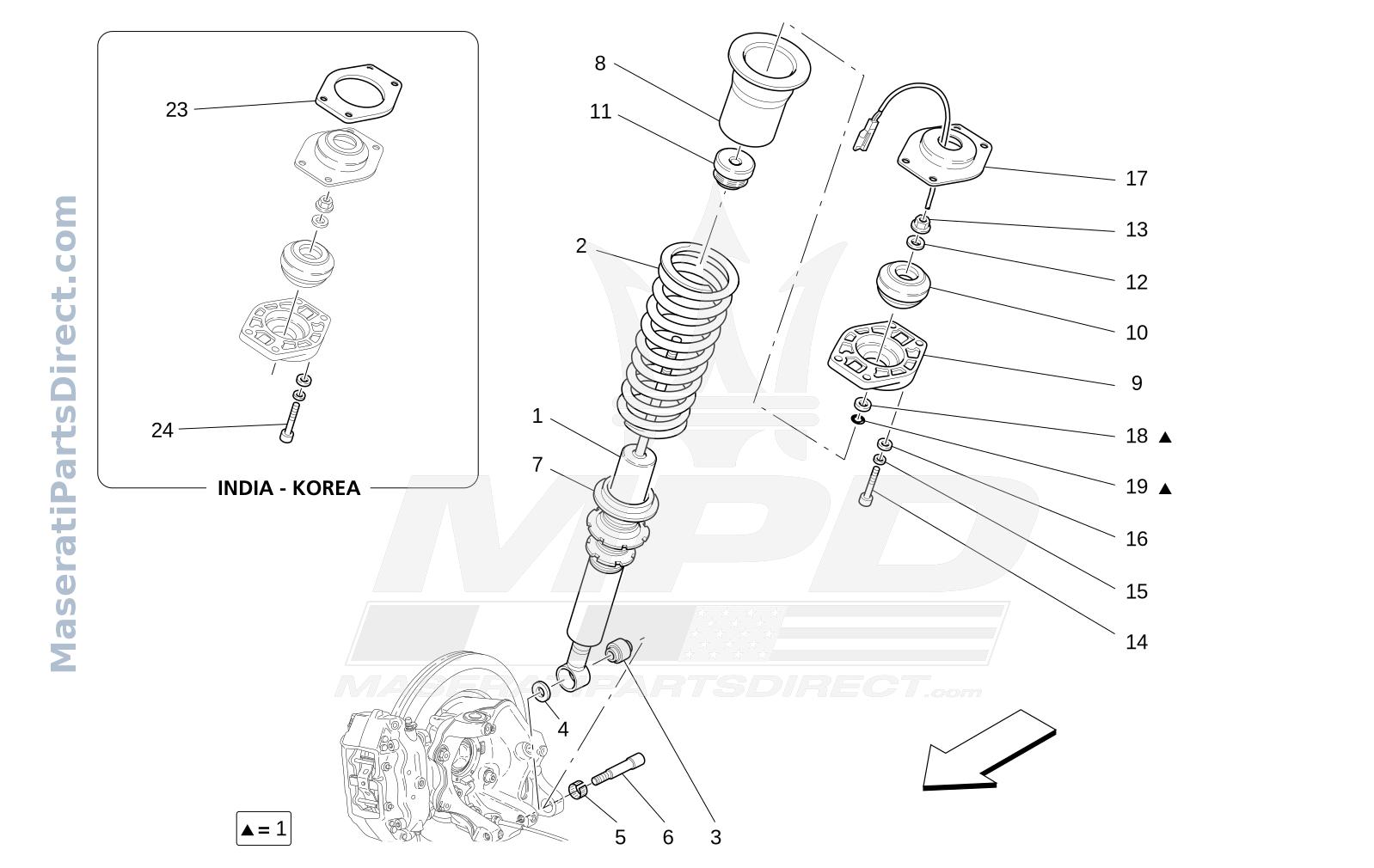

06.21 - 2 - REAR SHOCK ABSORBER DEVICES

Select a part from the list to view details

Select a part from the list to view dimensions

Select a part from the list to view fitment information

Parts List

Ref	Part Number	Description	Price
1.0	custom	REAR SHOCK ABSORBER	$0.00 Order
2.0	custom	REAR SUSPENSION SPRINGStiffness 57 N/MM	$0.00 Order
3.0	163918	BALL JOINT	$0.00 Order
4.0	13550624	WASHER	$0.00 Order
5.0	179555	COMPENSATING RING	$0.00 Order
6.0	193058	SPECIAL SCREW	$0.00 Order
7.0	235219	INNER FOR SPRING	$0.00 Order
8.0	212517 Replaced by: #238358.0	UPPER SPACER	$0.00 Order
8.0	238358	UPPER SPACER	$0.00 Order
9.0	231388	CUP	$0.00 Order
10.0	228842	HYPERBLOCK	$0.00 Order
11.0	233122	SHOCK ABSORBER PAD	$0.00 Order
12.0	10520125	WASHER	$0.00 Order
13.0	203795	NUT	$0.00 In Stock
14.0	14306634	SCREW	$0.00 Order
15.0	11194074	WASHER	$0.00 Order
16.0	14496524	WASHERD. 8.40-17 X1.6	$0.00 Order
17.0	279627	UPPER WASHER	$0.00 Order
18.0	183595	BUSHING	$0.00 Order
19.0	183594	CIRCLIP	$0.00 Order
23.0	239278	SPACER	$0.00 Order
24.0	14306934	SCREW	$0.00 Order
