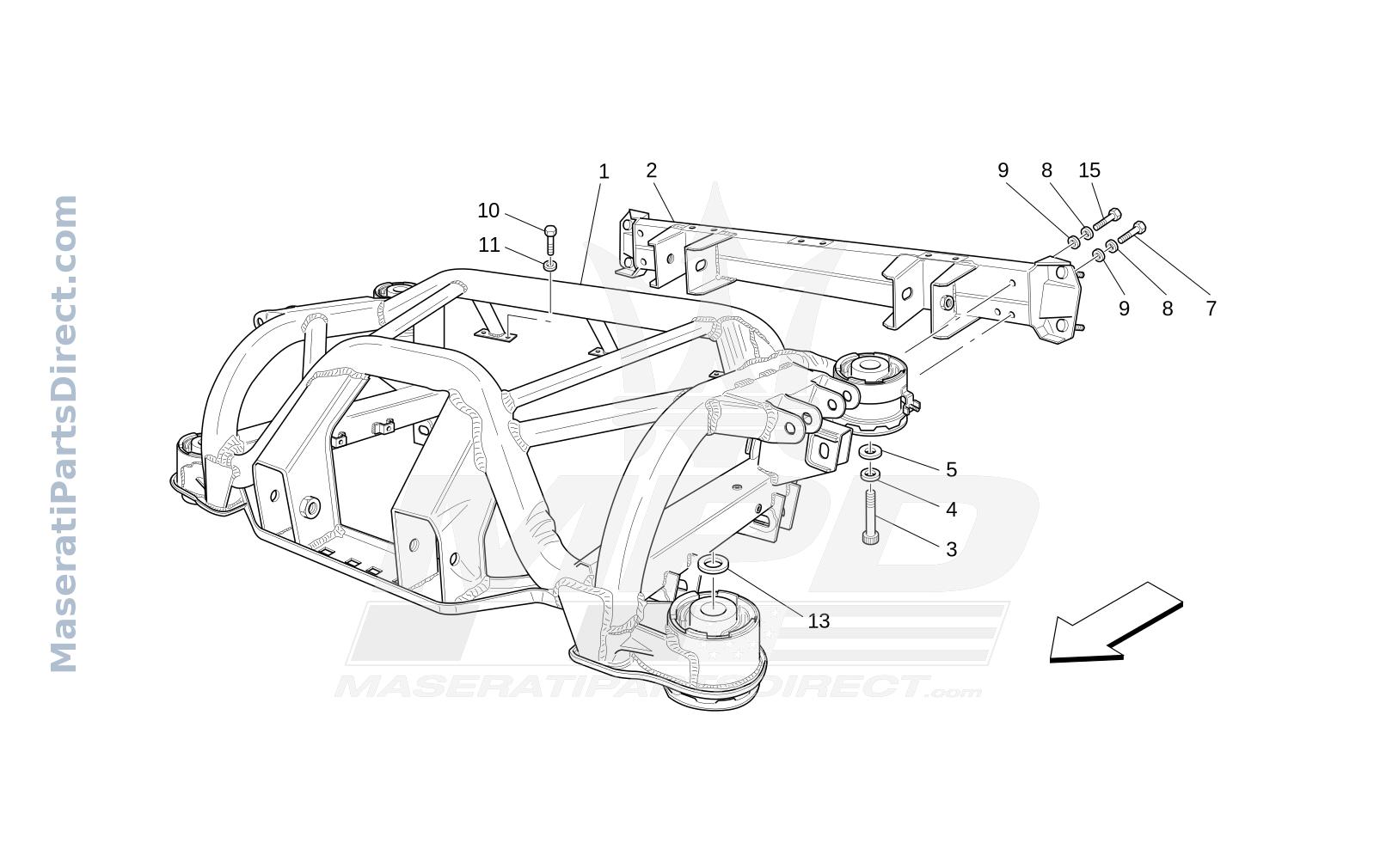

06.22 - 1 - REAR CHASSIS

Select a part from the list to view details

Select a part from the list to view dimensions

Select a part from the list to view fitment information

Parts List

Ref	Part Number	Description	Price
1.0	980145392	REAR SUSPENSION FRAME ASSEMBLY	$0.00 Order
2.0	247035	REAR CROSS MEMBER	$0.00 Order
3.0	67997900	SCREW	$0.00 Order
4.0	12646934	WASHERD. 12.2 -28X 3	$0.00 Order
5.0	244175	WASHER	$0.00 Order
7.0	11343821	SCREW	$0.00 Order
8.0	14496624	WASHER	$0.00 Order
9.0	11190577	WASHER	$0.00 Order
10.0	11343821	SCREW	$0.00 Order
11.0	12641024	WASHER	$0.00 Order
13.0	249517	SPACER	$0.00 Order
15.0	15971321	SCREW	$0.00 Order
