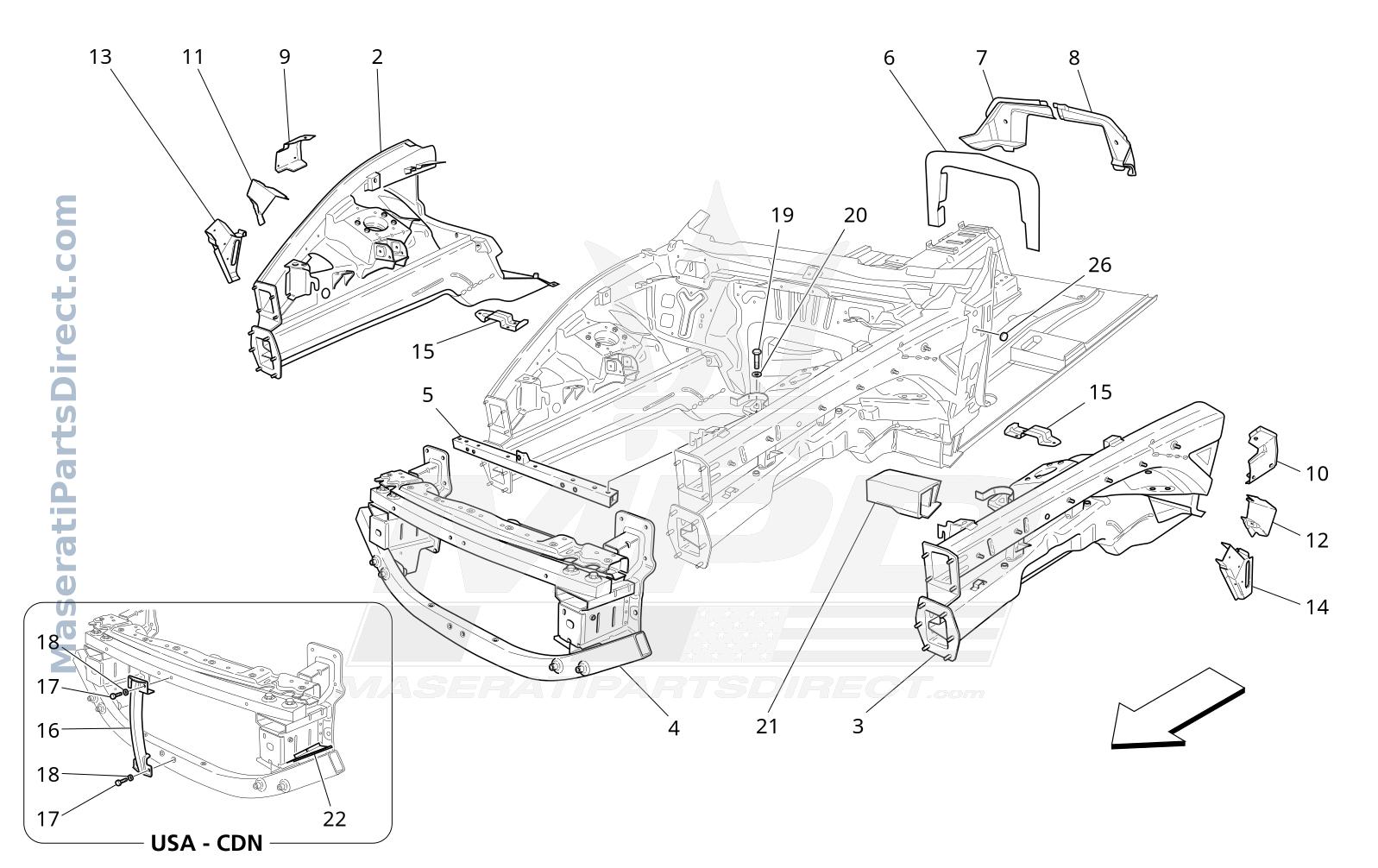

09.03 - 1 - FRONT STRUCTURAL FRAMES AND SHEET PANELS

Select a part from the list to view details

Select a part from the list to view dimensions

Select a part from the list to view fitment information

Parts List

Ref	Part Number	Description	Price
2.0	980145042	RH COMPLETE FRONT STRUT	$0.00 Order
3.0	980145043	LH COMPLETE FRONT STRUT	$0.00 Order
4.0	80001900	FRONT BUMPER CROSS MEMBER	$0.00 Order
5.0	67275300	CROSS MEMBER	$0.00 Order
6.0	66560000	CENTRAL CROSS MEMBER CARPET SHIELD	$0.00 Order
7.0	67300800	RH CROSS MEMBER	$0.00 Order
8.0	67300900	LH CROSS MEMBER	$0.00 Order
9.0	80700500	RH REINFORCEMENT STRUT	$0.00 Order
10.0	80700600	LH STRUT REINFORCEMENT	$0.00 Order
11.0	67214400	RH INSERT	$0.00 Order
12.0	67214500	LH INSERT	$0.00 Order
13.0	68269900	RH REINFORCEMENT BRACKET	$0.00 Order
14.0	68270000	LH REINFORCEMENT BRACKET	$0.00 Order
15.0	67989300	BRACKET	$0.00 Order
16.0	80423900	CROSS MEMBER CONNECTING ROD	$0.00 In Stock
17.0	16043524	SCREWTE M 8X 22	$0.00 Order
18.0	14496524	WASHERD. 8.40-17 X1.6	$0.00 Order
19.0	11306934	SCREWTE M 10X1,25X 30	$0.00 Order
20.0	11190574	WASHERD.10.5-20X2.3	$0.00 Order
21.0	66828700	LH ANGLE BRACKET	$0.00 Order
21.0	66828600	RH ANGLE BRACKET	$0.00 Order
26.0	14507787	PLUG	$0.00 Order
