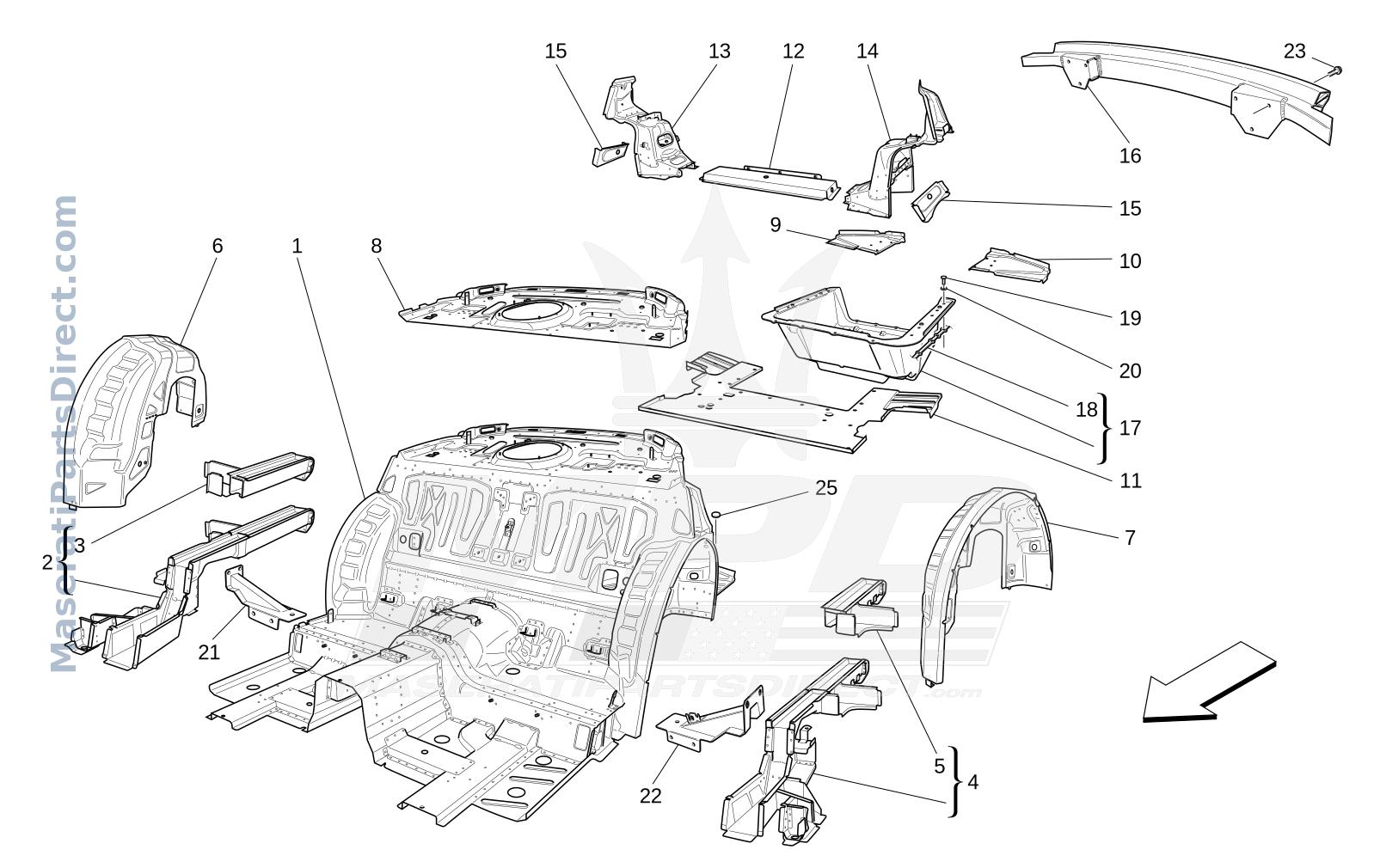

09.05 - 1 - REAR STRUCTURAL FRAMES AND SHEET PANELS

Select a part from the list to view details

Select a part from the list to view dimensions

Select a part from the list to view fitment information

Parts List

Ref	Part Number	Description	Price
1.0	980145058	REAR CHASSIS ASSEMBLY	$0.00 Order
2.0	980145046	COMPLETE RH LONGITUDINAL MEMBER	$0.00 Order
3.0	980145048	RH REAR STRUT	$0.00 Order
4.0	980145047	COMPLETE LH LONGITUDINAL MEMBER	$0.00 Order
5.0	980145049	LH REAR STRUT	$0.00 Order
6.0	980145050	RH REAR WHEELHOUSE	$0.00 Order
7.0	980145051	LH REAR WHEELHOUSE	$0.00 Order
8.0	980145052	UNDER REAR WINDOW PANEL	$0.00 Order
9.0	66829800	REAR RH SECTION OF REAR FLOOR	$0.00 Order
10.0	66829900	REAR LH SECTION OF REAR FLOOR	$0.00 Order
11.0	980145053	FRONT SIDE REAR FLOOR	$0.00 Order
12.0	67260800	CROSS MEMBER	$0.00 Order
13.0	980145054	RH REAR REINFORCEMENT	$0.00 Order
14.0	980145055	LH REAR REINFORCEMENT	$0.00 Order
15.0	67276600	REINFORCEMENT SEAL	$0.00 Order
16.0	80308900	CPL REAR BUMPER CROSS MEMBER	$0.00 Order
17.0	68267800	SPARE WHEEL COMPARTMENT	$0.00 Order
18.0	68268000	SPARE WHEEL BAY GASKET	$0.00 Order
19.0	13026124	SCREWTCEI M5X18	$0.00 Order
20.0	14446521	WASHERD. 6 -18X1	$0.00 Order
21.0	69054900	RH REINFORCEMENT	$0.00 Order
22.0	69112400	LH REINFORCEMENT	$0.00 Order
23.0	11640424	SCREWTE M8X20	$0.00 Order
25.0	14507687	PLUG	$0.00 Order
