Home
GranTurismo
2014
Sport
4.7L V8 454 HP AUTOMATIC
Bodywork
09.14 - 1 - UNDERBODY AND UNDERFLOOR GUARDS

09.14 - 1 - UNDERBODY AND UNDERFLOOR GUARDS

Genuine Maserati Parts

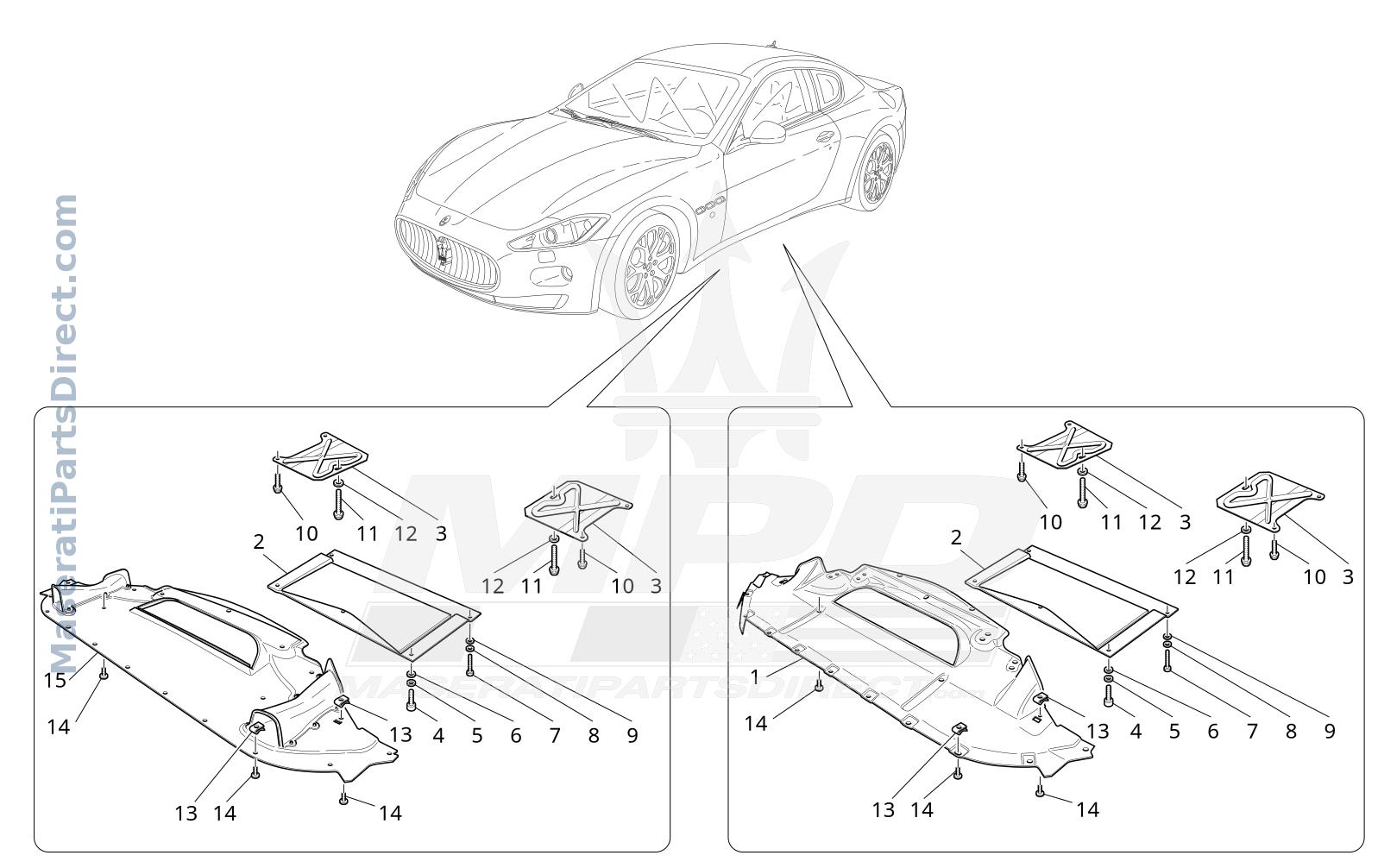

09.14 - 1 - UNDERBODY AND UNDERFLOOR GUARDS Diagram

Select a part from the list to view details

Select a part from the list to view dimensions

Select a part from the list to view fitment information

Parts List

Ref	Part Number	Description	Price	Qty
1.0	81263400	FRONT AERODYNAMIC SHIELD	$0.00 Order
2.0	67960100	UNDER FRAME SHIELD	$0.00 Order
3.0	67576300	COVER FOR PIPING	$0.00 Order
4.0	15970324	SCREWTE M10X1,25X16	$0.00 Order
5.0	12601474	WASHERD.10,50-21X 1,0	$0.00 Order
6.0	12646824	WASHERD.10.2-25X2	$0.00 Order
7.0	10902524	SCREWTE M 6X 22	$0.00 Order
8.0	12601274	WASHERD. 6,40-12X 0,5	$0.00 Order
9.0	12640624	WASHERD. 6.15-25X 2	$0.00 Order
10.0	11617324	SCREWTE M8X18	$0.00 Order
11.0	13217434	SCREWM12X1,25X35	$0.00 Order
12.0	12646934	WASHERD. 12.2 -28X 3	$0.00 Order
13.0	80093600	CLIP	$0.00 Order
14.0	51810310	SCREW	$0.00 Order
14.0	51810310	SCREW	$0.00 Order
14.0	51810310	SCREW	$0.00 Order
15.0	83536300	FRONT AERODYNAMIC SHIELD	$0.00 Order
