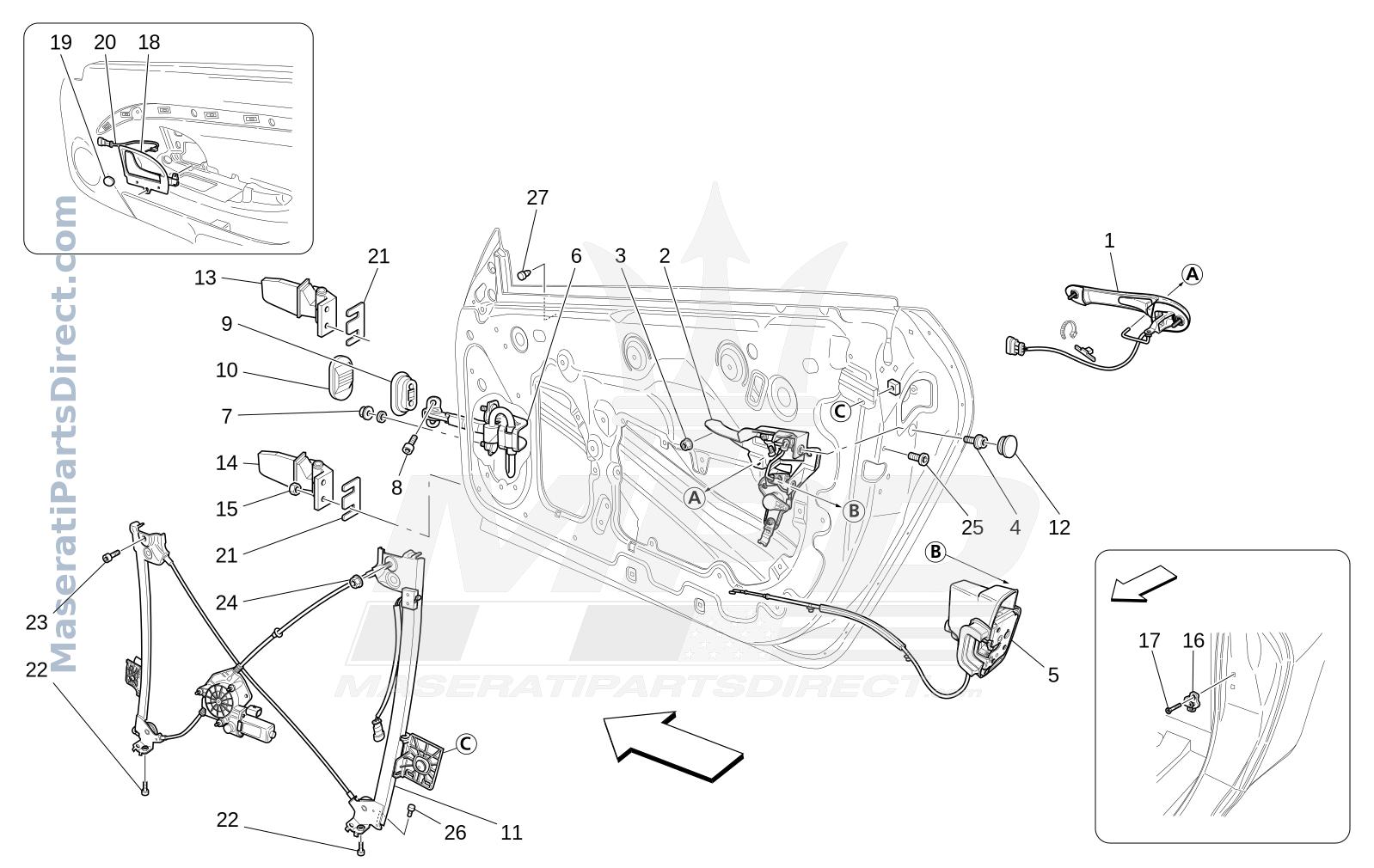

09.31 - 1 - FRONT DOORS: MECHANISMS

Select a part from the list to view details

Select a part from the list to view dimensions

Select a part from the list to view fitment information

Parts List

Ref	Part Number	Description	Price
1.0	82078600	LH DOOR EXTERNAL HANDLE	$0.00 Order
1.0	980139630	LH DOOR EXTERNAL HANDLE	$0.00 Order
1.0	69287700	LH DOOR EXTERNAL HANDLE	$0.00 Order
1.0	82078500	RH DOOR EXTERNAL HANDLE	$0.00 Order
1.0	980139629	RH DOOR EXTERNAL HANDLE	$0.00 Order
1.0	69287600	RH DOOR EXTERNAL HANDLE	$0.00 Order
2.0	80177400	LH OUTER HANDLE SUPPORT	$0.00 Order
2.0	80177300	RH OUTER HANDLE SUPPORT	$0.00 Order
3.0	14040514	NUTM5	$0.00 Order
4.0	46401657	SCREWM6X12	$0.00 Order
5.0	68893400	LH DOOR LOCK	$0.00 Order
5.0	68893300	RH DOOR LOCK	$0.00 Order
6.0	80174300	TIE ROD	$0.00 Order
7.0	14058411	NUTM6	$0.00 Order
8.0	80853100	SCREWM6	$0.00 Order
9.0	67575800	GASKET	$0.00 Order
10.0	67079000	GASKET	$0.00 Order
11.0	69914400	LH POWER WINDOW WINDER	$0.00 Order
11.0	69912100	RH POWER WINDOW WINDER	$0.00 Order
12.0	14506787	PLUG	$0.00 Order
13.0	67881000	LH UPPER HINGE	$0.00 Order
13.0	67880900	RH UPPER HINGE	$0.00 Order
14.0	66812500	LH LOWER HINGE	$0.00 Order
14.0	66812400	RH LOWER HINGE	$0.00 Order
15.0	15501025	NUT	$0.00 Order
16.0	68308800 Replaced by: #85321500.0	STRIKER	$0.00 Order
16.0	85321500	STRIKER	$0.00 Order
17.0	67999500	SCREWM8	$0.00 Order
18.0	9816031..	COMPLETE L.H. HANDLE FOR DOOR OPENING	$0.00 Order
18.0	9816030..	COMPLETE R.H. HANDLE FOR DOOR OPENING	$0.00 Order
19.0	66939600	PLUG	$0.00 Order
20.0	234823	MICROSWITCH	$0.00 Order
21.0	67274900	PLATE	$0.00 Order
22.0	11567624	SCREWM6X14	$0.00 Order
23.0	11570524	SCREWTCEI M8X20	$0.00 Order
24.0	14039714	NUTM8	$0.00 Order
25.0	67077900	SCREW	$0.00 Order
26.0	980145406	RUBBER LIMIT STOP	$0.00 Order
27.0	14624587	PLUG	$0.00 Order
