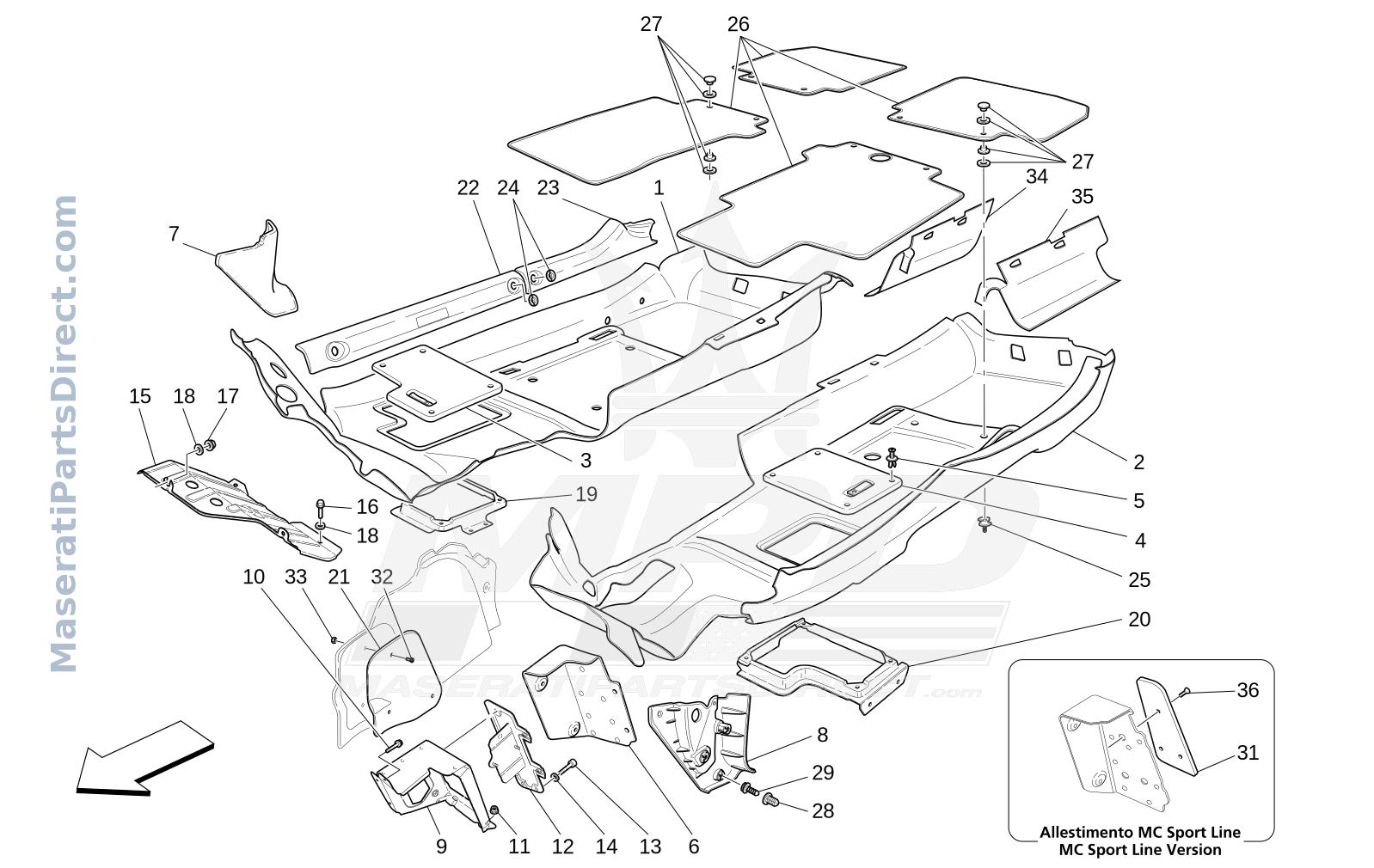

09.60 - 1 - PASSENGER COMPARTMENT MATS

Select a part from the list to view details

Part Number:	-
Part Position:	-
Remarks:	-
Market:	-
Valid Assembly Range:	-
Valid Frame Range:	-
Valid Engine Range:	-
Valid Gearbox Range:	-
Includes:	-
Replaced By:	-
Camera Image:	-
PDF Link:	-
3D Model Link:	-

Select a part from the list to view dimensions

Length (cm):	-
Width (cm):	-
Height (cm):	-
Weight (kg):	-

Length (in):	-
Width (in):	-
Height (lbs):	-
Weight (lbm):	-

Select a part from the list to view fitment information

Parts List

Ref	Part Number	Description	Price
1.0	683804..	RH CARPET	$0.00 Order
2.0	691896..	LH CARPET	$0.00 Order
3.0	677280..	CONTROL UNIT INSPECTION DOOR	$0.00 Order
4.0	681919..	CONTROL UNIT INSPECTION DOOR	$0.00 Order
5.0	68808600	FASTENER BUTTON	$9.72 Order
6.0	custom	FOOT REST LINING	$0.00 Order
7.0	699841..	COMPLETE R.H. FRONT POST COVERING LOWER MOULDING	$0.00 Order
8.0	699840..	COMPLETE L.H. FRONT POST COVERING LOWER MOULDING	$0.00 Order
9.0	67076300	DRIVER SIDE FOOTREST	$77.55 Order
10.0	11625624	SCREW	$11.52 Order
11.0	14039614	NUTM 6	$5.13 Order
12.0	custom	DRIVER FOOTREST COVER	$0.00 Order
13.0	13026924	SCREW	$11.52 Order
14.0	13550201	WASHER	$11.55 Order
15.0	67267900	PASSENGER FOOTREST	$141.48 In Stock
16.0	11612424	SCREWTE M 6X16	$10.80 Order
17.0	14039614	NUTM 6	$5.13 Order
18.0	12643724	WASHERD 6,15-18X 1,5	$6.21 Order
19.0	67728600	RH BRACKET FOR INSPECTION SHIELD	$137.21 Order
20.0	68192000	LH BRACKET FOR INSPECTION SHIELD	$145.86 Order
21.0	67312200	PROTECTION PLATE	$854.79 Order
22.0	80521500	LH FRONT PADDING	$76.52 Order
22.0	80521900	RH FRONT PADDING	$76.00 Order
23.0	80521800	LH REAR PADDING	$35.98 Order
23.0	80522000	RH REAR PADDING	$56.10 Order
24.0	81695900	FASTENER BUTTON	$10.62 Order
25.0	67020900	BUTTON	$36.01 Order
26.0	custom	REMOVABLE CARPET KIT	$0.00 Order
27.0	980001999	REMOVABLE CARPET FIXING KIT	$78.35 Order
28.0	67874700	BUSHING	$9.20 Order
29.0	67874500	PIN	$8.28 In Stock
31.0	82084000	DRIVER SIDE FOOTREST	$208.69 Order
32.0	13297511	SCREW	$11.40 Order
33.0	12574011	NUT	$8.64 Order
34.0	808992..	RH REAR CARPET	$0.00 Order
35.0	809354..	LH REAR CARPET	$0.00 Order
36.0	14441324	SCREW	$9.20 Order
