| Ref | Part Number | Description | Price | Qty | |
|---|---|---|---|---|---|
| 0.0 | 980020010 | CRANKCASE GASKET REVISION KIT |
$684.76
Order
|
|
|
| 0.0 | 739026040 | ENGINE ASSEMBLY |
$0.00
Order
|
|
|
| 0.0 | 980020011 | HEAD OVERHAUL GASKET KIT |
$1,388.31
Order
|
|
|
| 0.0 | - | REFURBISHED ENGINEOpen a PHD ticket and specify vehicle VIN before ordering part no. |
$0.00
Order
|
|
|
| 1.0 | 281173 | ENGINE BLOCK |
$0.00
Order
|
|
|
| 2.0 | 14325340 | THREADED PLUG |
$25.00
Order
|
|
|
| 3.0 | 176421 | CENTERING DOWEL |
$30.36
Order
|
|
|
| 4.0 | 217794 | STUD |
$148.39
Order
|
|
|
| 4.0 | 219800 | STUD |
$0.00
Order
|
|
|
| 4.0 | 217796 | STUD |
$148.39
Order
|
|
|
| 4.0 | 219801 | STUD |
$0.00
Order
|
|
|
| 5.0 | 133988 | NUTM10 |
$10.40
Order
|
|
|
| 6.0 | 178348 | WASHERD.10.2-20X2.4 |
$11.52
Order
|
|
|
| 7.0 | 231620 | SCREWM6X25 |
$5.58
In Stock
|
|
|
| 7.0 | 231623 | SCREWM6X40 |
$8.64
Order
|
|
|
| 8.0 | 268886 | CABLE FOR ENGINE-FRAME EARTH |
$153.65
Order
|
|
|
| 9.0 | 10304511 | THREADED PLUG |
$13.88
Order
|
|
|
| 10.0 | 10263460 | GASKET |
$9.24
Order
|
|
|
| 11.0 | 217968 | STUD |
$50.83
Order
|
|
|
| 12.0 | 185360 | CENTERING DOWEL |
$23.23
Order
|
|
|
| 13.0 | 13546234 | STUD |
$18.87
Order
|
|
|
| 13.0 | 13546434 | STUD |
$50.52
Order
|
|
|
| 14.0 | 100052 | CENTERING DOWEL |
$21.48
Order
|
|
|
| 15.0 | 177727 | CENTERING DOWEL |
$21.24
Order
|
|
|
| 16.0 | 236143 | GASKET |
$31.49
Order
|
|
|
| 17.0 | 140071 | O.R. GASKET |
$11.10
Order
|
|
|
| 18.0 | 222317 | LH BRACKET FORMOTOR FIXING |
$308.37
Order
|
|
|
| 18.0 | 222316 | RH BRACKET FORMOTOR FIXING |
$308.37
Order
|
|
|
| 19.0 | 11306934 | SCREWTE M 10X1,25X 30 |
$10.40
Order
|
|
|
| 20.0 | 11190574 | WASHERD.10.5-20X2.3 |
$8.64
Order
|
|
|
| 21.0 | 226572 | ENGINE SUPPORT FLEXIBLE PAD |
$799.54
Order
|
|
|
| 22.0 | 177018 | NUT |
$9.73
Order
|
|
|
| 23.0 | 177764 | NUT |
$8.00
Order
|
|
|
| 24.0 | 196590 | UPPER PROTECTION FOR ENGINE PAD |
$25.90
Order
|
|
|
| 25.0 | 198530 | BRACKET |
$297.82
Order
|
|
|
| 26.0 | 227526 | LH HEAT SHIELD |
$248.15
Order
|
|
|
| 26.0 | 227525 | RH HEAT SHIELD |
$275.80
Order
|
|
|
| 27.0 | 14040614 | NUT |
$6.21
Order
|
|
|
| 28.0 | 13833011 | SCREW |
$13.58
Order
|
|
|
| 29.0 | 255138 | BLOW BY VALVE ASSEMBLY |
$0.00
Order
|
|
|
| 30.0 | 14303123 | SCREW |
$8.64
Order
|
|

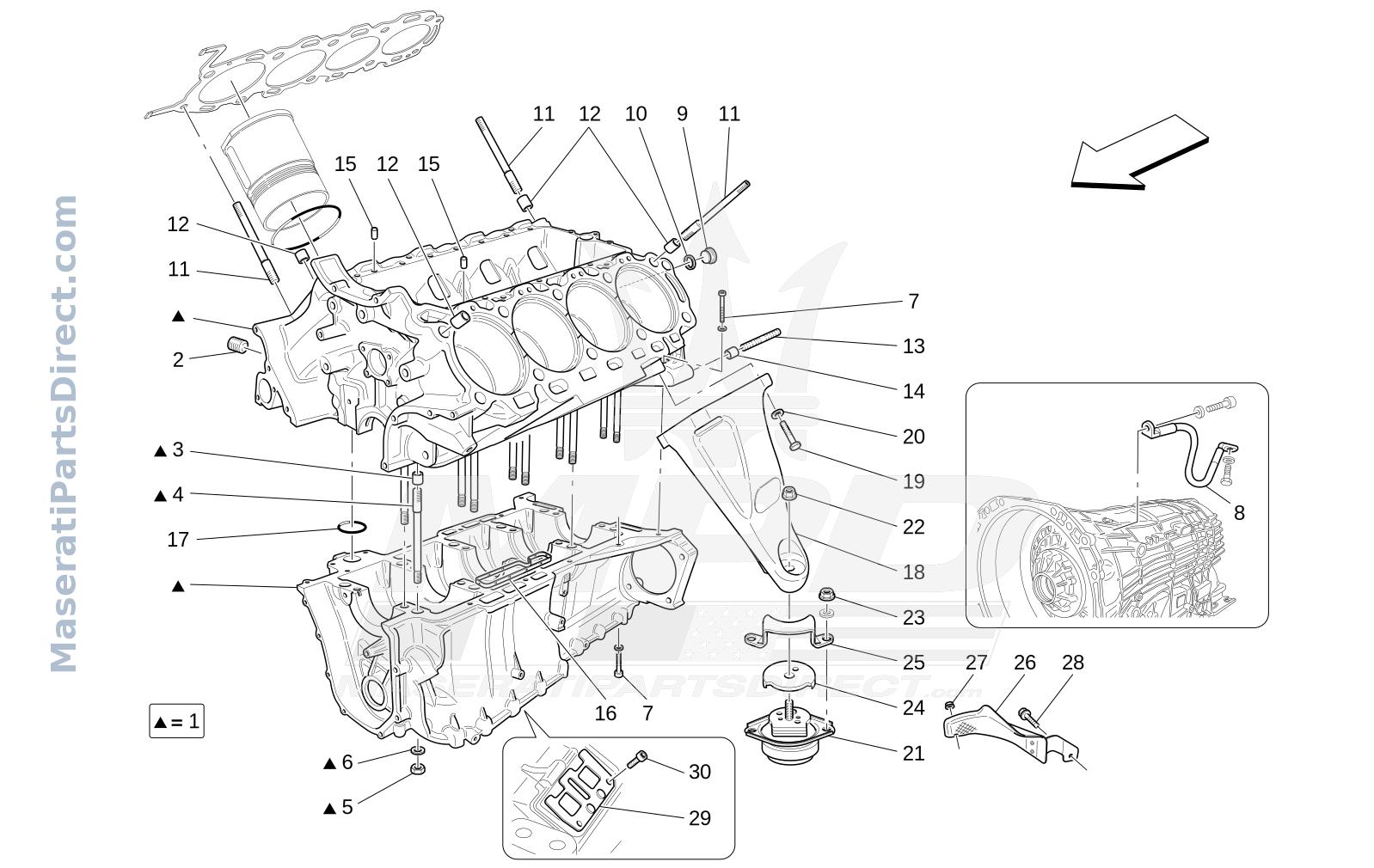

| SVG Path | GranT2015-01-00-1-crankcase-MC_S.svg |
|---|---|
| SVG Width | 799.000000 |
| SVG Height | 505.000000 |
