| Ref | Part Number | Description | Price | Qty | |
|---|---|---|---|---|---|
| 1.0 |
231104
Replaced by: #319940
|
OIL PUMP AND TIMING SYSTEM ASSEMBLY |
$0.00
Order
|
|
|
| 1.0 | 319940 | OIL PUMP AND TIMING SYSTEM ASSEMBLY |
$1,711.10
Order
|
|
|
| 2.0 | 175286 | TRANSMISSION CHAIN |
$81.76
Order
|
|
|
| 3.0 | 186184 | MOBILE SLIDING BLOCK |
$330.26
Order
|
|
|
| 4.0 | 175303 | BUSHING |
$61.69
Order
|
|
|
| 5.0 | 10569373 | WASHER |
$8.64
Order
|
|
|
| 6.0 | 14306424 | SCREWM8X25 |
$8.28
Order
|
|
|
| 7.0 | 186185 | FIXED SLIDING BLOCK |
$232.26
Order
|
|
|
| 8.0 | 231627 | SCREW |
$10.00
Order
|
|
|
| 9.0 | 186159 | GUIDE SHOE SUPPORT |
$122.13
Order
|
|
|
| 10.0 | 231616 | SCREWM6X14 |
$9.20
Order
|
|
|
| 11.0 | 306094 | FIXED SLIDING BLOCK |
$0.00
Order
|
|
|
| 12.0 | 11197774 | WASHERD.6.4-12X2.4 |
$9.20
Order
|
|
|
| 13.0 | 231619 | SCREWM6X22 |
$8.64
Order
|
|
|
| 14.0 | 193616 | TIMING CHAIN |
$194.04
Order
|
|
|
| 15.0 | 222310 | UPPER FIXED TENSION |
$151.78
Order
|
|
|
| 16.0 | 16043124 | SCREW |
$9.20
Order
|
|
|
| 17.0 | 194262 | WASHER |
$86.67
Order
|
|
|
| 18.0 | 175282 | ROLLER CAGE |
$35.67
Order
|
|
|
| 19.0 | 175611 | CENTERING DOWEL |
$15.89
Order
|
|
|
| 20.0 | 212970 | SUPPORT |
$0.00
Order
|
|
|
| 21.0 | 11181574 | WASHERD.5.3-11X0.9 |
$8.64
Order
|
|
|
| 22.0 | 14304224 | SCREW |
$8.64
Order
|
|
|
| 23.0 | 230652 | HYDRAULIC TIGHTENER |
$265.05
Order
|
|
|
| 24.0 | 231619 | SCREWM6X22 |
$8.64
Order
|
|
|
| 25.0 | 190060 | BUSH FOR TENSIONER |
$132.89
Order
|
|
|
| 26.0 |
185854
Replaced by: #323282
|
GASKET |
$0.00
Order
|
|
|
| 26.0 |
247147
Replaced by: #323282
|
GASKET |
$0.00
Order
|
|
|
| 26.0 | 323282 | GASKET |
$13.88
Order
|
|
|
| 27.0 | 193565 | TRANSMISSION TOOTHED WHEEL |
$429.68
Order
|
|
|
| 28.0 | 196683 | CHAIN TENSIONER |
$130.46
Order
|
|
|
| 29.0 | 175306 | WASHER |
$21.72
Order
|
|
|
| 30.0 |
223096
Replaced by: #248714
|
FRONT CRANKCASE COVER ASSEMBLY |
$0.00
Order
|
|
|
| 30.0 | 259031 | FRONT CRANKCASE COVER ASSEMBLY |
$13,425.39
Order
|
|
|
| 30.0 |
271243
Replaced by: #259031
|
FRONT CRANKCASE COVER ASSEMBLY |
$0.00
Order
|
|
|
| 30.0 | 259031 | FRONT CRANKCASE COVER ASSEMBLY |
$13,425.39
Order
|
|
|
| 31.0 | 224314 | PLUG |
$23.55
Order
|
|
|
| 32.0 | 10296160 | GASKET |
$6.93
Order
|
|
|
| 33.0 | 14324940 | THREADED PLUG |
$10.00
Order
|
|
|
| 34.0 |
238690
Replaced by: #322502
|
FRONT COVER GASKET |
$0.00
Order
|
|
|
| 34.0 | 322502 | FRONT COVER GASKET |
$73.84
Order
|
|
|
| 35.0 | 183010 | O.R. GASKET |
$12.11
Order
|
|
|
| 36.0 | 231617 | SCREWM6X18 |
$8.28
Order
|
|
|
| 36.0 | 231622 | SCREWM6X35 |
$8.64
Order
|
|
|
| 37.0 | 10589624 | SCREW |
$83.97
Order
|
|
|
| 38.0 | 11197774 | WASHERD.6.4-12X2.4 |
$9.20
Order
|
|
|
| 39.0 | 190171 | SPACER |
$29.93
Order
|
|
|
| 40.0 | 192069 | O.R. GASKET |
$9.20
Order
|
|

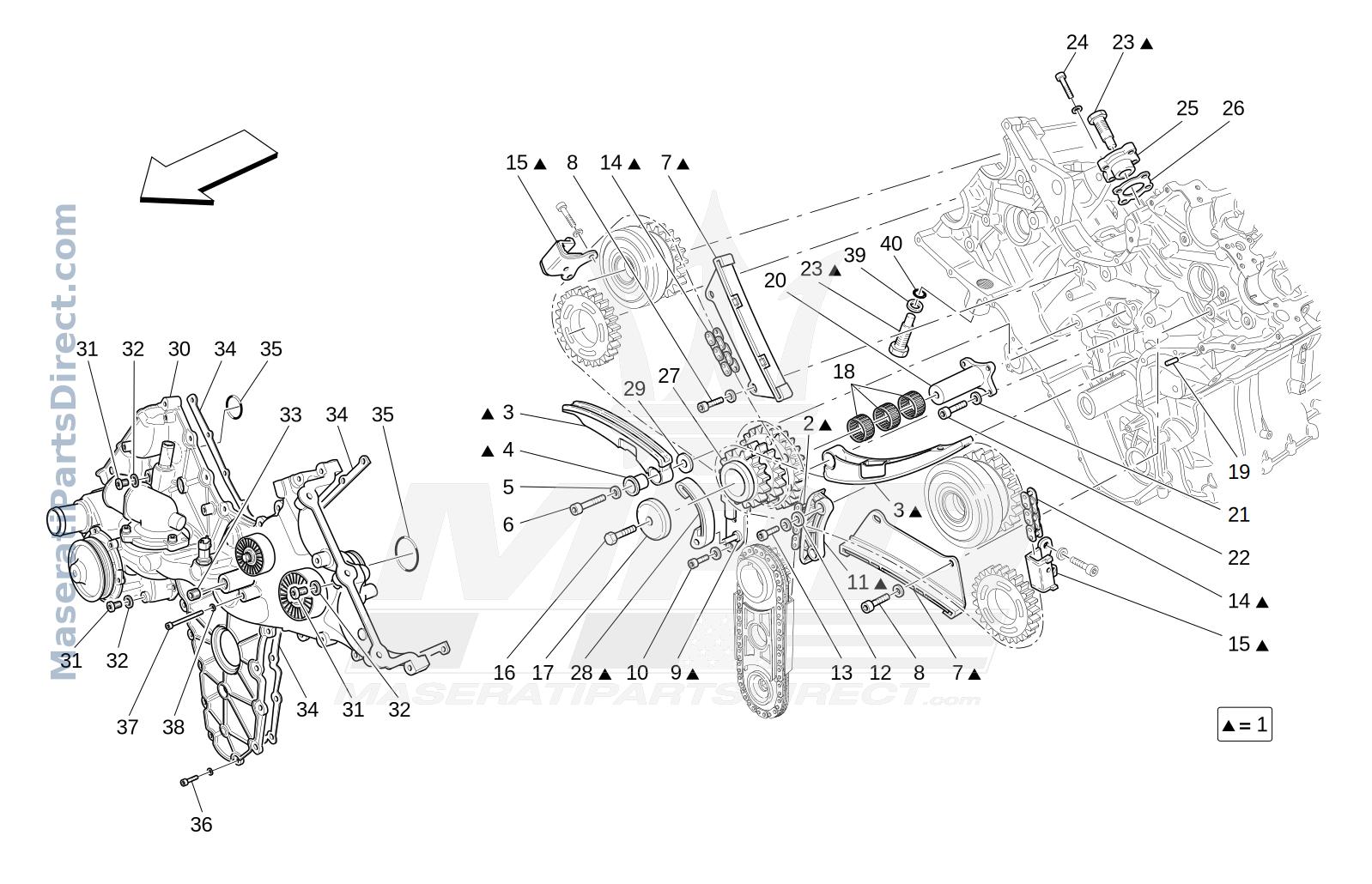

| SVG Path | GranT2015-01-24-1-timing-M145_S.svg |
|---|---|
