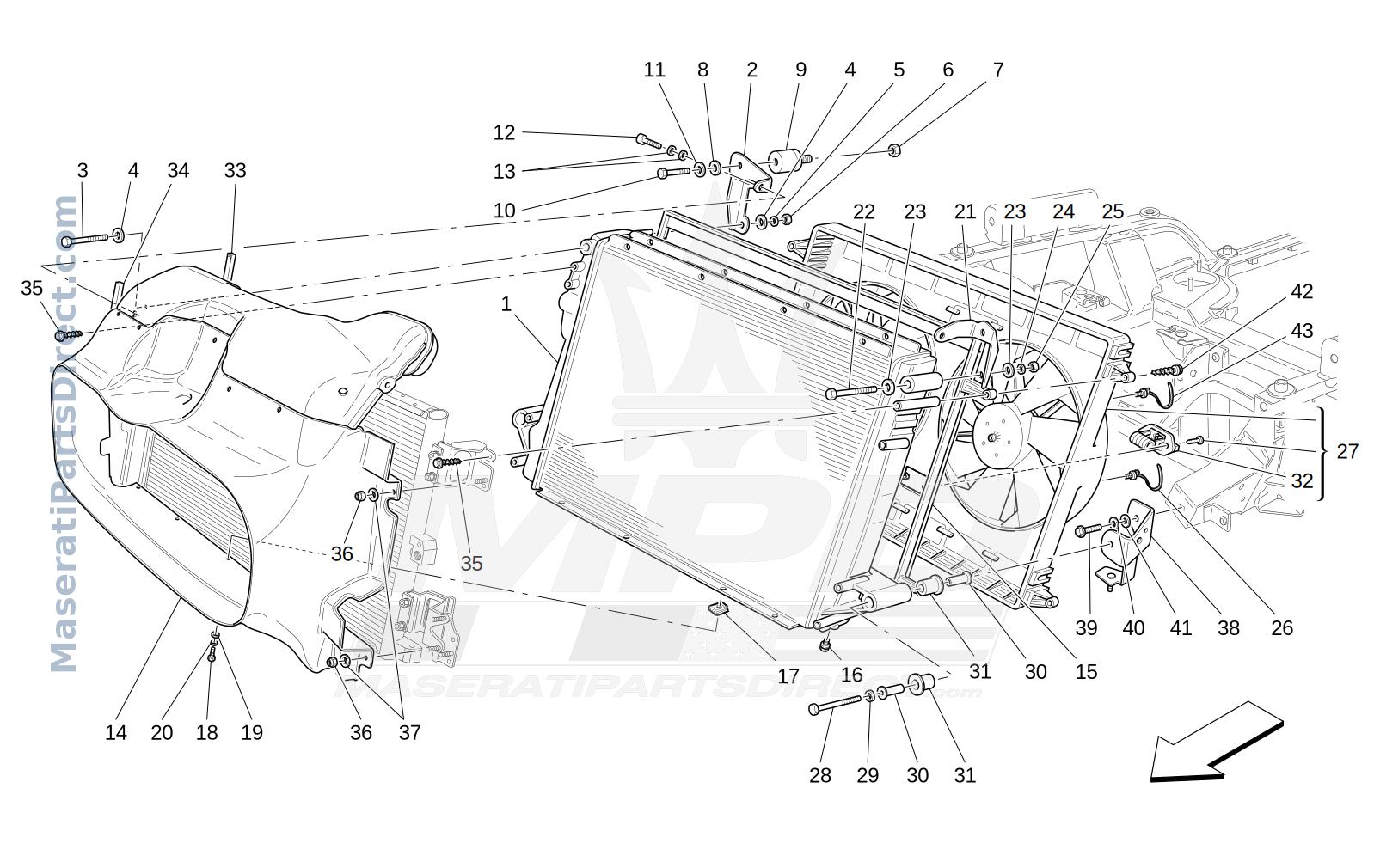

01.70 - 2 - COOLING: AIR RADIATORS AND DUCTS

Select a part from the list to view details

Select a part from the list to view dimensions

Select a part from the list to view fitment information

Parts List

Ref	Part Number	Description	Price
1.0	220979	WATER RADIATOR	$1,453.51 Order
2.0	244202	RH BRACKET FOR UPPER FIXING WATER RADIATOR	$117.11 Order
3.0	16044624	SCREW	$13.58 Order
4.0	12646724	WASHER	$9.20 Order
5.0	12601379	WASHER	$8.64 Order
6.0	16100814	NUT	$8.64 Order
7.0	14058511	NUT	$9.20 Order
8.0	14496524	WASHERD. 8.40-17 X1.6	$6.93 Order
9.0	181114	PAD	$34.92 Order
10.0	16043021	SCREW	$8.64 Order
11.0	12601379	WASHER	$8.64 Order
12.0	14305724	SCREW	$6.93 Order
13.0	14498804	WASHERD. 6,40-16.3 X1	$6.21 Order
14.0	235203	RADIATOR AIR DUCT	$727.55 Order
15.0	242693	HOOD FANS AIR DUCT	$340.28 Order
16.0	980139638	PLUG	$25.23 Order
17.0	67257100	BRACKET	$11.52 Order
18.0	14304624	SCREW	$8.00 Order
19.0	12601174	WASHERD.5.3-11X0.5	$9.72 Order
20.0	13577724	WASHER	$11.52 Order
21.0	244165	LH BRACKET FOR UPPER FIXING WATER RADIATOR	$95.45 Order
22.0	16044624	SCREW	$13.58 Order
23.0	12646724	WASHER	$9.20 Order
24.0	12601379	WASHER	$8.64 Order
25.0	16100814	NUT	$8.64 Order
26.0	268185	CLAMP	$11.52 Order
27.0	263143	COMPLETE ELECTROFANS SET	$1,363.17 Order
28.0	16044824	SCREW	$9.20 Order
29.0	12646724	WASHER	$9.20 Order
30.0	197585	BUSH	$23.34 Order
31.0	197584	RUBBER BUSHING	$14.28 Order
32.0	263140	RESISTOR	$226.31 Order
33.0	233535	PROFILE	$11.40 Order
34.0	233735	PROFILE	$11.40 Order
35.0	15699804	SCREW	$8.64 Order
36.0	102741	NUT	$7.65 Order
37.0	12643704	WASHER	$11.52 Order
38.0	266658	LH LOWER SUPPORT	$131.49 Order
38.0	266659	RH LOWER SUPPORT	$122.49 Order
39.0	16043534	SCREW	$8.64 Order
40.0	10519624	WASHERD. 8,15-17 X2	$6.21 Order
41.0	12601379	WASHER	$8.64 Order
42.0	15698304	SCREW	$11.08 Order
43.0	268185	CLAMP	$11.52 Order
