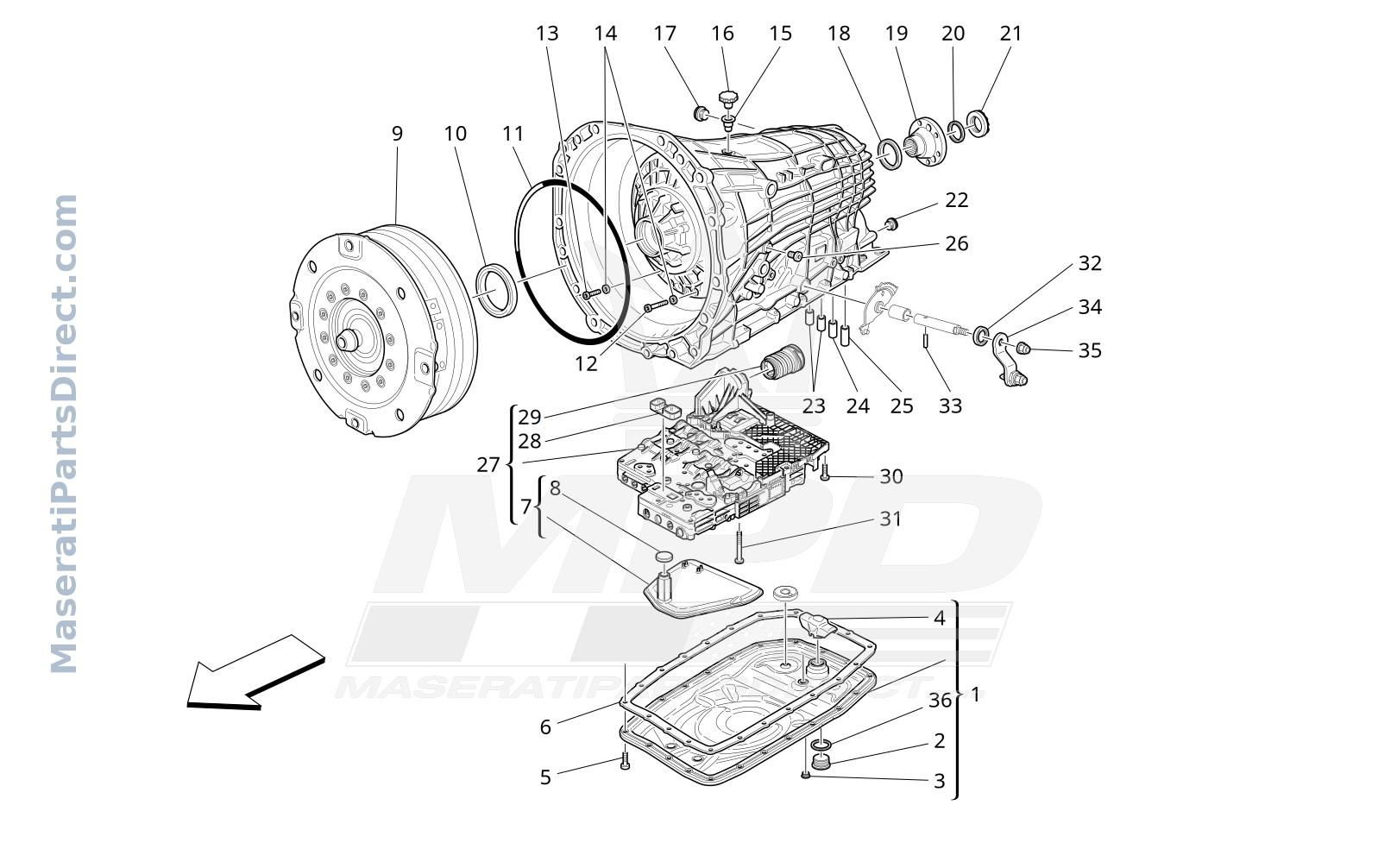

03.10 - 2 - GEARBOX HOUSINGS

Select a part from the list to view details

Select a part from the list to view dimensions

Select a part from the list to view fitment information

Parts List

Ref	Part Number	Description	Price
1.0	223709	OIL SUMP ASSEMBLY	$985.33 Order
2.0	227352	PLUG	$139.92 Order
3.0	227357	PLUG	$55.63 Order
4.0	228051	PLUG	$21.93 Order
5.0	227353	SCREW	$19.39 Order
6.0	227350	GASKET	$185.83 Order
7.0	228048	COMPLETE OIL FILTER	$208.28 Order
8.0	227351	O.R. GASKET	$32.56 Order
9.0	227379	CONVERTER	$4,715.76 Order
10.0	227374	SEAL RING	$53.13 Order
11.0	227376	O.R. GASKET	$271.01 Order
12.0	227375	SCREW	$26.13 Order
13.0	228052	SCREW	$21.72 Order
14.0	227377	WASHER	$23.43 Order
15.0	227369	DELIVERY PIPE	$31.75 Order
16.0	227370	PROTECTIVE SHEATH	$21.72 Order
17.0	227358	PLUG	$58.13 Order
18.0	227360	SEAL RING	$60.63 Order
19.0	223712	OUTPUT FLANGE	$664.71 Order
20.0	227361	SEAL RING	$48.03 Order
21.0	227362	NUT	$26.56 Order
22.0	227363	PLUG	$28.36 Order
23.0	227371	SEALING SLEEVE	$25.38 Order
24.0	227372	SEALING SLEEVE	$31.06 Order
25.0	227373	SEALING SLEEVE	$38.42 Order
26.0	227357	PLUG	$55.63 Order
27.0	262774	MECHATRONIC ASSEMBLY	$5,882.20 Order
28.0	227365	ADAPTER	$33.88 Order
29.0	227366	SLIDING GUIDE	$137.04 Order
30.0	227368	SCREW	$21.93 Order
31.0	227367	SCREW	$23.66 Order
32.0	227355	SEAL RING	$48.03 Order
33.0	227356	FLEXIBLE PIN	$23.43 Order
34.0	222378	GEARBOX CONTROL LEVER	$436.44 Order
35.0	161473	NUT	$84.51 Order
36.0	247479	GASKET	$21.03 Order
