| Ref | Part Number | Description | Price | Qty | |
|---|---|---|---|---|---|
| 0.0 | 980139932 | MOONWOOD KIT |
$6,668.67
Order
|
|
|
| 1.0 | 86485100 | LH FRONT DOOR ASSEMBLY |
$8,501.13
Order
|
|
|
| 1.0 | 86484900 | RH FRONT DOOR ASSEMBLY |
$8,501.13
Order
|
|
|
| 2.0 | 95961.... | COMPLETE L.H. DOOR PANEL MOULDING |
$0.00
Order
|
|
|
| 2.0 | 9595700.. | COMPLETE L.H. DOOR PANEL MOULDING |
$0.00
Order
|
|
|
| 2.0 | 95960.... | COMPLETE R.H. DOOR PANEL MOULDING |
$0.00
Order
|
|
|
| 2.0 | 9595600.. | COMPLETE R.H. DOOR PANEL MOULDING |
$0.00
Order
|
|
|
| 4.0 | custom | LH ARM-REST |
$0.00
Order
|
|
|
| 4.0 | custom | RH ARM-REST |
$0.00
Order
|
|
|
| 5.0 | custom | LH POCKET |
$0.00
Order
|
|
|
| 5.0 | custom | RH POCKET |
$0.00
Order
|
|
|
| 6.0 | 68257300 | LH MAP POCKET LINING |
$231.19
Order
|
|
|
| 6.0 | 68247700 | RH MAP POCKET LINING |
$218.16
Order
|
|
|
| 7.0 | custom | LOUD SPEAKER GRILL |
$0.00
Order
|
|
|
| 8.0 | 46427292 | LH REFLECTOR |
$37.72
Order
|
|
|
| 8.0 | 46427291 | RH REFLECTOR |
$41.58
Order
|
|
|
| 9.0 | 98682.... | LH HANDHOLD FRAME |
$0.00
Order
|
|
|
| 9.0 | 96879.... | LH HANDHOLD FRAME |
$0.00
Order
|
|
|
| 9.0 | 98681.... | RH HANDLE |
$0.00
Order
|
|
|
| 9.0 | 96878.... | RH HANDLE |
$0.00
Order
|
|
|
| 10.0 | 699141.. | LH COVER |
$0.00
Order
|
|
|
| 10.0 | 699117.. | RH COVER |
$0.00
Order
|
|
|
| 12.0 | 68930300 | LH BRACKET |
$80.70
Order
|
|
|
| 12.0 | 68930200 | RH BRACKET |
$129.06
Order
|
|
|
| 13.0 | 80055300 | LH INNER MOULDING |
$0.00
Order
|
|
|
| 13.0 | 80055200 | RH INNER MOULDING |
$317.19
Order
|
|
|
| 14.0 | 82215000 | LH WATER SHIELD IN THE DOOR |
$205.66
Order
|
|
|
| 14.0 | 82215100 | RH WATER SHIELD IN THE DOOR |
$129.76
Order
|
|
|
| 15.0 | 699142.. | COMPLETE L.H. FRONT MOULDING |
$0.00
Order
|
|
|
| 15.0 | 802514.. | COMPLETE L.H. FRONT MOULDING |
$0.00
Order
|
|
|
| 15.0 | 824102.. | COMPLETE L.H. FRONT MOULDING |
$0.00
Order
|
|
|
| 15.0 | 800543.. | COMPLETE L.H. FRONT MOULDING |
$0.00
Order
|
|
|
| 15.0 | 699118.. | COMPLETE R.H. FRONT MOULDING |
$0.00
Order
|
|
|
| 15.0 | 802513.. | COMPLETE R.H. FRONT MOULDING |
$0.00
Order
|
|
|
| 15.0 | 824101.. | COMPLETE R.H. FRONT MOULDING |
$0.00
Order
|
|
|
| 15.0 | 800539.. | COMPLETE R.H. FRONT MOULDING |
$0.00
Order
|
|
|
| 16.0 | 80090900 | LH DOOR MIRROR GASKET |
$642.29
Order
|
|
|
| 16.0 | 80090800 | RH DOOR MIRROR GASKET |
$667.07
Order
|
|
|
| 17.0 | 80091300 | LH INNER GLASS SCRAPER GASKET |
$700.57
Order
|
|
|
| 17.0 | 80091200 | RH INNER GLASS SCRAPER GASKET |
$648.72
Order
|
|
|
| 18.0 | 82076100 | LH OUTER GLASS SCRAPER GASKET |
$805.37
Order
|
|
|
| 18.0 | 68365400 | LH OUTER GLASS SCRAPER GASKET |
$579.39
Order
|
|
|
| 18.0 | 82076000 | RH OUTER GLASS SCRAPER GASKET |
$815.61
Order
|
|
|
| 18.0 | 68365300 | RH OUTER GLASS SCRAPER GASKET |
$579.39
Order
|
|
|
| 19.0 | 67935100 | PLUG |
$25.46
Order
|
|
|
| 20.0 | 80307700 | LH PLUG |
$23.55
Order
|
|
|
| 20.0 | 80307600 | RH PLUG |
$25.67
Order
|
|
|
| 21.0 | 273981 | UNDER DOOR LAMP |
$50.25
Order
|
|
|
| 22.0 | 67874500 | PIN |
$8.28
In Stock
|
|
|
| 22.0 | 980145155 | PIN |
$14.00
Order
|
|
|
| 23.0 | 46408953 | BLOCK |
$8.00
Order
|
|
|
| 24.0 | 980145343 | GASKET |
$44.69
Order
|
|
|
| 25.0 | 980145342 | GASKET |
$41.83
Order
|
|
|
| 26.0 | 14506987 | RUBBER |
$13.58
Order
|
|
|
| 27.0 | 68942400 | PLUG |
$20.28
Order
|
|
|
| 28.0 | 84946900 | FELT |
$0.00
Order
|
|
|
| 29.0 | 15783501 | SCREW |
$9.84
Order
|
|

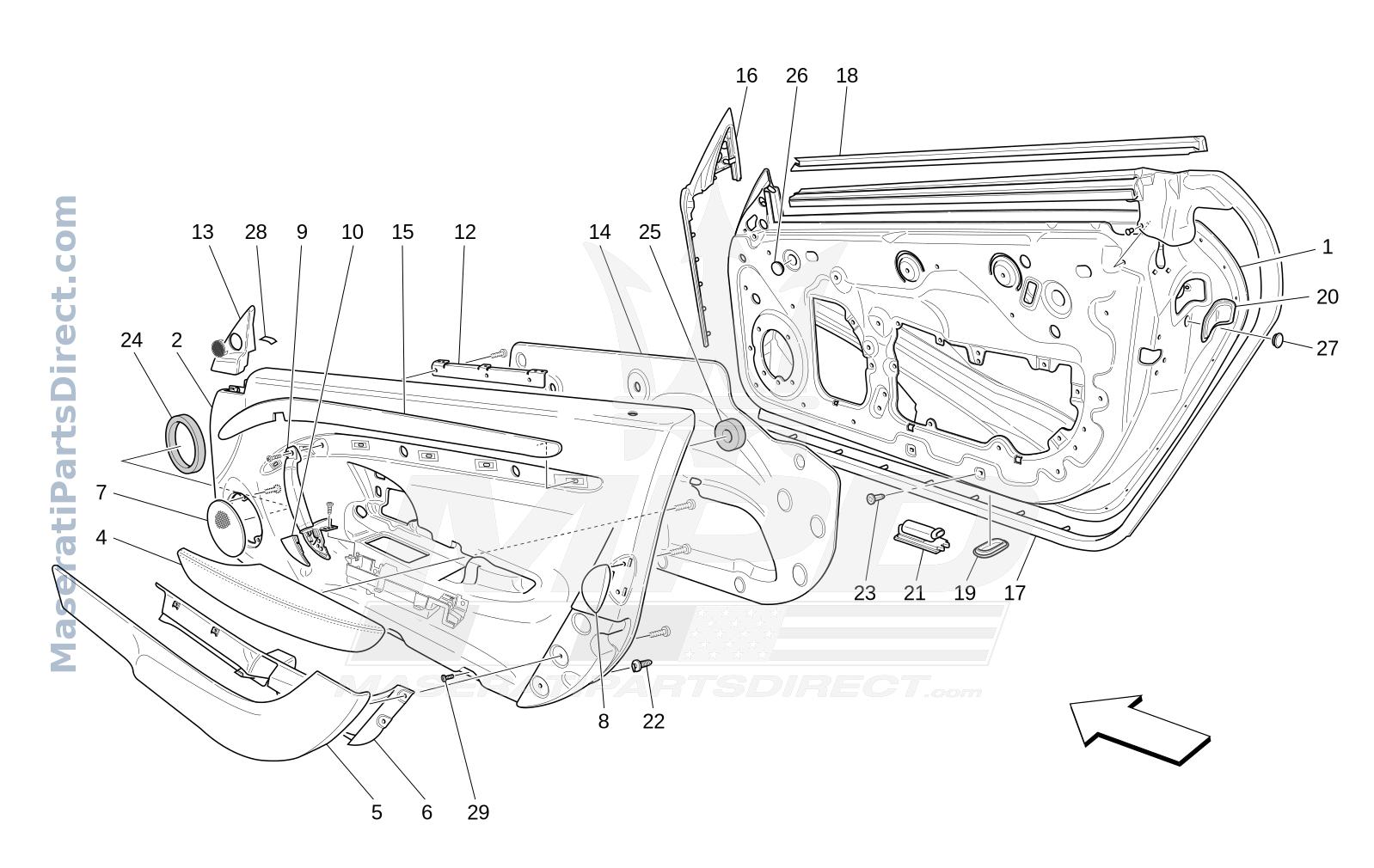

| SVG Path | GranT2015-09-30-2-front-doors-trim-panels-M145_S.svg |
|---|---|
| SVG Width | 799.000000 |
| SVG Height | 505.000000 |
