| Ref | Part Number | Description | Price | Qty | |
|---|---|---|---|---|---|
| 0.0 | 980139918 | LH REAR SUSPENSION KIT |
$2,886.07
Order
|
|
|
| 0.0 | 980139916 | RH REAR SUSPENSION KIT |
$2,890.53
Order
|
|
|
| 1.0 | - | LH REAR HUB HOLDER ASSEMBLYCode is not available separately, order code complete suspension kit |
$0.00
Order
|
|
|
| 1.0 | - | RH REAR HUB HOLDER ASSEMBLYCode is not available separately, order code complete suspension kit |
$0.00
Order
|
|
|
| 2.0 | - | COMPLETE L.H. REAR UPPER LEVERCode is not available separately, order code complete suspension kit |
$0.00
Order
|
|
|
| 2.0 | - | COMPLETE R.H. REAR UPPER LEVERCode is not available separately, order code complete suspension kit |
$0.00
Order
|
|
|
| 3.0 | 980139890 | REAR SUSPENSION BUSHING KIT |
$568.37
Order
|
|
|
| 4.0 | 15541334 | SCREW |
$20.76
Order
|
|
|
| 5.0 | 194444 | WASHER |
$11.15
Order
|
|
|
| 6.0 | 198043 | SPACER |
$16.17
Order
|
|
|
| 6.0 | 198044 | SPACER |
$15.89
Order
|
|
|
| 6.0 | 198045 | SPACER |
$16.45
Order
|
|
|
| 6.0 | 198046 | SPACER |
$10.14
Order
|
|
|
| 6.0 | 198047 | SPACER |
$10.14
Order
|
|
|
| 7.0 | 14496721 | WASHER |
$6.21
Order
|
|
|
| 8.0 | 102825 | NUT |
$11.52
Order
|
|
|
| 9.0 | 245240 | NUT |
$30.83
Order
|
|
|
| 10.0 | - | COMPLETE L.H. FRONT REAR LEVERCode is not available separately, order code complete suspension kit |
$0.00
Order
|
|
|
| 10.0 | - | COMPLETE R.H. REAR LOWER LEVERCode is not available separately, order code complete suspension kit |
$0.00
Order
|
|
|
| 12.0 | 260766 | ECCENTRIC SCREW |
$97.06
Order
|
|
|
| 13.0 | 194445 | WASHER |
$10.76
Order
|
|
|
| 14.0 | 198038 | SPACER |
$15.89
Order
|
|
|
| 14.0 | 198039 | SPACER |
$15.37
Order
|
|
|
| 14.0 | 198040 | SPACER |
$15.09
In Stock
|
|
|
| 14.0 | 198041 | SPACER |
$13.58
Order
|
|
|
| 14.0 | 198042 | SPACER |
$16.70
In Stock
|
|
|
| 14.0 | 295191 | SPACER |
$13.88
Order
|
|
|
| 15.0 | 240877 | WASHER |
$15.65
Order
|
|
|
| 16.0 | 203795 | NUT |
$12.41
In Stock
|
|
|
| 17.0 | 245240 | NUT |
$30.83
Order
|
|
|
| 17.0 | 247308 | NUT FOR SUSPENSION LEVER ADJUSTING |
$39.45
Order
|
|
|
| 18.0 | 276636 | TIE-ROD FOR TOE-IN ADJUSTMENT |
$966.07
Order
|
|
|
| 19.0 | 203657 | NUT |
$11.10
Order
|
|
|
| 20.0 | 12626224 | WASHER |
$7.65
Order
|
|
|
| 21.0 | 203657 | NUT |
$11.10
Order
|
|
|
| 22.0 | 12626224 | WASHER |
$7.65
Order
|
|
|
| 23.0 | custom | REAR STABILIZER BAR |
$0.00
Order
|
|
|
| 24.0 | custom | BAR BUFFER |
$0.00
Order
|
|
|
| 25.0 | 191221 | PAD FASTENING PLATE |
$88.01
Order
|
|
|
| 26.0 | 104030 | NUT |
$10.40
Order
|
|
|
| 27.0 | 14496524 | WASHERD. 8.40-17 X1.6 |
$6.93
Order
|
|
|
| 28.0 | 259572 | BALL TIE ROD |
$156.46
$132.99
In Stock
|
|
|
| 28.0 | 259573 | BALL TIE ROD |
$147.07
Order
|
|
|
| 29.0 | 102742 | NUT |
$9.84
Order
|
|
|
| 30.0 | 12601474 | WASHERD.10,50-21X 1,0 |
$6.21
Order
|
|
|
| 31.0 | 228958 | TIE ROD FOR LIGHT ADJUSTING POTENTIOMETER |
$149.38
Order
|
|
|
| 32.0 | 102741 | NUT |
$7.65
Order
|
|
|
| 33.0 | 14498824 | WASHERD.6.4-16.3X1 |
$9.20
Order
|
|
|
| 34.0 | 16324034 | SCREW |
$10.80
Order
|
|
|
| 35.0 | 204008 | STUD |
$149.40
Order
|
|
|
| 36.0 | 240877 | WASHER |
$15.65
Order
|
|
|
| 37.0 | 203795 | NUT |
$12.41
In Stock
|
|
|
| 38.0 | 204010 | NUT |
$21.48
Order
|
|
|
| 39.0 | 386600416 | JOINT PROTECTION |
$21.52
Order
|
|
|
| 40.0 | 386600416 | JOINT PROTECTION |
$21.52
Order
|
|
|
| 41.0 | 222203 | SPACER |
$52.60
Order
|
|
|
| 42.0 | 150738 | CLIP |
$11.52
Order
|
|
|
| 43.0 | 231274 | BRACKET |
$36.88
Order
|
|

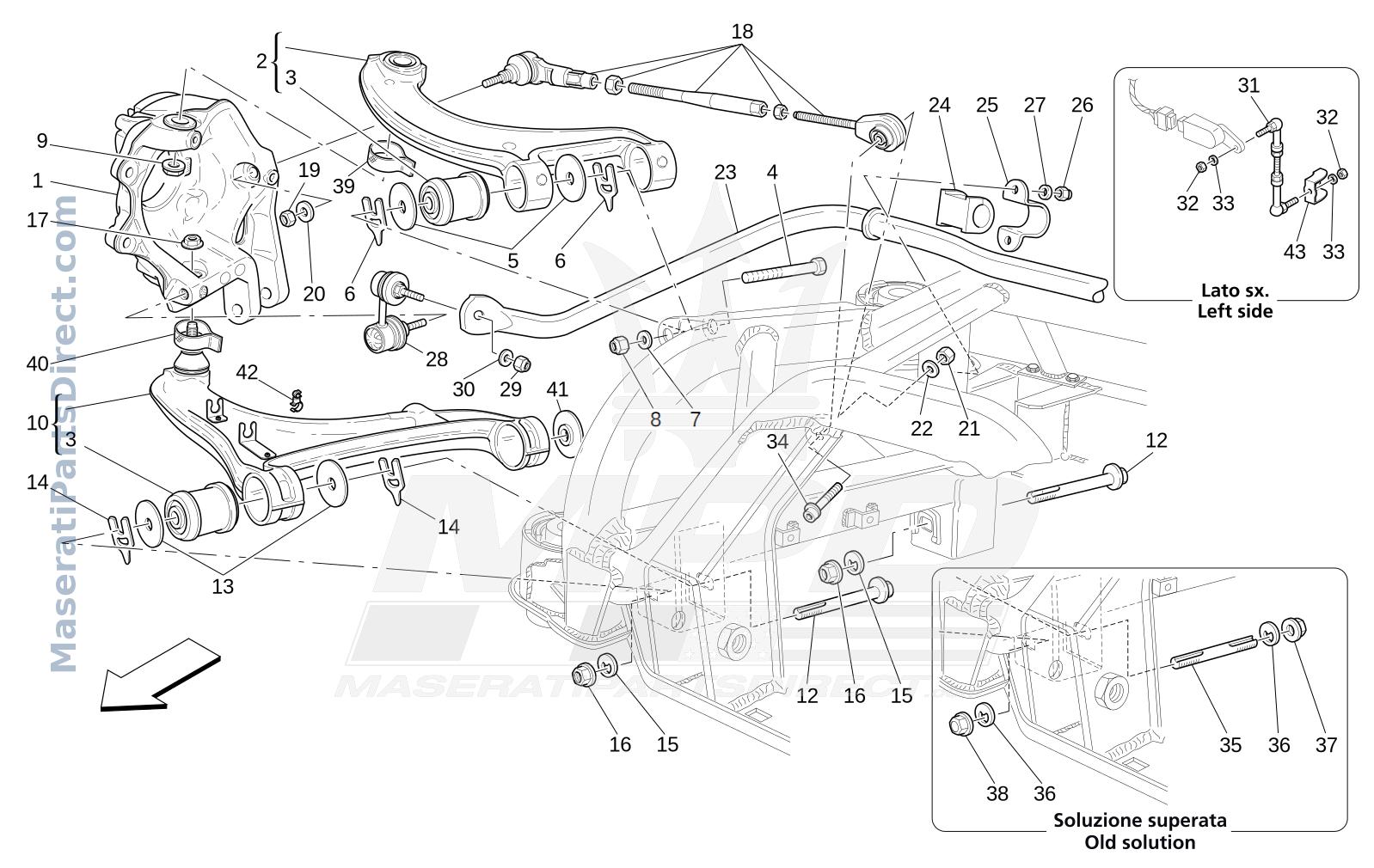

| SVG Path | GranT2016-06-20-1-rear-suspension-MC_S.svg |
|---|---|
