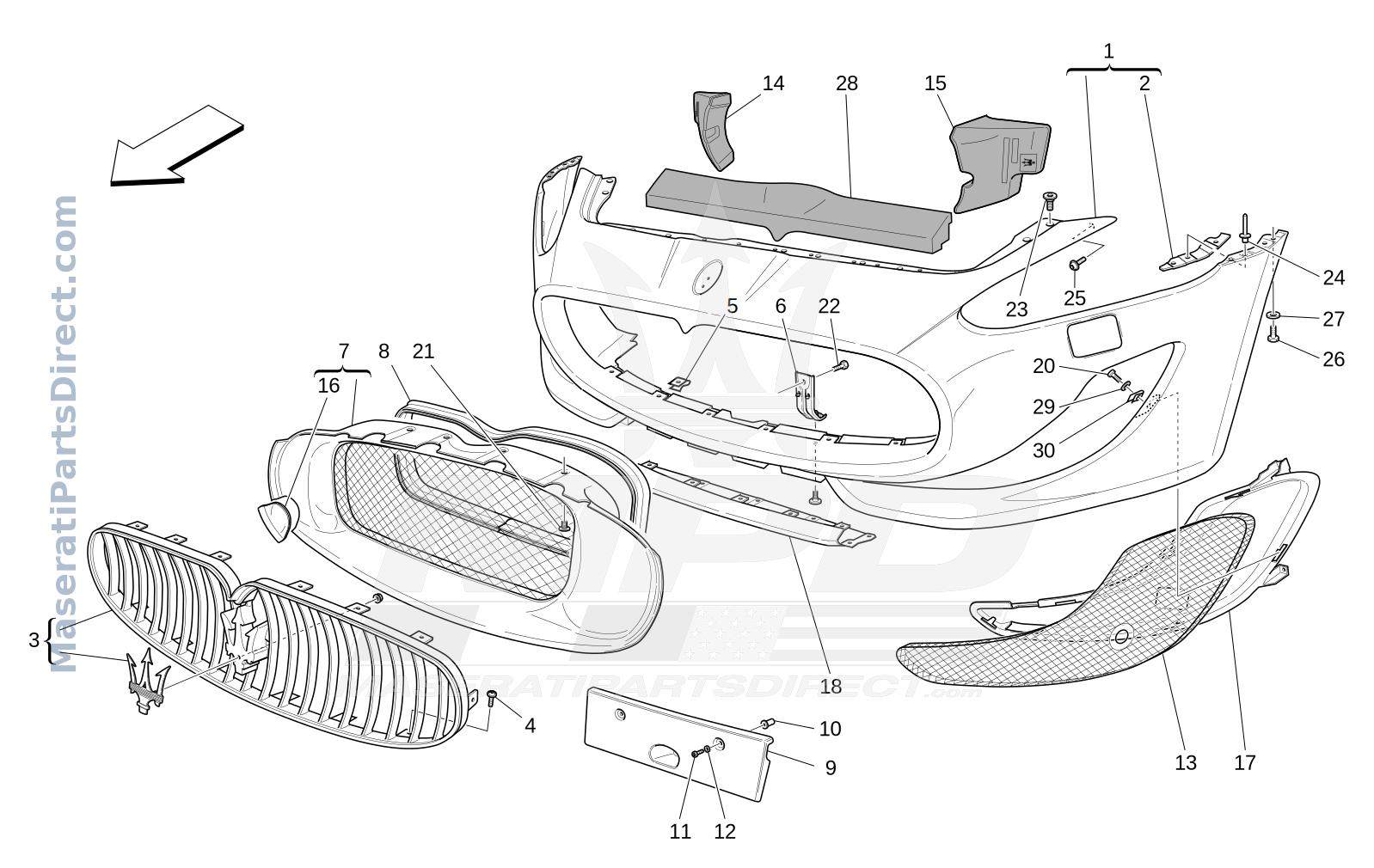

09.10 - 2 - FRONT BUMPER

Select a part from the list to view details

Select a part from the list to view dimensions

Select a part from the list to view fitment information

Parts List

Ref	Part Number	Description	Price
1.0	980145442	COMPLETE FRONT BUMPER	$5,550.21 Order
2.0	80252500	LH BRACKET	$291.37 Order
2.0	80252400	RH BRACKET	$291.37 Order
3.0	81131500	FRONT GRILLE ASSEMBLY	$1,091.26 Order
3.0	84396700 Replaced by: #85110700.0	FRONT GRILLE ASSEMBLY	$0.00 Order
3.0	85110700	FRONT GRILLE ASSEMBLY	$1,371.42 Order
4.0	81145000	SCREWM 5	$87.40 Order
4.0	83093600	SCREWM 5	$23.90 Order
5.0	67278400	BRACKET	$9.73 Order
6.0	68635500	BRACKET	$49.06 Order
7.0	80305200	AIR DUCT	$930.07 Order
8.0	80059800	GASKET	$386.40 Order
9.0	84720700	FRONT LICENSE PLATE HOLDER	$103.09 Order
10.0	66412700	BUSHING	$11.55 Order
11.0	13274377	SCREWTCIC PZ M 5X 18	$8.00 Order
12.0	12637807	WASHERD 5.15-11X1	$8.28 Order
13.0	84814500	LH FRONT GRILL	$588.67 Order
13.0	84814400	RH FRONT GRILL	$618.36 Order
14.0	80305000	FRONT BUMPER RIGHT SIDE SHOCK ABSORBER	$83.97 Order
15.0	80305100	FRONT BUMPER LEFT SIDE SHOCK ABSORBER	$83.97 Order
16.0	80791400	TOW HOOK PLUG	$91.56 Order
17.0	84814700	LH GRILL FRAME	$112.65 Order
17.0	84814600	RH GRILL FRAME	$112.65 Order
18.0	84720400	FRONT SPOILER	$923.32 Order
18.0	84720500	FRONT SPOILER	$2,130.80 Order
20.0	297883	SCREW	$11.85 Order
21.0	51810310	SCREW	$11.72 Order
22.0	16286024	SCREWM 6X 16	$11.10 Order
23.0	51810310	SCREW	$11.72 Order
24.0	14642791	RIVET	$9.84 Order
25.0	69089100	SCREWM 5	$12.11 Order
26.0	10902524	SCREWTE M 6X 22	$6.21 Order
27.0	12643724	WASHERD 6,15-18X 1,5	$6.21 Order
28.0	80055900	UPPER CENTRAL FRONT BUMPER SHOCK ABSORBER	$92.28 Order
29.0	12637801	WASHERD. 5,15 -11X 1	$6.21 Order
30.0	14372171	BRACKET	$7.65 Order
