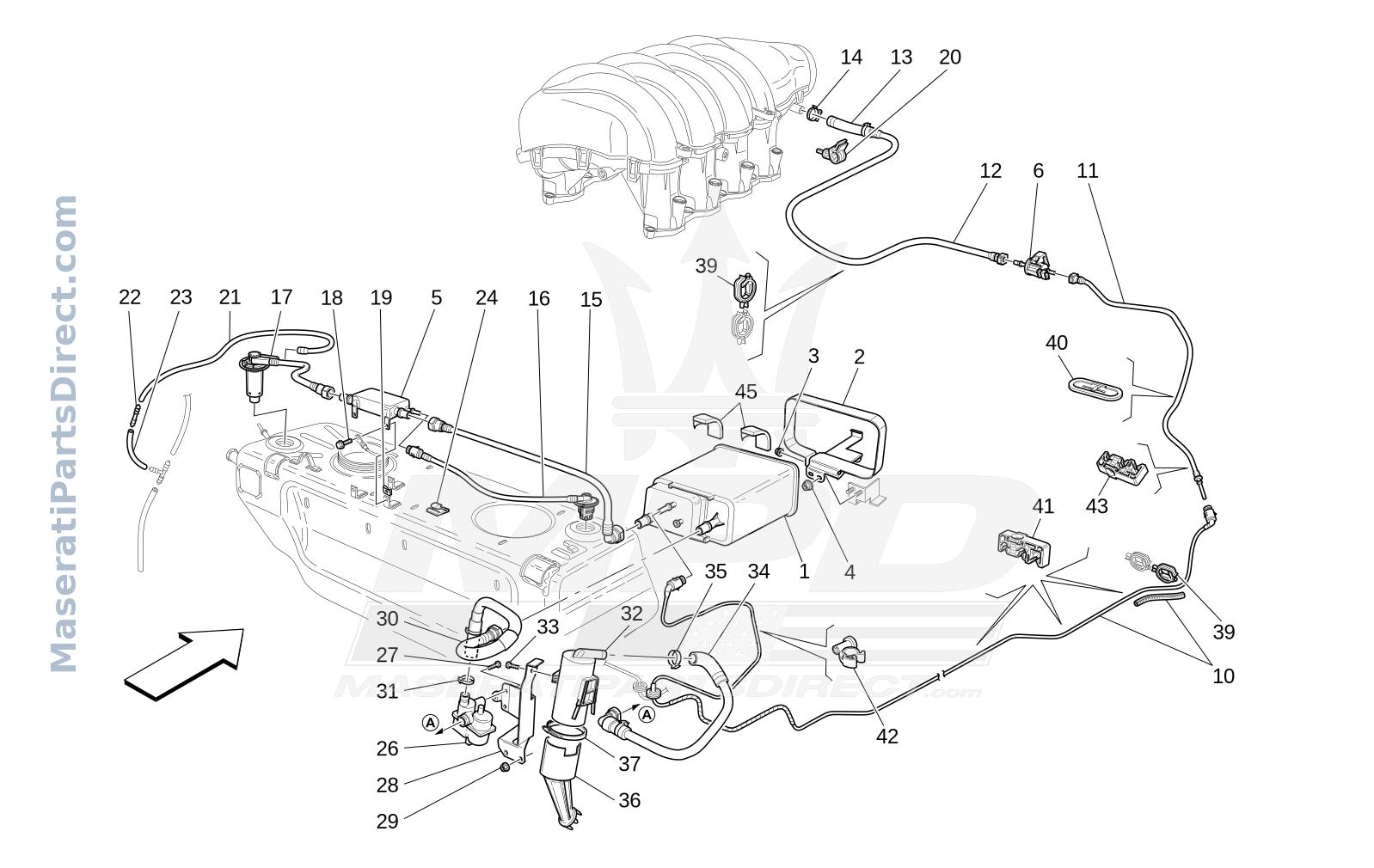

01.44 - 1 - FUEL VAPOUR RECIRCULATION SYSTEM

Select a part from the list to view details

Select a part from the list to view dimensions

Select a part from the list to view fitment information

Parts List

Ref	Part Number	Description	Price
1.0	220074	FUEL VAPOUR FILTER	$224.92 Order
2.0	232806	FUEL VAPOR FILTER SUPPORT BRACKET	$126.47 Order
3.0	14040611	NUT	$8.64 Order
4.0	14040611	NUT	$8.64 Order
5.0	228802	FUEL VAPOUR SEPARATOR	$626.73 Order
6.0	237683	WASHER VALVE	$73.20 In Stock
10.0	216655	PIPE FROM FUEL VAPOUR FILTER TO WHEEL COMPARTMENT	$306.72 Order
11.0	241365	VAPOR PIPE	$1,281.01 Order
12.0	241362	VAPOR PIPE	$2,028.60 Order
13.0	204968	SLEEVE	$779.21 Order
14.0	13433570	SCREW COLLAR	$11.10 Order
15.0	192210	PIPE FROM SEPARATOR TO FUEL VAPOUR FILTER	$1,206.42 Order
16.0	192100	EXHAUST VALVE WITH PIPE	$1,244.62 Order
17.0	217194	MULTIFUNCTION VALVE WITH PIPE	$1,578.78 Order
18.0	16296924	SCREW	$7.65 Order
19.0	14189071	BRACKET	$9.17 Order
20.0	198264	CLIP	$25.67 Order
21.0	228959	PIPE	$72.22 Order
22.0	204955	TWO-WAY UNION	$11.76 Order
23.0	68085100	PIPE	$11.48 Order
24.0	198671	CLIP	$15.89 Order
26.0	251288	DIAGNOSTICS PUMP	$415.44 In Stock
27.0	15958701	SCREW	$8.64 Order
28.0	208567	BRACKET	$80.16 Order
29.0	14040611	NUT	$8.64 Order
30.0	237073	PIPE FROM FUEL VAPOUR FILTER TO DIAGNOSTIC PUMP	$173.10 Order
31.0	13432670	COLLAR	$17.78 Order
32.0	183221	DIAGNOSTICS PUMP FILTER	$28.01 Order
33.0	15958701	SCREW	$8.64 Order
34.0	208569	PIPE FROM OBD PUMP TO FILTER	$233.73 Order
35.0	13433370	COLLAR	$11.10 Order
36.0	205330	AIR INTAKE HOSE FOR DIAGNOSTIC PUMP FILTER	$110.29 Order
37.0	13000890	SCREW COLLAR	$16.70 Order
39.0	191907	CLIP	$18.34 Order
40.0	221727	WATER PIPE GASKET	$23.79 Order
41.0	213603	CLIP	$11.55 Order
42.0	201426	CLIP	$21.24 Order
43.0	195052	CLIP	$10.40 Order
45.0	229260	RUBBER THICKNESS	$12.11 Order
